Description
Specification:
Frequency range: 5-6GHz
DC voltage input range: 12-16v
Cooling method: active magnetic suspension fan
Lithium battery Scope: 3S 4S
Gross weight: 50g
Maximum power consumption: 20W
Maximum input power: 600mW / 27.8dBm
Maximum output power: 2500 mW / + 34 dBm
Box size: 10x10x4cm
Output Connector Type: RP-SMA jack
Input Connector Type: RP-SMA plug
Lithium battery working time reference: 3S 2200mAh: 30 minutes
4S 5200mAh: 90 minutes
Operating temperature: 80°

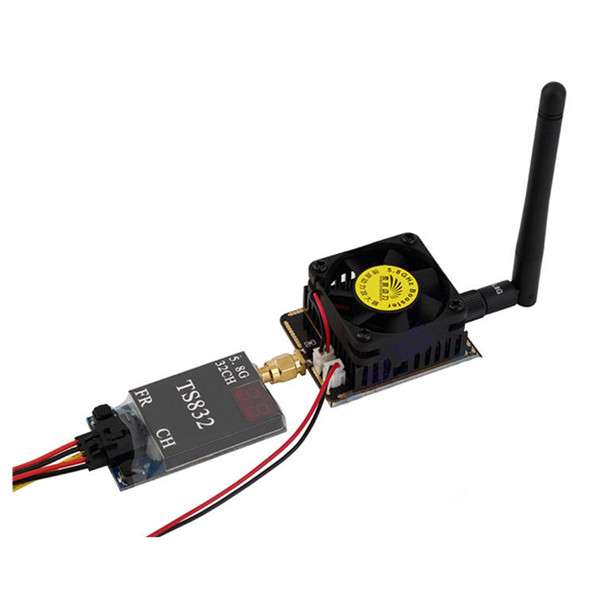

Connect 200mW transmitter, output 3000mW
Connect 600mW transmitter, output 4500mW
Note: can only be used for the transmitter below 600mW, wireless router can not use this amplifier
Package included:

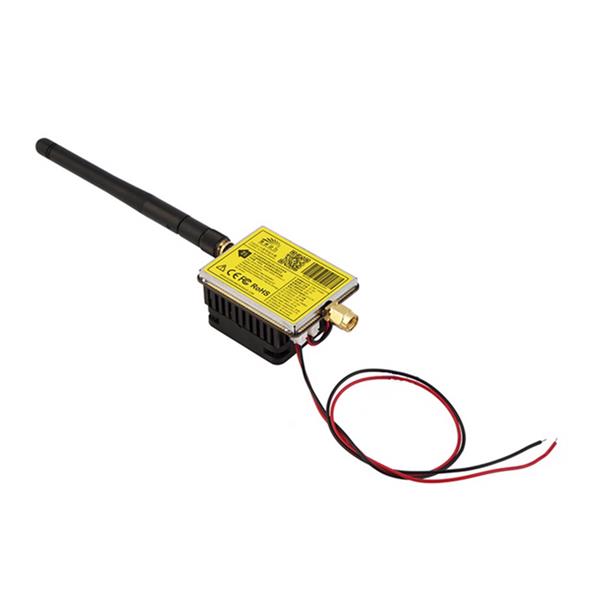

1 x 5.8G 3W/4.5W Signal Enhancement Board Booster Extended Range
