Description

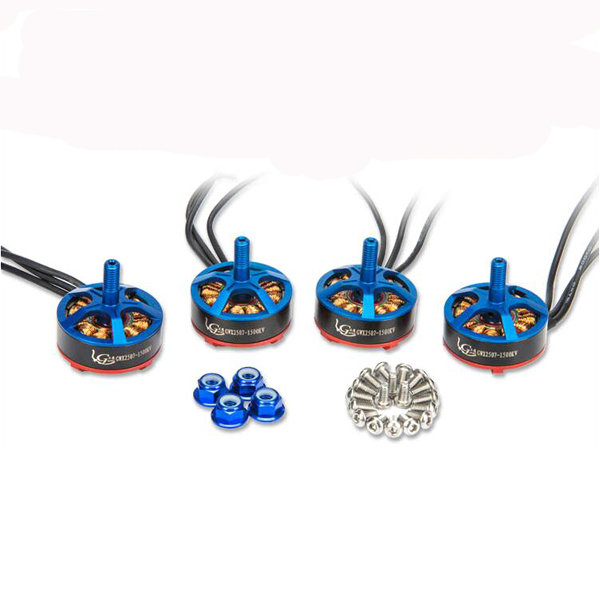

4X Garila G2507 1500KV X2507 2350KV Brushless Motor for RC Drone FPV Racing

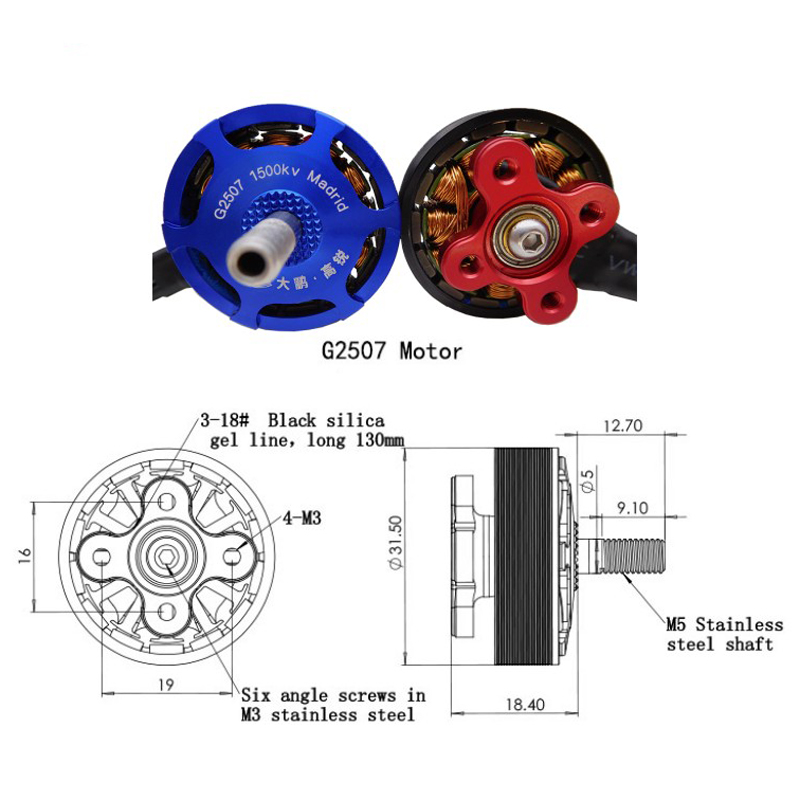

G2507 1500KV
X2507 2350KV
Specification:
Brand name: Garila
Item name: G2507 1500KV X2507 2350KV FPV Racing Brushless Motor
1500KV:
Stator Diameter: 25.0 mm (0.945 in)
Stator Thickness: 7.0 mm(0.276 in)
No. of Stator Arms: 12
Magnet Poles: 14
Motor KV: 1500 RPM / Volt
No-Load Current (Io/12V): 0.91Amps
Motor Resistance (Rm): 61.35mΩ
Maximum Continuous Current: 5 inch 29.4Vx24.9A / 732W (7 Lipo)
6 inch 25.2Vx44.1A/1111.3W(6 Lipo)
7 inch 21Vx47.7A / 1001.7W (5 Lipo)
Weight: 44 Grams (1.552oz)
Outside Diameter: 31.54 mm (1.24 in)
Shaft Diameter(inside): 4.0 mm (0.157 in)
Prop Shaft Diameter(outside): 5.0 mm (0.197 in)
Body Length: 18.4mm (0.724 in)
Overall Shaft Length: 31.1 mm (1.224 in)
Max LiPoly Cell: 4~7s
Prop: 6~7 inch
Drive Frequency: 1.68 kHz
2350KV:
Stator Diameter: 25.0 mm (0.945 in)
Stator Thickness: 7.0 mm(0.236 in)
No. of Stator Arms: 12
Magnet Poles: 14
Motor KV: 2350 RPM / Volt
No-Load Current (Io/12V): 1.97Amps
Motor Resistance (Rm): 32.49mΩ
Weight: 43 Grams (1.517oz)
Outside Diameter: 31.54 mm (1.24 in)
Shaft Diameter(inside): 4.0 mm (0.157 in)
Prop Shaft Diameter(outside): 5.0 mm (0.197 in)
Body Length: 18.5mm (0.73 in)
Overall Shaft Length: 32.5 mm (1.28 in)
Max LiPoly Cell: 4~6s
Prop: 6~7 inch
Drive Frequency: 2.75 kHz
Feature:
7075 Aluminum (Strong and Crashproof)
Easy-dismount Design of Stator and Rotor. (Separable & Replaceable)
Precision Windings.Hollow shaft: Titanium alloy
Flanged lock nut
Package Included:
4 x motor
4 x M5 flanged lock nut. 16+2 x M3*6 screws
