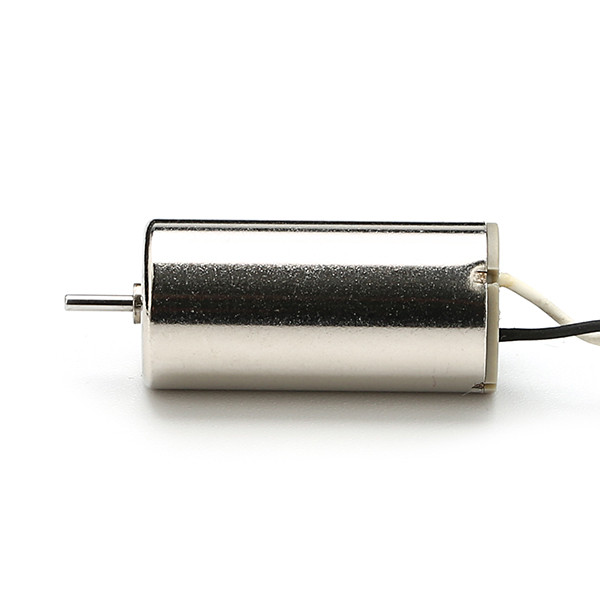

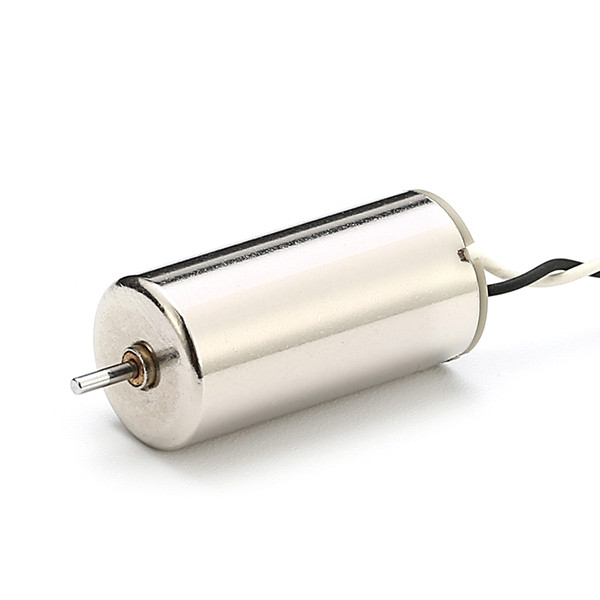

4X Chaoli CL-1020 10x20mm Coreless Motor for 90mm-150mm DIY Micro FPV RC Quadcopter Frame
Description:
Motor Diameter: 10mm
Motor Length: 20mm
Shaft Diameter: 1.0mm
Cable Length: 60mm
Weight: about: 7.5g

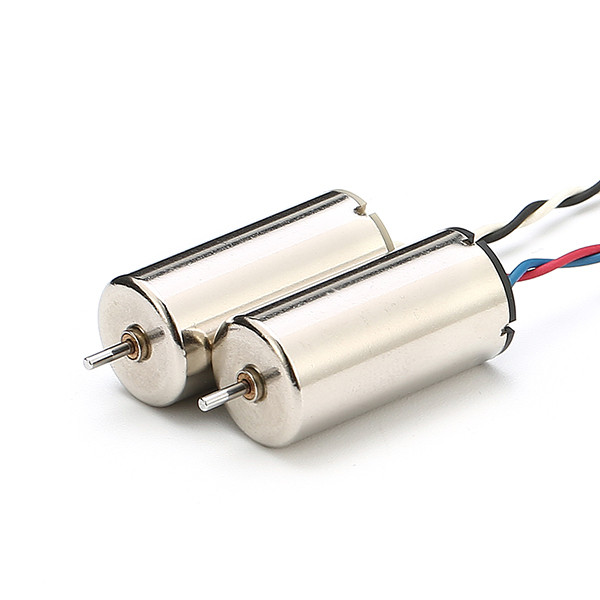

Option: Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)
Quantity: 4 pcs
1.Operating condition
| Rated voltage | 3.7V DC |
| Direction of rotation | CW and CCW |
| Operating voltage range | DC1.5-4.5V DC |
| Output | 0.5W-10W |
| perating temperature range | -10-50°C |
| Motor position | all position |
2.Electrical characteristics
| Items | Speed | Current | Torque | Output |
| No Load | 46000r/min | 180mA | ||
| At Maximun Efficiency | 40897r/min | 1443mA | 9.73 gf.cm 0.954 mN.m |
4.09W |
| Stall | 11563mA | 87.755 gf.cm 8.6 mN.m |
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.
Package included:
2 x CW motor
2 x CCW motor
