Description
RacerStar SIC2207 is special designed for this Summer, SIC means summer is coming , it will definitely bring you a flash cool experience with unique design. The appearance of this new Camouflage motors has been enhanced to make them more attractive based on their aggressive performance. Let’s expecting.

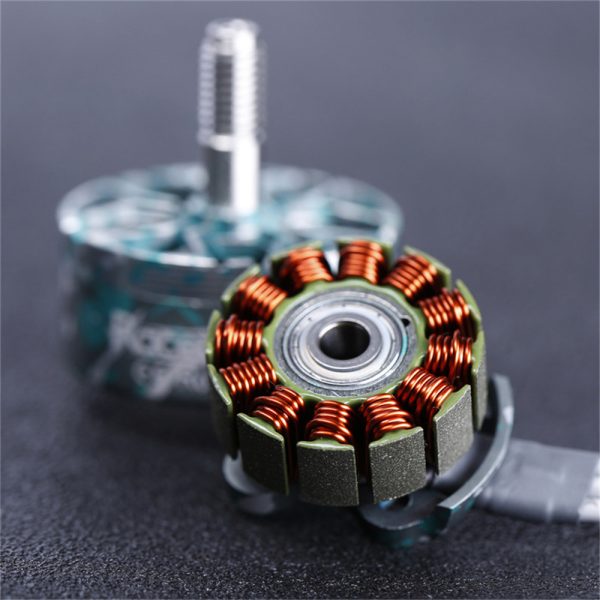

The Racerstar SIC2207 is a high-level motor, it provides the most incredible power and thrust in the lightest weight. The elliptical body, powerful stator with N52H magnets and very small air ga.p makes it with the best performance. The 4mm Titanium alloy shaft and high-quality N52H magnets surrounded by high-temperature resistant windings. The sturdy structure and high-quality materials make racerstar SIC2207 performs like a beast.
Description:
Brand: Racerstar
Item No.: SIC 2207
KV: 2688KV
Quantity: 4PC
| Configu-ration | Stator Diameter | Stator Length | Shaft Diameter | Motor Dimension(Dia.*Len) | Weight(g) | Idle current(10)@10V(A) | No.of Cells(Lipo) | Max Continuous Power(W)180S | Internal Resistance | Max Current(180S) | |
| 2688KV | 12N14P | 22mm | 7mm | 5mm | Φ28.3*19.6 | 33 | ≤2.1 | 3~4s | 723.8 | 50.2mΩ | 45.24A |
Features:
* High-strength 4mm Titanium alloy shaft
* Large heat dissipation holes design (15℃ lower compared to same size motor)
* Crush resistant damping bearing, eliminate vibration effectively
* 50%-80% optimal throttle output, best efficiency
* 160mm cable length for different frames and setups
* CNC high-precision machining 7075 aluminum Bell and Base
* 220℃ Pac.ific heat-resistant copper wire & solid winding
* Electromagnetically matched magnets and stator
* Japanese Kawa.saki 1200 Iron Core
* N52H High-temperature magnets, NSK bearings
* Motor wires protected
* Hex bolt shaft set screw
* Dynamically balanced
Package Included:

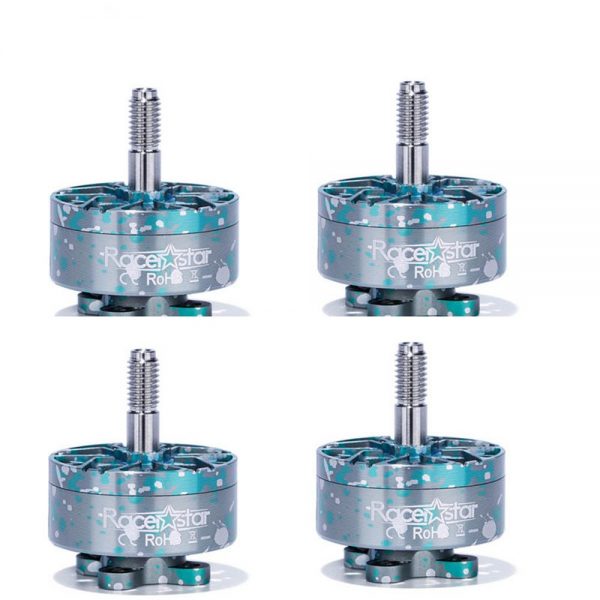

4 X Racerstar 2688KV Motor
4 X Hardware Set Package
