Description
Description:
Brand: JX Servo
Item: PDI-HV5932MG
Dead band: 1μs 1520μs / 330hz
Max PW:500-2500us
Angle: 360°Continuous rotation
Motor: Coreless motor
Operating Speed(6V): 0.12sec / 60°
Operating Speed(8.4V):0.10sec / 60°
Stall Torque: (6.0V) 25.2 kg.cm (239.55oz/in)
Stall Torque: (8.4V) 32.3 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59 X0.80X1.43 in
Weight: 59.3g
Bearing: 2BB

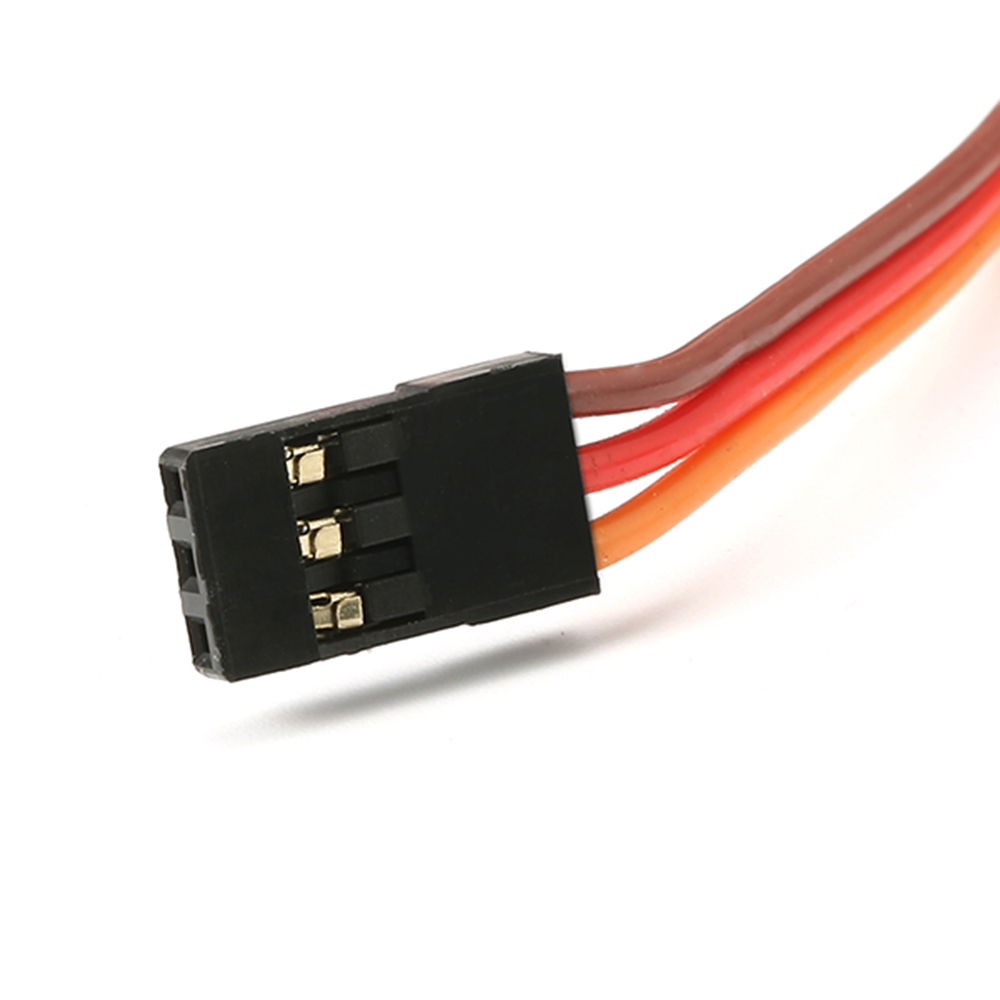

Connector Wire Length: JR 265mm
Gear: 25T (Futaba' universal')
Fearture:
– High-performance and high-voltage standard digital servo.
– High-precision' metal gear.
– Coreless motor and dual ball bearing.
– CNC aluminous mesochite.
Package included:

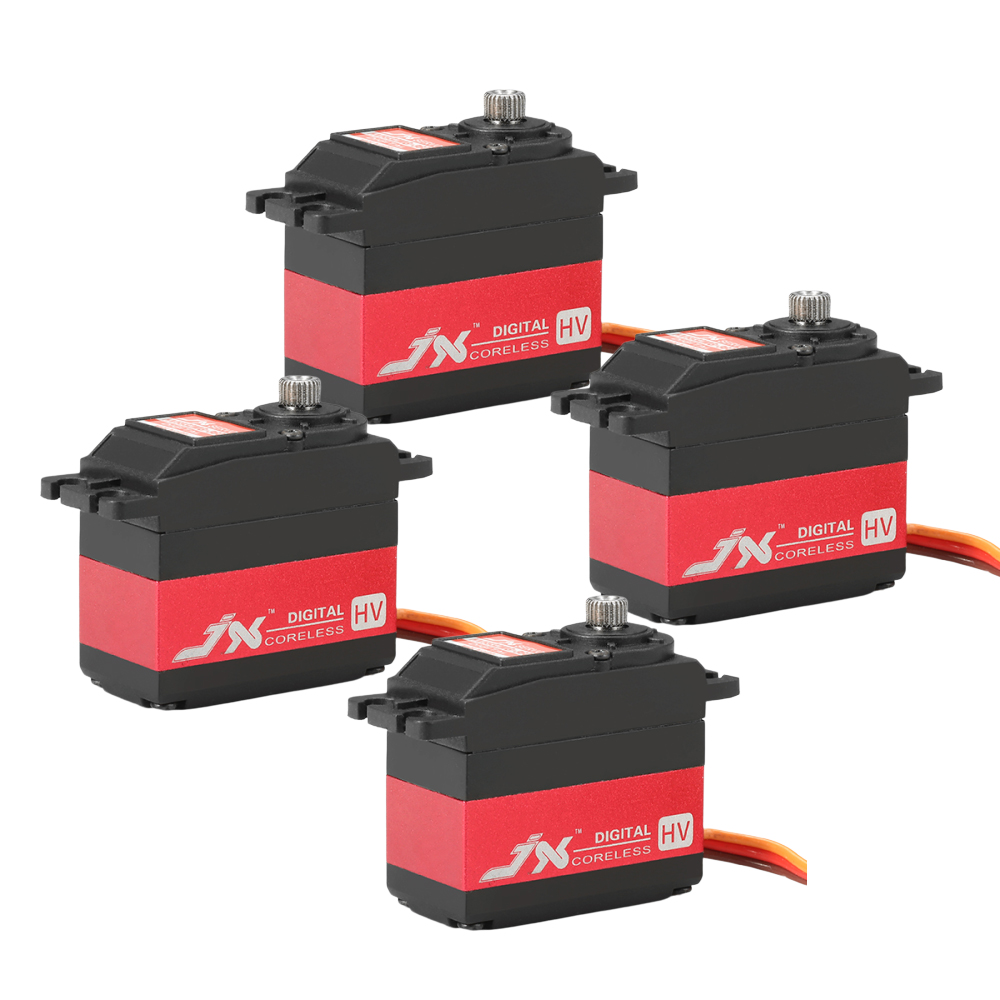

4 x JX Servo PDI-HV5932MG 360° Servo

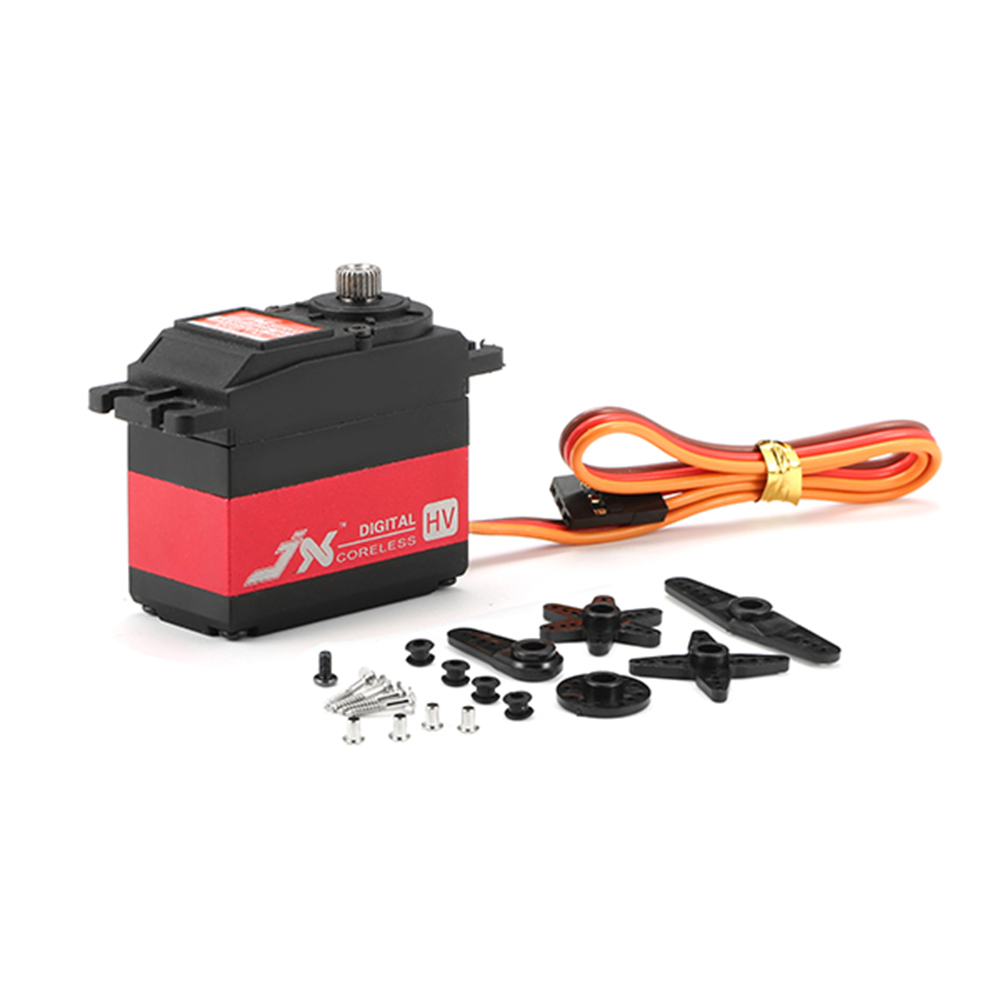

4 x Accessories Bag
