Description:
Brand:JX Servo
Item:PDI-1109MG
Dead band: 1μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 2.2kg.cm (30.8oz/in)
Stall Torque (6V): 2.5kg-cm (35.0oz/in)
Dimensions: 23.2×12.0x25.5mm
Weight: 10.0g (0.35oz)

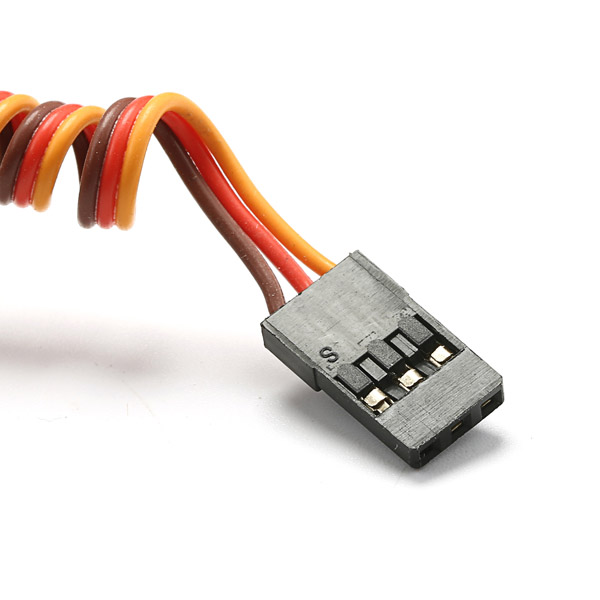

Connector Wire Length: JR 180 mm (7.08in)
Usage:for RC Models
Features:
High quality servo for RC Models
High precision metal gear
Mini size digital servo
Package Included:

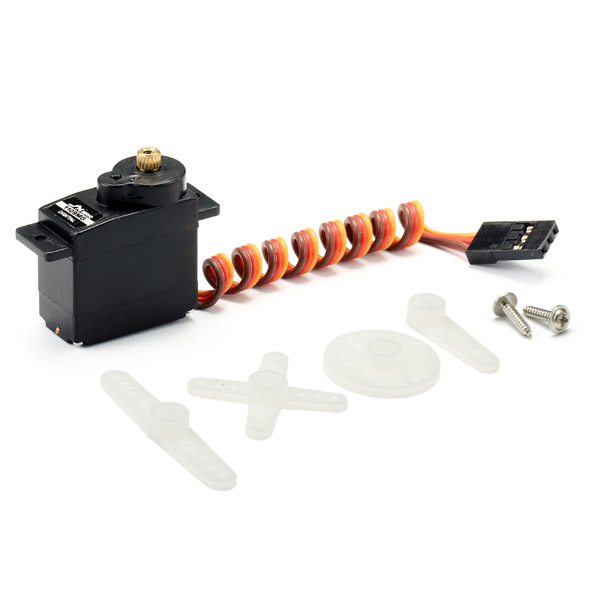

4 x JX Servo PDI-1109MG 9g Metal Core Motor Gear Digital Servo
