Description

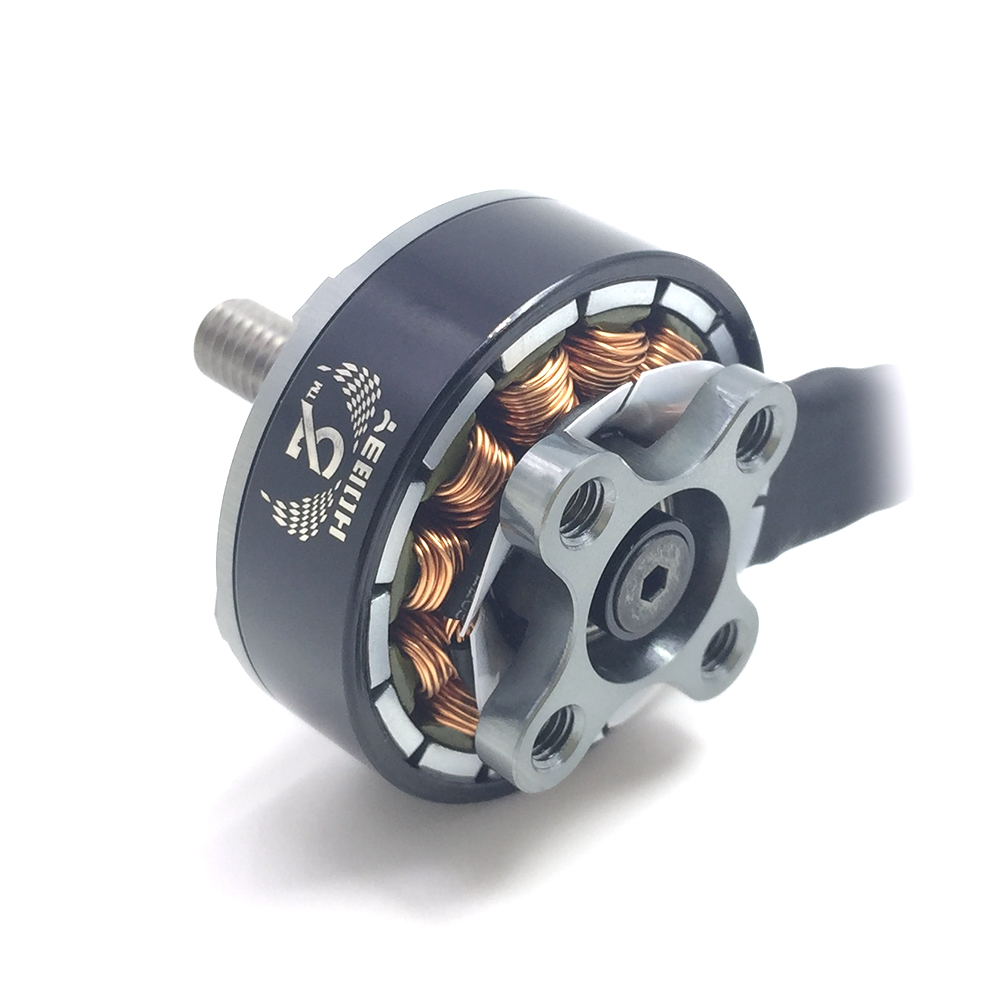

3Bhobby 3B-R 2207 Pro Brushless Motor Titanium 1750KV 2150KV 2450KV 4-6S For RC Drone FPV Racing
Specifications:
Brand name: 3BHOBBY
Item name: 3B-R 2207 Pro Brushless Motor Titanium
KV: 1750KV/2150KV/2450KV
No.of Cells(Lipo): 3S-6S
Stator Diameter: 22mm
Stator Length: 7mm
Shaft Diameter: 5mm
Motor Dimension (Dia. x Len): 27.5 x 30.7mm
Weight(g): 29.5g(Excluding Cable)
Wire Szie: 20AWG 150mm
Recommend Propeller: Gemfan 4-6 inch
Recommend ESC: 40-60A
Suit For: 200-220 Frame
Use 7075 Alu and titanium Shaft
| Specifications | DATA | ||
| Motor KV | 1750KV | 2150KV | 2450KV |
| Stator Diameter | 22mm | 22mm | 22mm |
| Stator Thickness | 7mm | 7mm | 7mm |
| No.of Stator Arms | 12S | 12S | 12S |
| No.of Rotor poles | 14P | 14P | 14P |
| No-load Current(A/10V) | 0.89A | 1.17A | 1.45A |
| Motor Resistance | 62mΩ | 52mΩ | 37mΩ |
| Max Continuous Current | 34A | 44A | 45A |
| Max Continuous Power | 680W | 890W | 729.9W |
| Weight(Excluding Cable) | 29.5g | 29.5g | 29.5g |
| Rotor Diameter | 27.5mm | 27.5mm | 27.5mm |
| Shaft Diameter | 5mm | 5mm | 5mm |
| Body Length | 17.3mm | 17.3mm | 17.3mm |
| Overall shaft Length | 30.7mm | 30.7mm | 30.7mm |
| No.of Cells(Lipo) | 5~6S | 4~5S | 4S |
| ESC | 40~60A | 40~60A | 40~60A |
| Recommended Prop(inch) | 5~6Inch | 5~6Inch | 5~6Inch |
| Wire Szie | 20AWG 150mm | 20AWG 150mm | 20AWG 150mm |

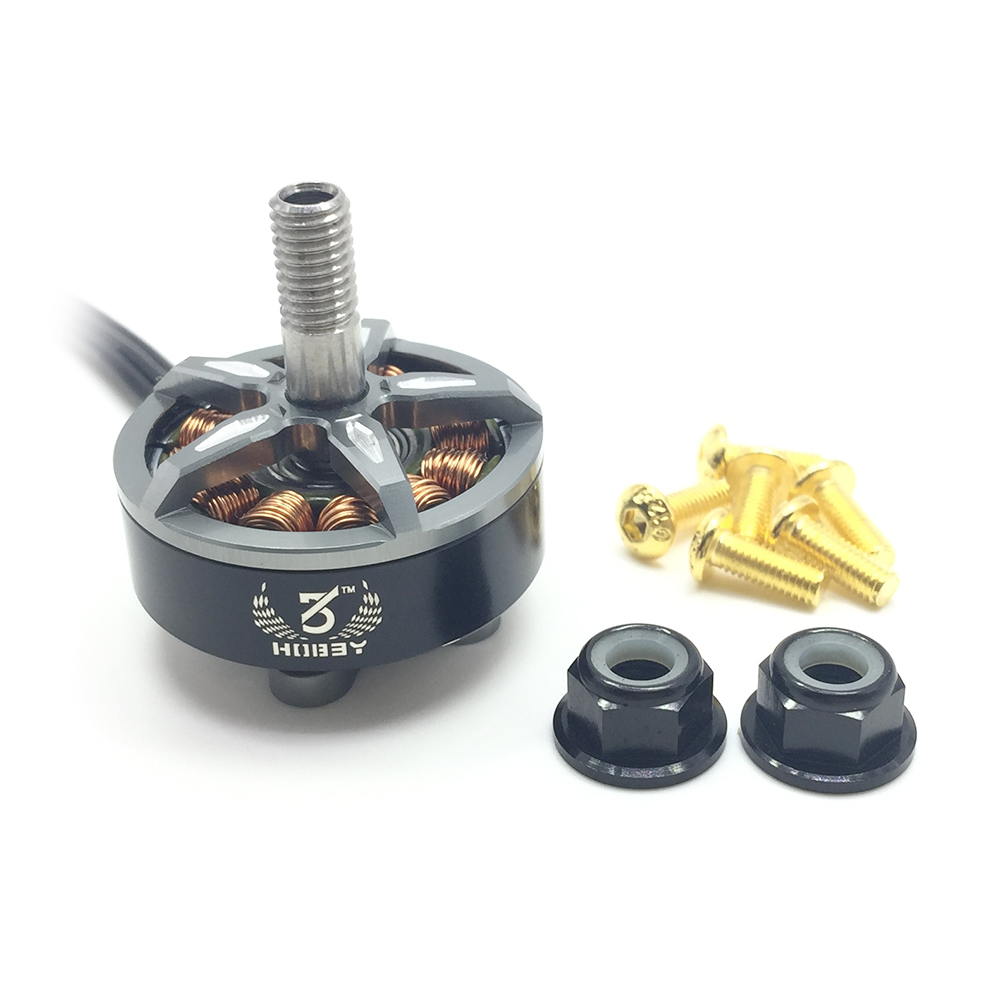

Package Included:
1 x 2207 Pro Motor
2 x Aluminium nut
6 x Round Head Hex Socket Screws M3 x 8
