Description

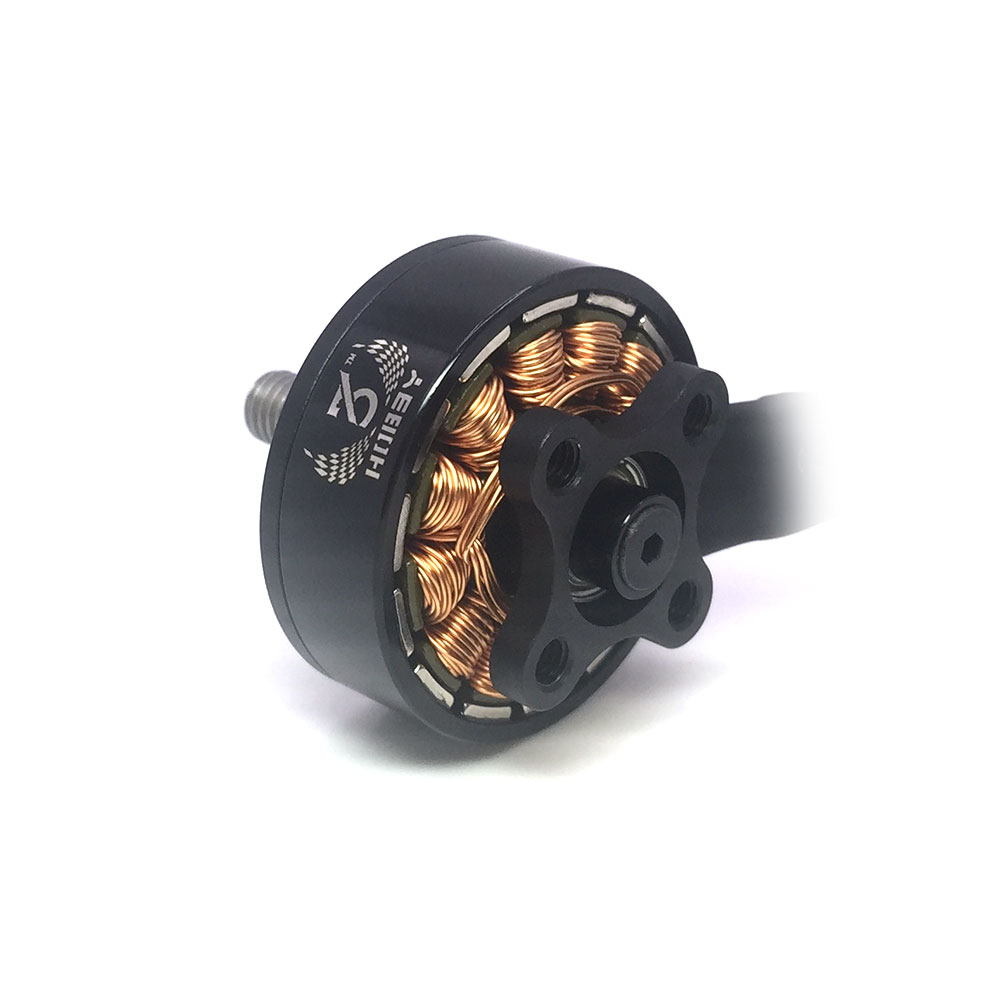

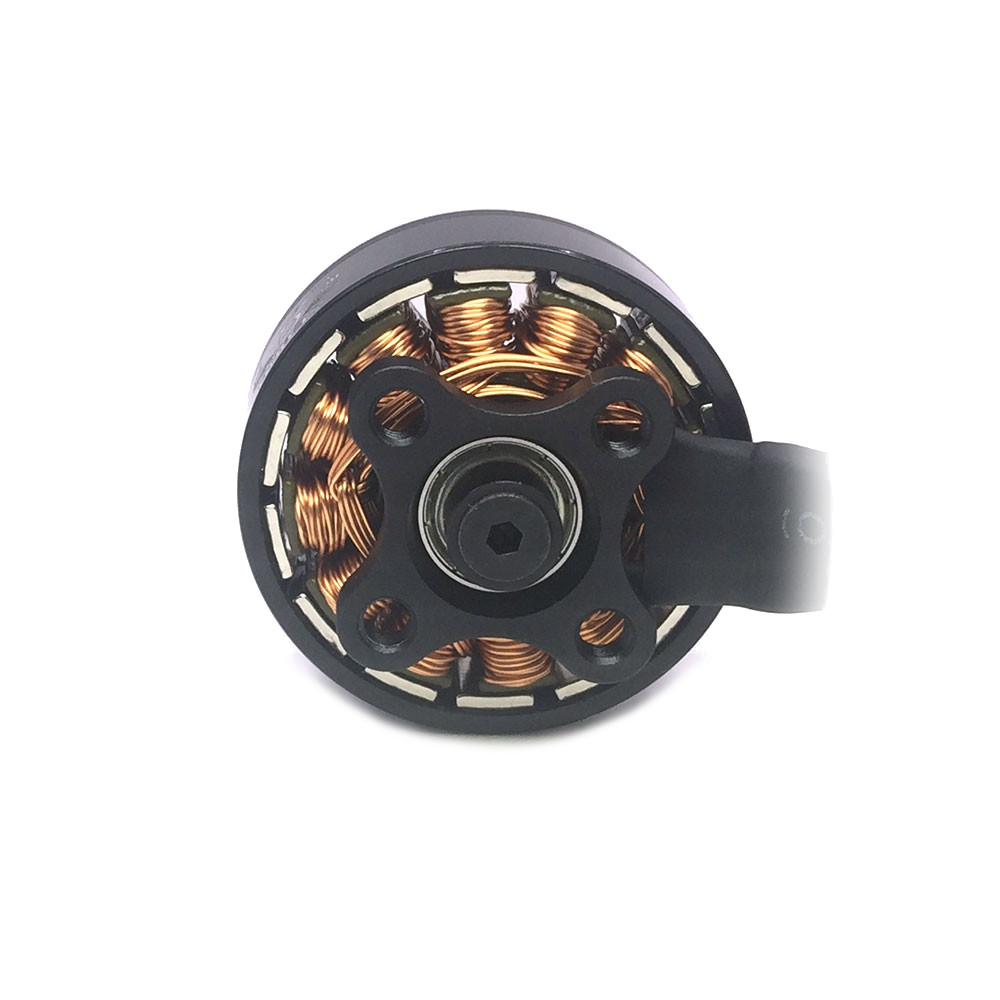

3Bhobby 2306 1700KV/2100KV/2500KV/2700KV 3-6S Brushless Motor for RC FPV Racing Drone
Specifications:
Brand Name: 3BHOBBY
Item name: 2306 Motor
Item name: 2306 Motor
KV: 1700KV/2100KV/2500KV/2700KV
No.of Cells(Lipo): 5-6S/4-5S/3-4S/3-4S
Stator Diameter: 23mm
Stator Length: 6mm
Shaft Diameter: 5mm
Motor Dimension (Dia.*Len): Φ27.9×29.7mm
Weight(g): 29.3g(Excluding Cable)
Wire Size: 20AWG 150mm
Recommend Propeller: Gemfan 5-6″
Recommend ESC: 40-60A
Suit For: 200-220 Frame
Package Included:
1X 2306 Motor
1X Aluminium nut
4X M3*8 round head hex socket screws
