Description

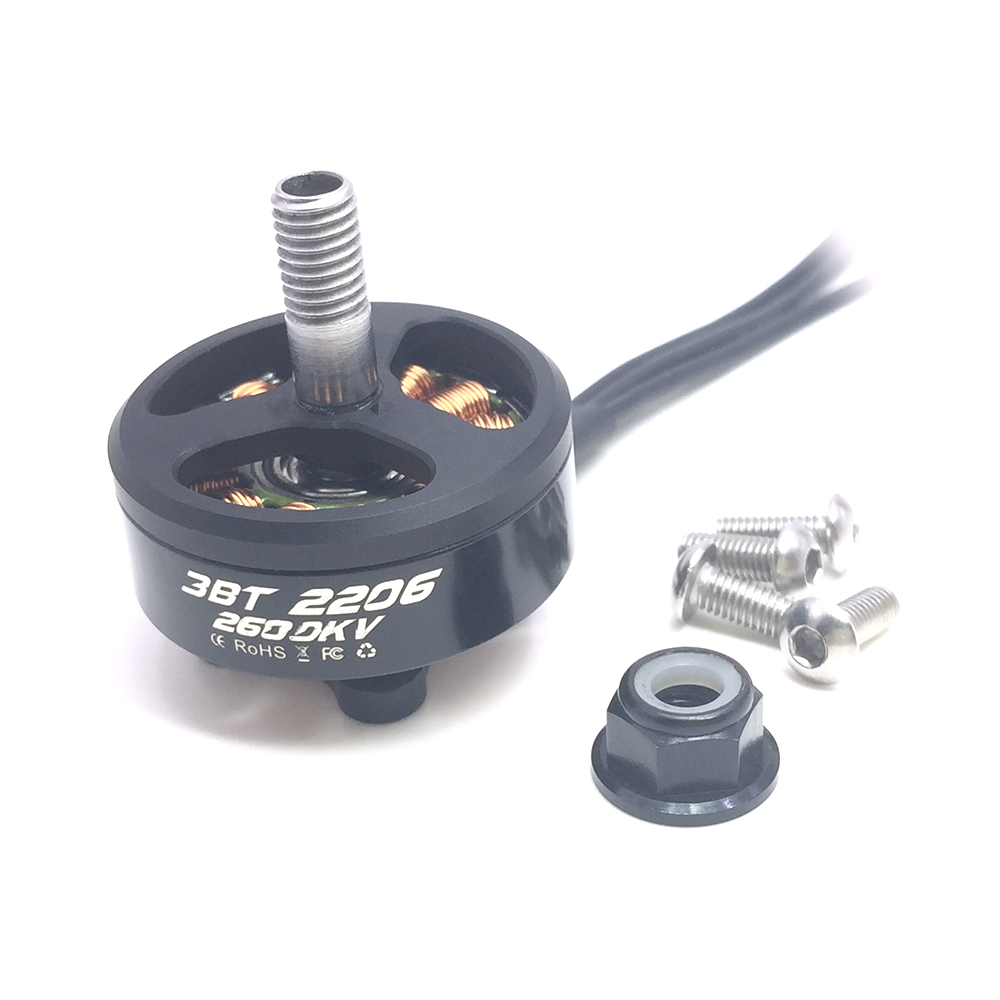

3Bhobby 2206S 1800KV/2000KV/2600KV 4-6S Brushless Motor for RC FPV Racing Drone
Specifications:
Brand name: 3BHOBBY
Item name: 2206S Brushless Motor
Item name: 2206S Brushless Motor
KV: 1800KV/2200KV/2600KV
No.of Cells(Lipo): 5S-6S/4-5S/4S
Stator Diameter: 22mm
Stator Length: 6mm
Shaft Diameter: 5mm
Motor Dimension (Dia. x Len): 27.5 x 30.3mm
Weight(g): 27.5g(Excluding Cable)
Wire Szie: 20AWG 150mm
Recommend Propeller: Gemfan 5-6 inch
Recommend ESC: 30-50A
Suit For: 200-220 Frame
| Specifications | DATA | DATA | DATA |
| Motor KV | 1800KV | 2200KV | 2600KV |
| Stator Diameter | 22mm | 22mm | 22mm |
| Stator Thickness | 6mm | 6mm | 6mm |
| No.of Stator Arms | 12S | 12S | 12S |
| No.of Rotor poles | 14P | 14P | 14P |
| No-load Current(A/10V) | 0.83A | 1.12A | 1.5A |
| Motor Resistance | 95.4mΩ | 63.1mΩ | 47.4mΩ |
| Max Continuous Current | 28.9A | 35.6A | 38.8A |
| Max Continuous Power | 693.5W | 712.4W | 621.2W |
| Weight | 27.5g | 27.5g | 27.5g |
| Rotor Diameter | 27.5mm | 27.5mm | 27.5mm |
| Shaft Diameter | 5mm | 5mm | 5mm |
| Body Length | 16.9mm | 16.9mm | 16.9mm |
| Overall shaft Length | 30.3mm | 30.3mm | 30.3mm |
| No.of Cells(Lipo) | 5-6S | 4-5S | 4S |
| ESC | 30-40A | 40-50A | 40-50A |
| Recommended Prop(inch) | 5~6Inch | 5~6Inch | 5Inch |
| Wire Szie | 20AWG/150mm | 20AWG/150mm | 20AWG/150mm |
Package Included:
1 x 2206S Motor
1 x Aluminium Nut
4 x Round Head Hex Socket Screws M3 x 8
