Description
3A/5A/7A/15A BEC Brushless UBEC For FPV Receiver
Description:
UBEC-3A
Item name: 3A BEC Brushless UBEC
Continuous Current: 3A
Power input: 5.5-26V(2-6S)
Dimension: 26*12*11mm
Weight: 5g
Ripple: <50mVp-p(2A/12V)
UBEC-5A
Item name: 5A BEC Brushless UBEC
Working voltage: 5.5V-35V (2-8S lipo)
Continuous current: 5A
Brust current: 6A 20s
Output voltage: 5.25V+/- 0.5V
Dimension: 43*24*1mm
Weight: 18g
Continuous current: 5A
Brust current: 6A 20s
Output voltage: 5.25V+/- 0.5V
Dimension: 43*24*1mm
Weight: 18g
UBEC-7A
Item name: 7A BEC Brushless UBEC
Working voltage: 5.5V-35V (2-8S lipo)
Continuous current: 6A
Brust current: 7.5A 20s
Output voltage: 5.25V+/- 0.5V
Dimension: 43*24*1mm
Weight: 18g

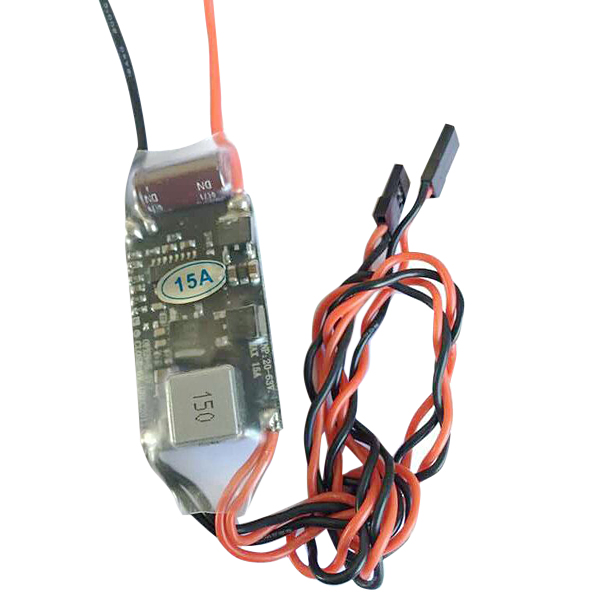

UBEC-15A
Item name: 15A BEC Brushless UBEC
Working voltage: 23V-45V (6-12S lipo)
Continuous current: 15A
Brust current: 30A 10s
Dimension: 55*28*5mm
Weight: 36g
Features:
Power switch structure, main chip frequency 300KHz, with overheat, overflow protection
Very small and light weight
Output cable with magnetic ring to decrease magnetic interference
With reverse polarity protection
Package Included:
1 x BEC Brushless UBEC
