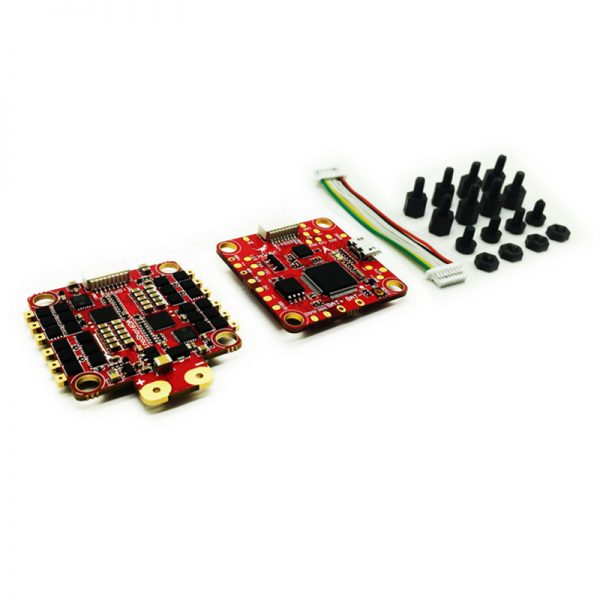

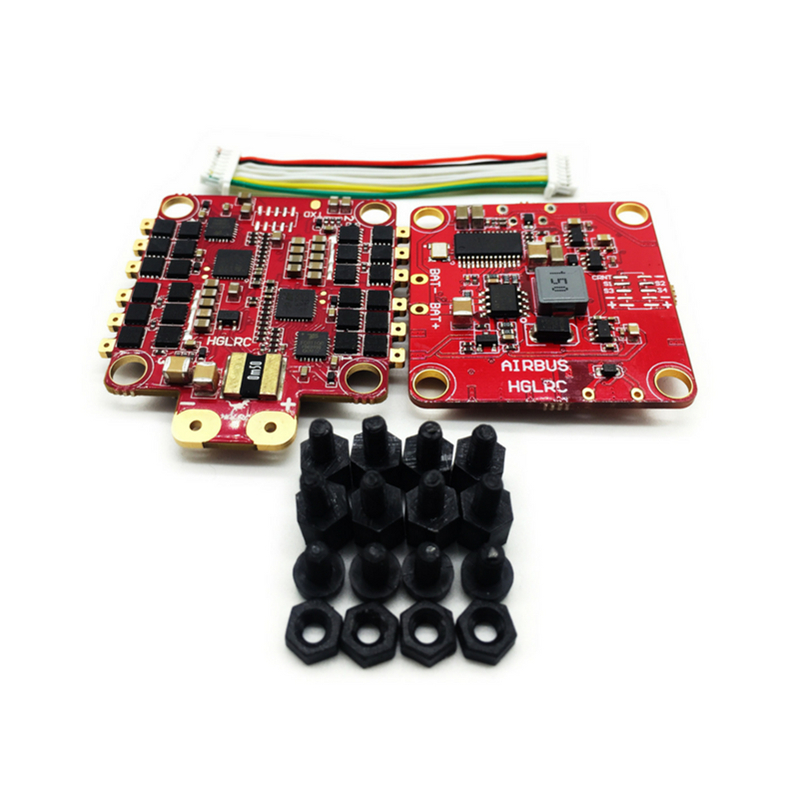

30.5×30.5mm HGLRC Titan Plus F460 Stack AIRBUS F4OSD F4 Flight Controller OSD & Dinoshot 60A Blheli_32 4 IN 1 ESC
Description:
Brand name: HGLRC
Item name: HGLRC Titan Plus F460 Stack
Weight: 21.2g
Usage: for 130mm-280mm Frame Kit
AIRBUS F4OSD Flight Controller (D-Shot Version):
MPU: MPU6000-SPI
CPU: STM32F405RGT6, Dual 8K.
Black box: Flash 16M
Input voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC output: 5V@3A
Size: 36x36mm board, 30.5mm mounting holes (M3)
Weight: 8.3g
Support Subs/PPM/DSMX receiver
Dinoshot 60A Blheli_32 3-6S 4 in 1 ESC:
Input voltage: 3-6S lipo battery
Constant current: 60A
Peak current: 70A
BEC ouput: NO
Firmware: 32bit ESC with BLHeli_32 firmware
Size: 36x36mm (main board)
40x48mm (including pad)
Installing hole: 30.5×30.5mm, M3
Weight: 12.9g
CPU: STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped mode
Package included:
1 x AIRBUS F4OSD flight controller
1 x Dinoshot 60A Blheli_32 4 in 1 ESC
1 x SH1.0 8PIN 60mm cable
1 x SH1.0 8PIN 60mm cable
,
,
,
,
,
,
,
,
