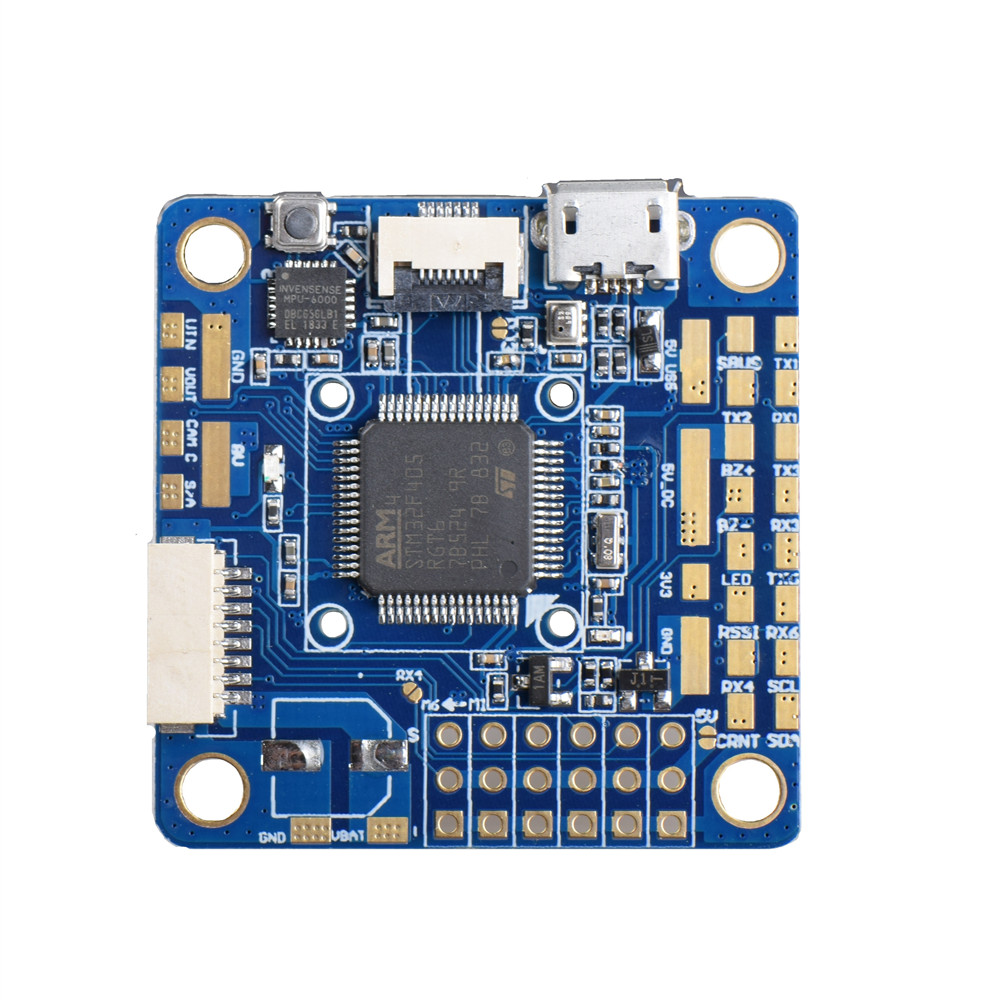

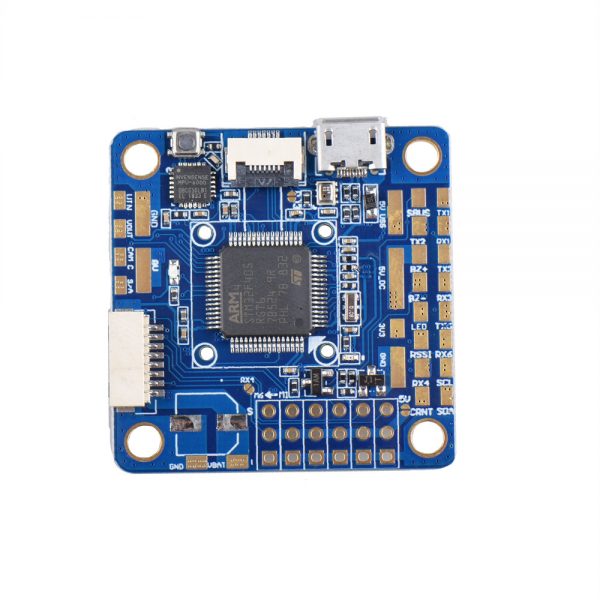

30.5×30.5mm Omnibus Betaflight F4 V6 3-6S Flight Controller OSD 8V/3A 5V/1A BEC for FPV RC Drone
Description:
OMNIBUS F4's upgrade version, using F405 and new target, with 5x UARTs now. Classic OMNIBUS design, using F4 MCU controls OSD over
SPI bus, compare the first version, we added BMP280 as barometer and SD Card supports. OSD Configuration has been incl. in Betaflight GUI.
SPI bus, compare the first version, we added BMP280 as barometer and SD Card supports. OSD Configuration has been incl. in Betaflight GUI.
FC incl. 5V1A BEC on board(3-6s) and 1x 8V BEC for Camera
MPU6000 at SPI bus, Ext, SPI for damped gyro
Use fire works v2 firmware, in CLI, set gyro_to_use = SECOND
New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.
On v5, we added jumpers for Current source select, please read the manual and set the jumper before using the FC.
Specificaiton:
Item name: Omnibus betaflight F4 V6 flight controller
STM32 F405 MCU, Runs Betaflight 3.0 firmware
STM32 F405 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
Only 36x36mm, mount holes 30.5×30.5mm
INCL. BARO BMP280
SPI Sensor MPU6000
Flash
Omnibus betaflight F4 V6 flight controller guide, please click here.
Package included:
1 x Flight Controller
1 x 8P*1.0MM LINE
