Description
Description:

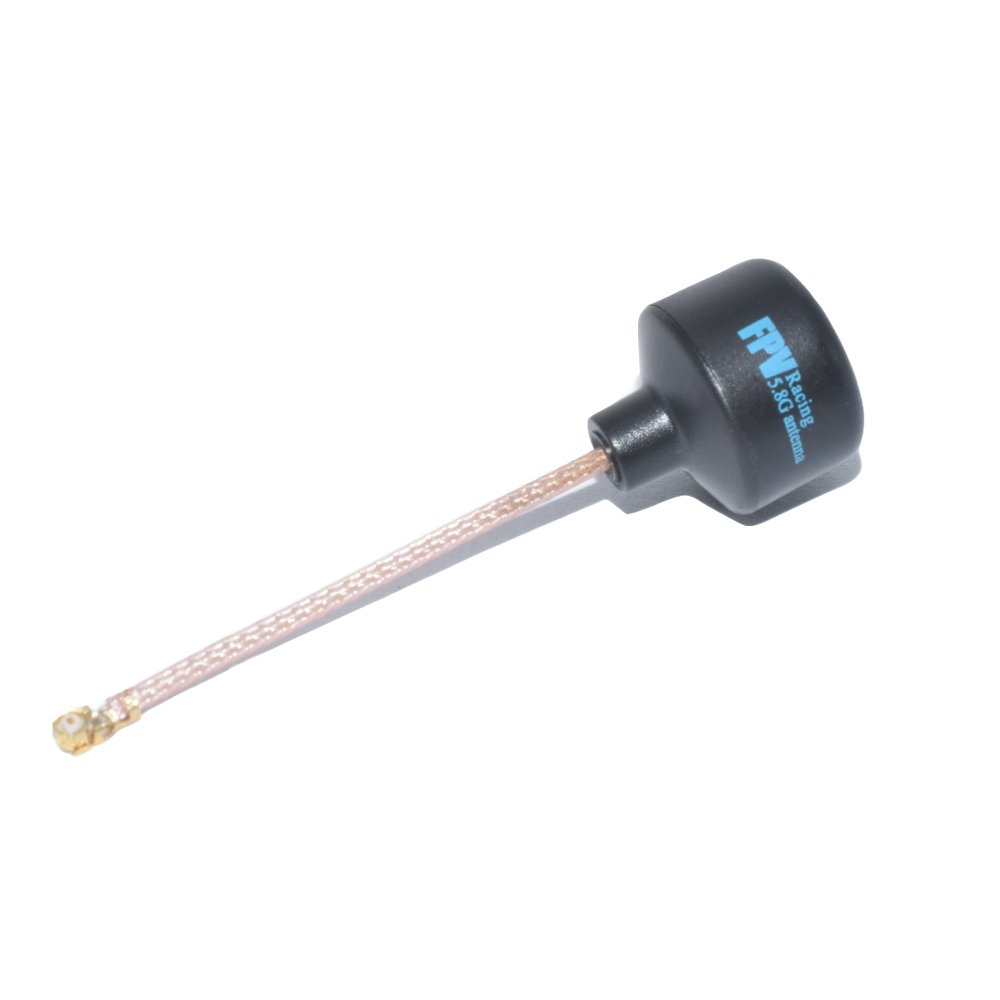

Item Name: UFO 5.8G 2.5DBi Omni Antenna-UFL
Shell Material: Imported PC + ABS
Weight: 2.4g
Antenna Length: 60mm
Center Frequency: 5.8 GHz
Gain: 2.5 Dbi
Bandwidth: 500 MHz (5.5-6.0 GHz)
Matching: VSWR < 1.2 (at center frequency)
Axial ratio: <3db
Center Frequency: 5750MHz
Radiation Efficiency: 98%
Half-power Beam Width(°): H:360, V:60
Input Impedance: 50Ω
Maximum Input Power: 50W
Operating Temperature: -40 ~ 60℃
Rated Wind Velocity: 60 m/s
Polarization: RHCP
Color: Black

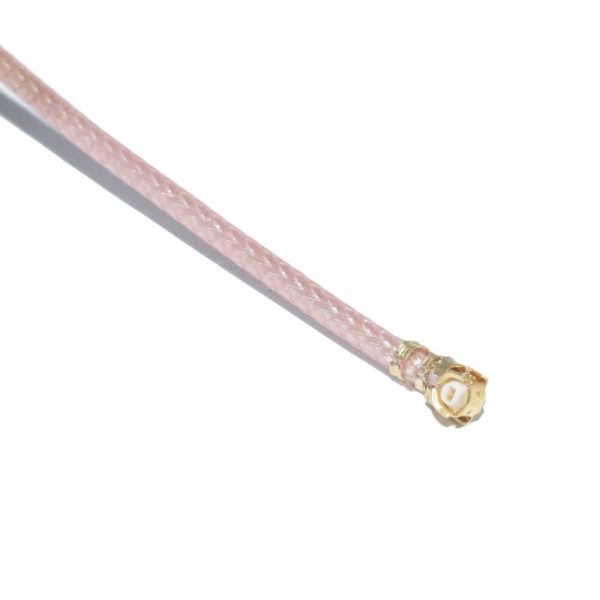

Connector: UFL
Product Dimension: 17*17*65mm
Package Dimension: 60*90*30mm
Package Weight: 10g
Features:
* Body adopt imported PC+ABS material, can withstand high strength impact.
* IRoot reinfircement design 360° protection.
* Low feeder loss,easy to install,can be bent at any angle and maintain.
* Double-jacket semi-rigid cable for heavy impact resistance.
* Only weight 2.4g, suitable for Whoop.
Package Included:

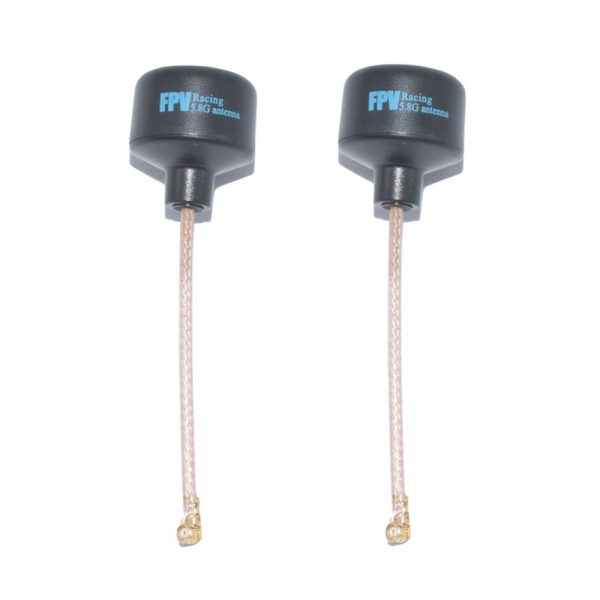

2x UFO 5.8G 2.5DBi Omni Antenna-UFL
