Description
Description:

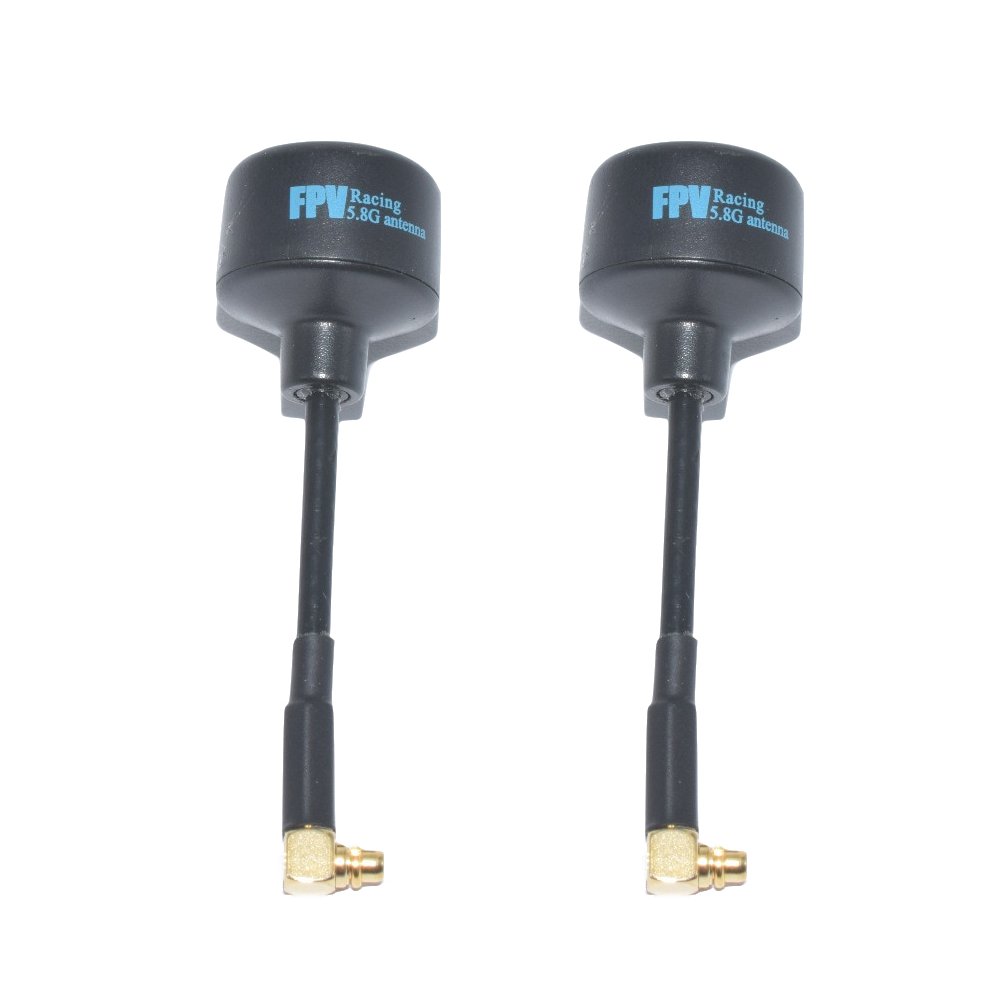

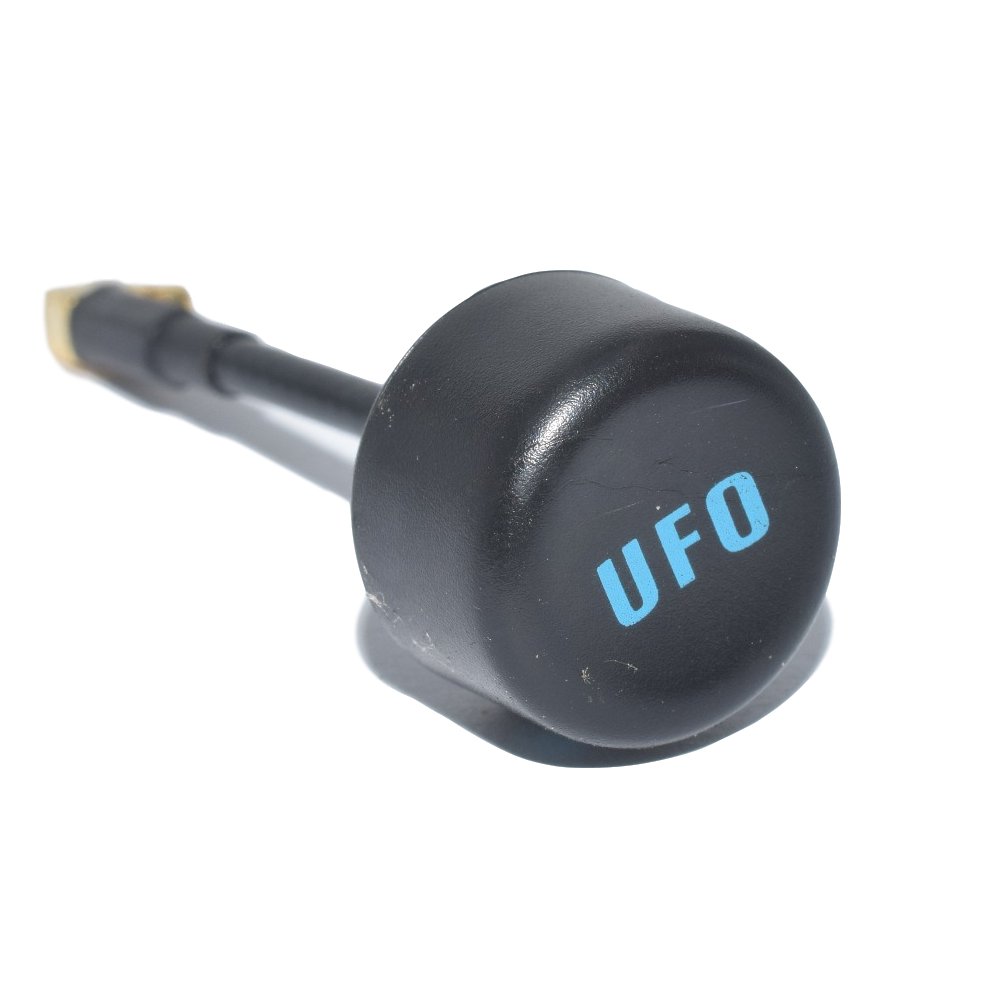

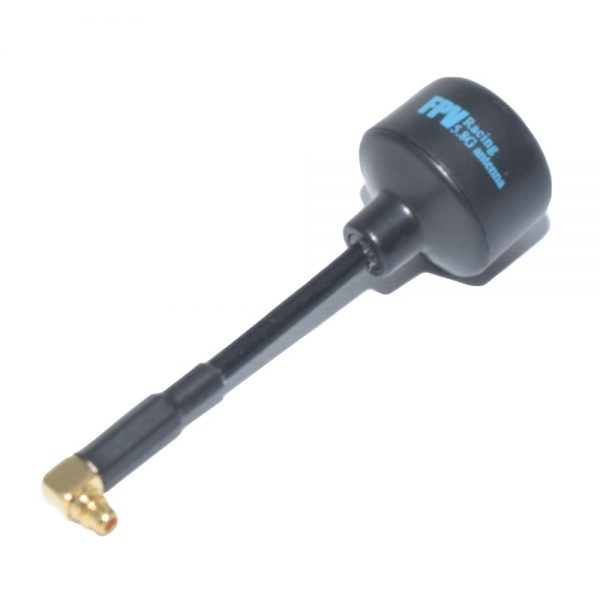

Item number: UFO 5.8G 2.5DBi Omni Antenna
Shell Material: Imported PC + ABS
Weight: 3.4g
Antenna Length: 60mm
Center Frequency: 5.8 GHz
Gain: 2.5 Dbi
Bandwidth: 500 MHz (5.5-6.0 GHz)
Matching: VSWR < 1.2 (at center frequency)
Axial ratio: <3db
Center Frequency: 5750MHz
Radiation Efficiency: 98%
Half-power Beam Width: H:360°, V:60°
Input Impedance: 50Ω
Maximum Input Power: 50W
Operating Temperature: -40 ~ 60℃
Rated Wind Velocity: 60 m/s
Polarization: RHCP
Color: Black
Connector: Straight MMCX, Angle MMCX (optional)
Product Dimension: 17*17*65mm
Package Dimension: 60*90*30mm
Package Weight: 10g
Features:
* Body adopt imported PC+ABS material, can withstand high strength impact.
* IRoot reinfircement design 360° protection.
* Low feeder loss,easy to install,can be bent at any angle and maintain.
* Double-jacket semi-rigid cable for heavy impact resistance.
Package Included:
2x UFO 5.8G 2.5DBi Omni Antenna
