Description
2g DF600 2.4G SBUS Mini Receiver Compatible All Futaba S-FHSS Radio Transmitter
Specification:
Model: DF600
Item Name: 2.4G SBUS Mini Receiver Compatible Futaba S-FHSS
Working Voltage: 3.5-6V
Working Current: 25-30mA ( LNA Off )
35-40mA ( LNA On )
Working Temperature: -10℃ — +70℃
dB SPL: Less than -103dbm ( LNA On )
Dimension: 30.5x16x5mm

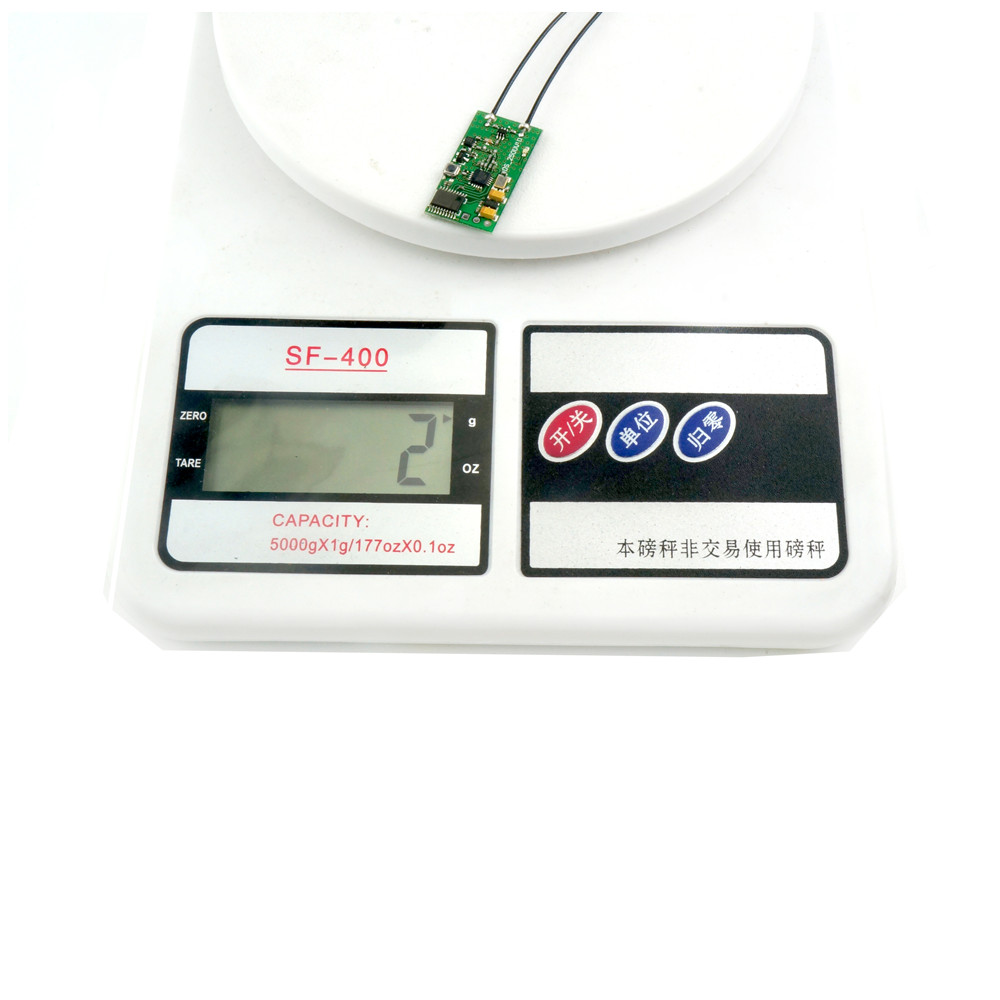

Weight: about 2g
Features:
– Stable signal in long distance ( 1000m in Sunny Open flight space )
– Compatible FUTABA S.Bus (7ms HS)
– Compatible all Futaba S-FHSS RX
– Application: for T4PL,T6J,T6K,T6K,T8J,T10J,T14SG,T18MZ,T18SZ,T3PV,T3PRKA,
T4PLS,T4PX,T4GRS Radio Transmitter
– There are 3 cables in the package for CC3D / NAZE32/ F3 Flight Controller Board
Bind Process:
1. Make Radio Transmitter into S-FHSS Mode
2. Power for Receiver while press and holding the bind button
3. The Blue LED will flashing fast and receiver enter into binding mode
4. The receiver's LED light keep flashing in Blue, bind successfully

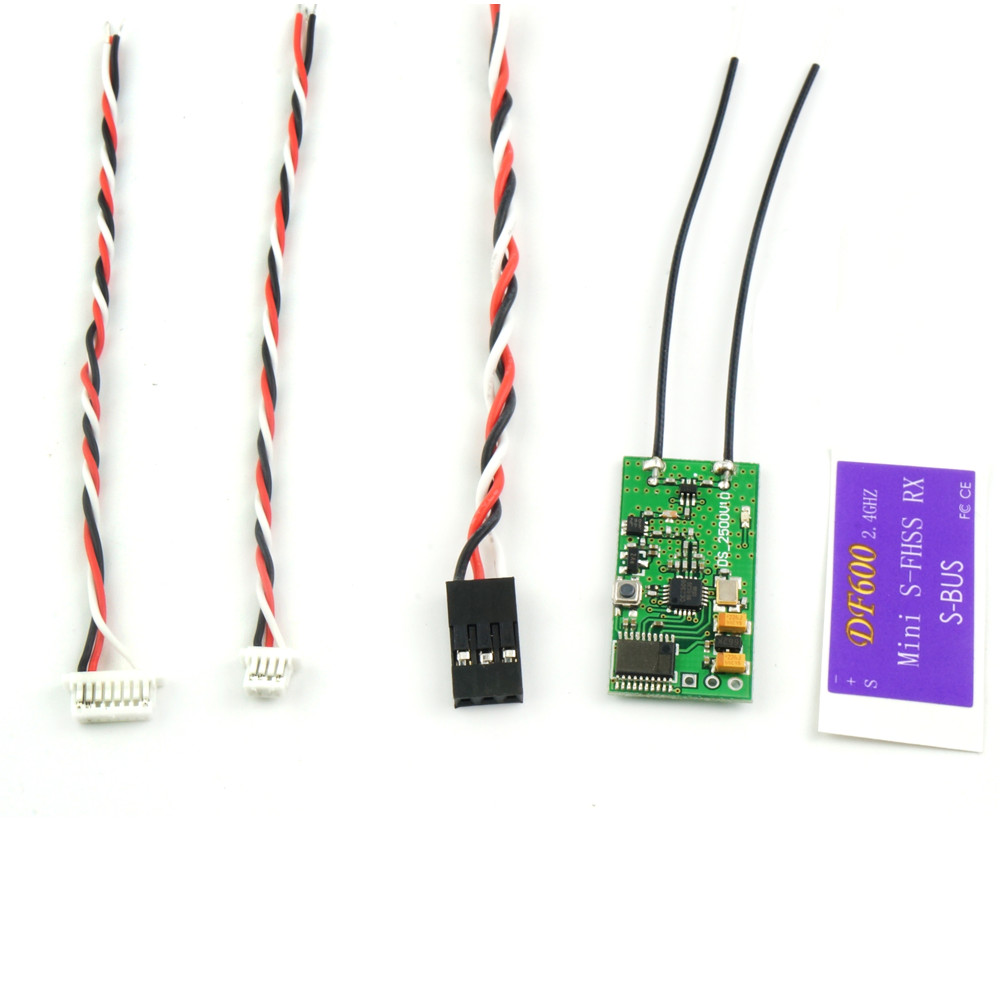

Package Included:
1x FD600 Mini Receiver
3x Cable
