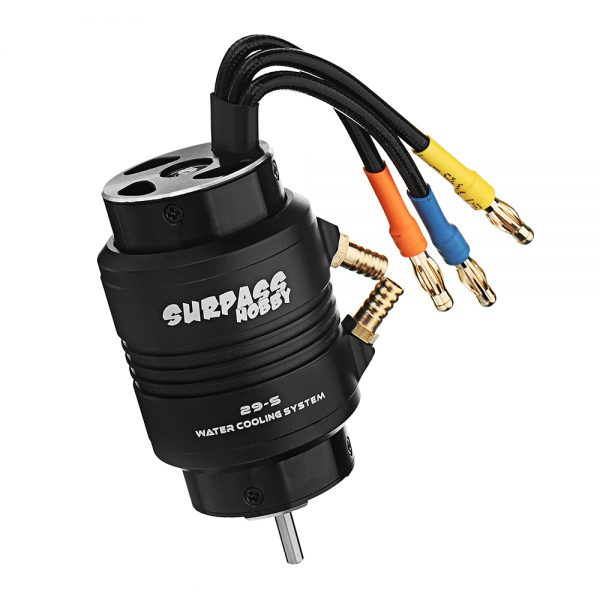

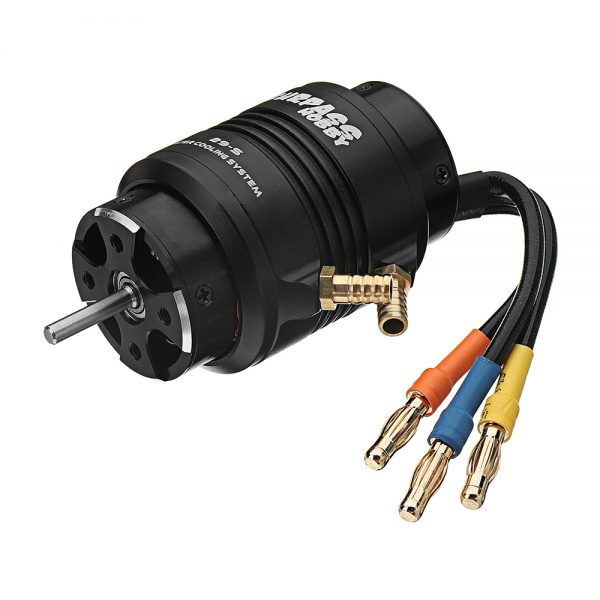

Motor specifications:
Brand:surpass hobby
Item name:brushless motor+70A ESC +29-S Water Cooling
KV (RPM / Volt): 4200KV
Max RPM:60000
Max Amps:100
Max Amps:100
Watt: 1400 Watt
Voltage Max: 14V
Diameter: 29MM
Length: 58MM
Rotor Poles:4
Numbers of turns:3T
Numbers of turns:3T
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.2mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Water Cooling specifications:
Item name:29-S water cooling
Color:black

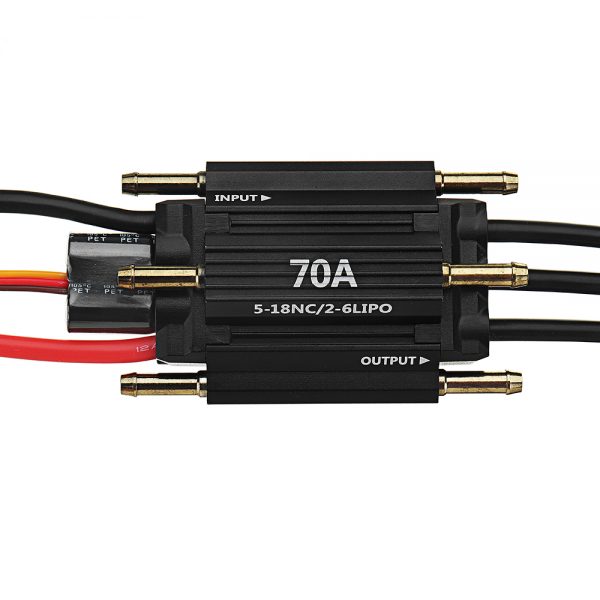

70A ESC specifications:
Item name:70A ESC
For the ESC manual,please click here
Weight:356g,with packaging
Compatible with most brands about 750cm length,2-3kg rc boat

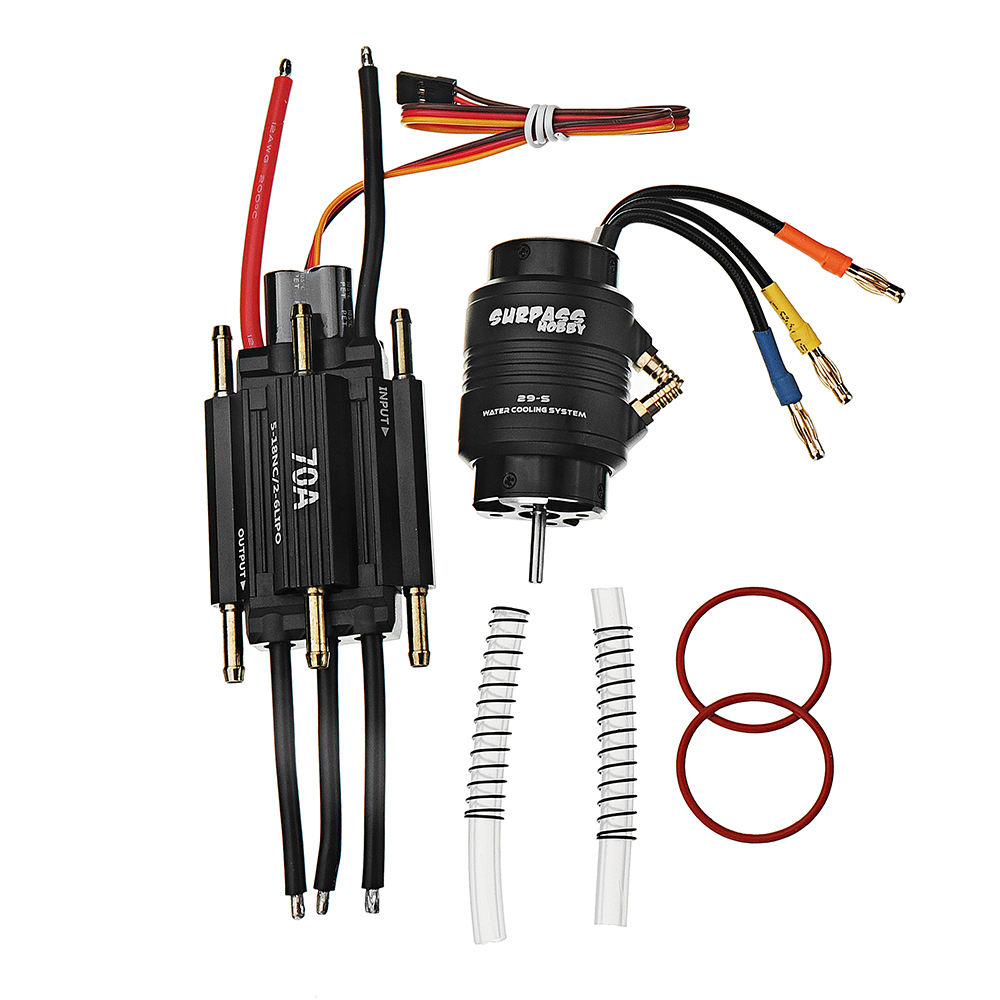

Package included:
1X 2958 4200 kv Motor

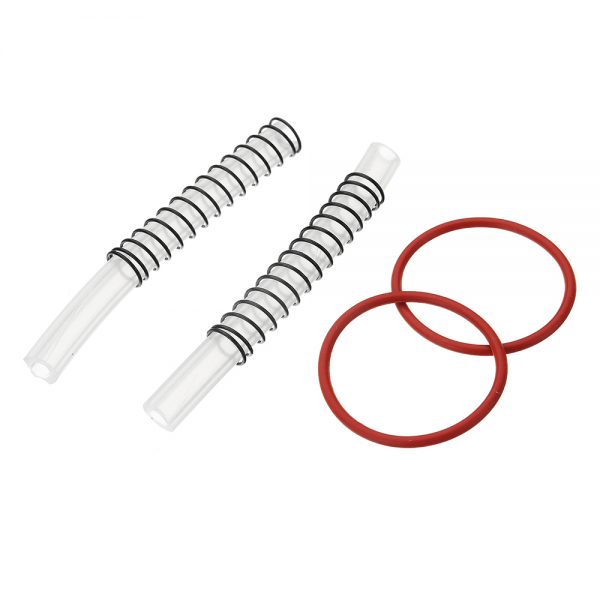

1X 29-S Water Cooling
1X 70A ESC
