Due to Runcam Nano3 camera was discontinued, now the Mobula7 1s comes with Caddx ant camera .

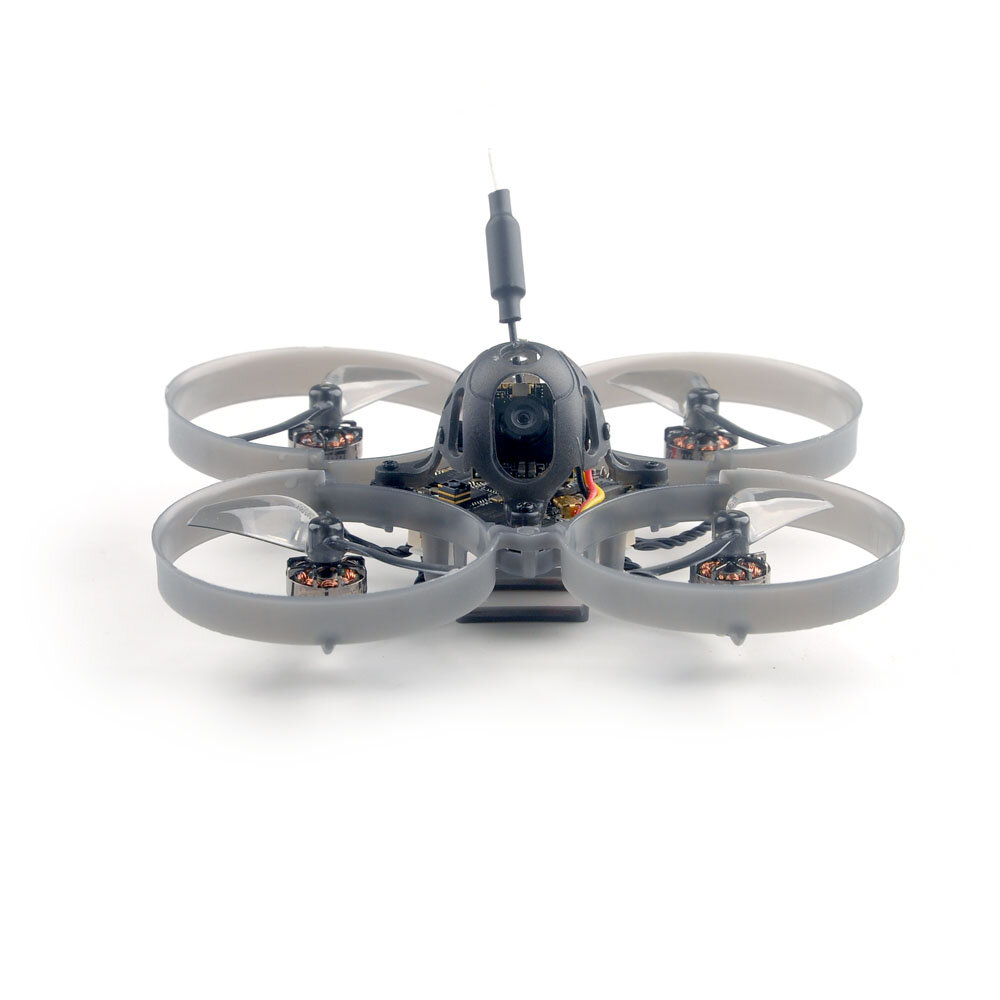

Happymodel Mobula7 1S Micro FPV Whoop Drone
We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.
The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.
New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.
Features:
– X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
– VTX Power up to 400mw
– ELRS V2.0 Support
– NEW RS0802 20000KV motors
– Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
– Smooth and powerful
– Compatible for 1S Lipo/LIHV
– Recommend 1S 450mah/550mah/650mah battery (Not included)
Specifications:
Brand Name: Happymodel
Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm
Weight: 24g
| Motor | Mode: RS0802 KV20000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm Weight(g):2.0g No.of Cells(Lipo):1S only |
| Propellers | Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight controller | X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A Built-in voltage detection Built-in current sensor |
| Onboard 4in1 ESC | Power supply: 1S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware |
|
Onboard SPI ExpressLRS 2.4GHz Receiver ( 2.4G ELRS Receiver Version) |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna: SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware |
|
Onboard Frsky SPI D8/D16 receiver compatible ( Compatible Frsky Receiver Version) |
SPI BUS receiver Frsky D8 compatible Compatible Non-EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support |
|
Onboard Flysky SPI receiver compatible ( Compatible Flysky Receiver Version) |
SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support |
| PNP Version (without onboard receiver) | Full UART1 for external Receiver Support CRSF/GHOST/SBUS/IBUS/DSMX protocol IR1 pad(invert RX1) used for SBUS input |
| Onboard 5.8g OPENVTX | Firmware version: OPENVTX Smart audio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) |
| Runcam Nano3 | Model: RunCam Nano 3 Image Sensor: 1/3′ CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 150° Signal System: NTSC S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
|
Recommend 1S Lipo Battery(Not included) |
Capacity: 650mAh |
Package Included:
1x Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
1x Option1: X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver
1x Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver
1x Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
1x Option4: X12 PNP V1.0 flight controller without onboard receiver
4x RS0802 KV20000 brushless motor
1x Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
1x Runcam Nano3 1/3 CMOS 800TVL camera
1x Onboard 5.8G Openvtx 0mw~400mw VTX
1x 1S parallel charging board
1x Propeller disassemble tool
1x Extra camera canopy
1x Option1: X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver
1x Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver
1x Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
1x Option4: X12 PNP V1.0 flight controller without onboard receiver
4x RS0802 KV20000 brushless motor
1x Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
1x Runcam Nano3 1/3 CMOS 800TVL camera
1x Onboard 5.8G Openvtx 0mw~400mw VTX
1x 1S parallel charging board
1x Propeller disassemble tool
1x Extra camera canopy
