Description

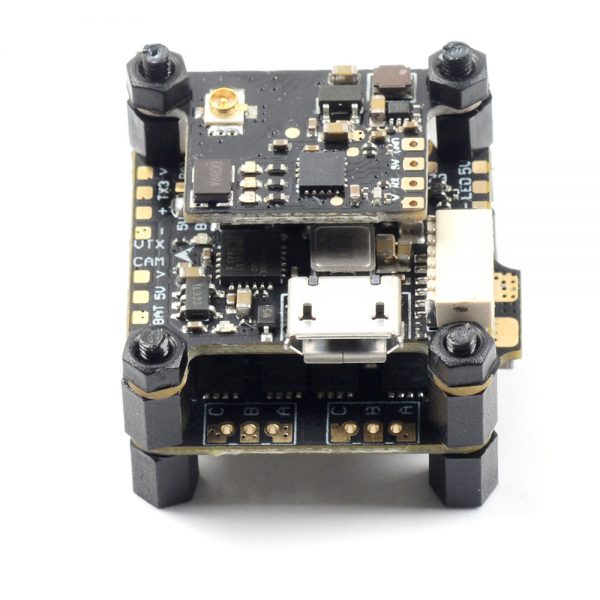

Skystars 20x20mm Talon Mini Flytower F4 OSD Flight Controller & 15A BL_S 4in1 ESC & 40CH 25/100mW VTX
Specification:
Brand Name: Skystars
Model: Talon Mini F4 Flytower
Item Name: 20x20mm Omnibus F4 FC & 15A BL_S ESC & 40CH 25/100mW VTX Flytower
Size:25×25mm
Installation height:20mm
Screws:M2×25mm
Mounting Hole: 20x20mm
Weight: 12.5g

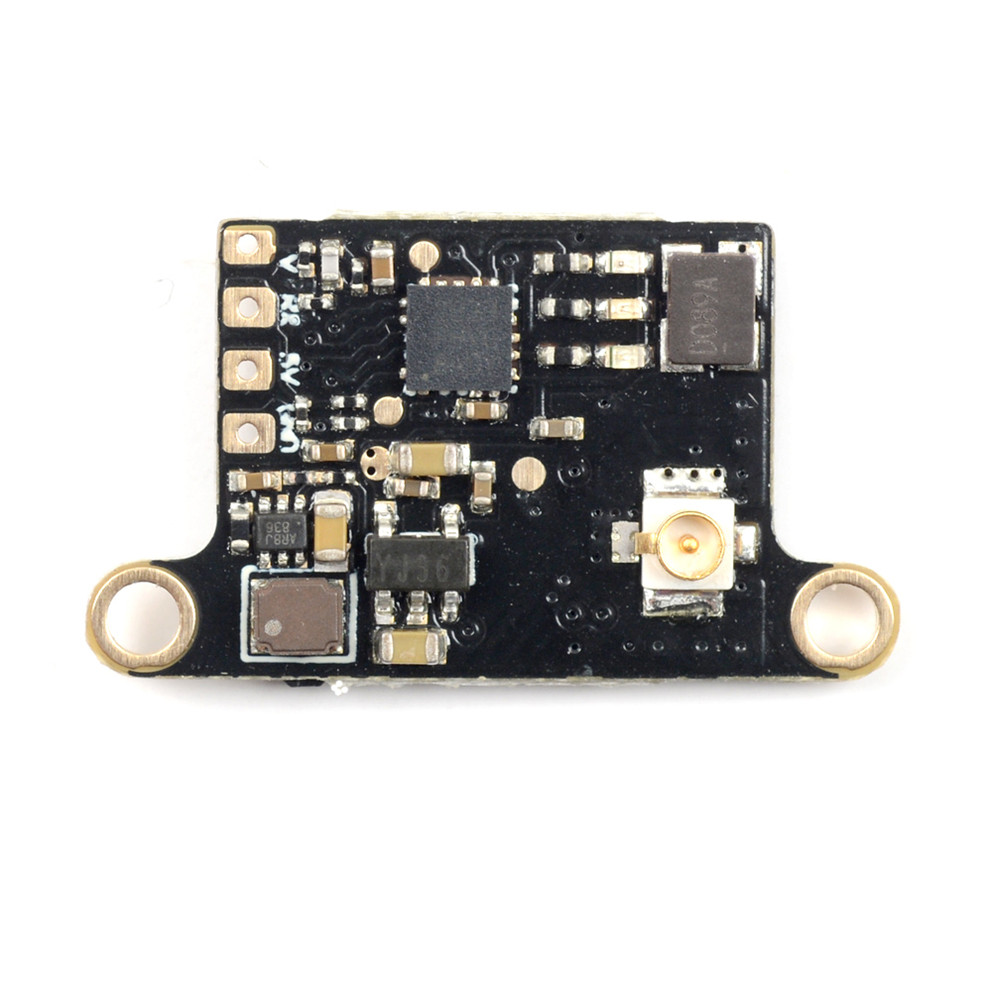

40CH Off/25/100mW Switchable VTX (Top Level)
VTX Power: OFF/25/100mW
CH: 40CH
Voltage: 5V
– Support TBS SmartAudio

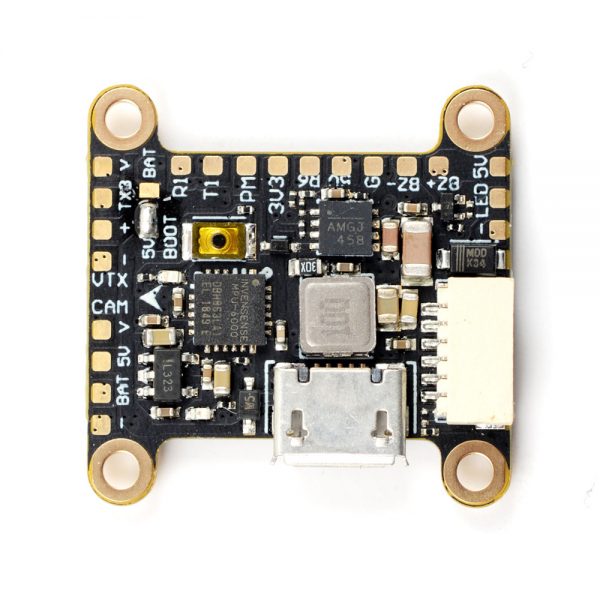

F405 Betaflight Flight Controller( Middle Level)
Input power: 7.4-22V (2-4S)
BEC: 5V@1.5A
MCU: STM32F405
Gyro: MPU6000
OSD: AT7456E
Mounting Hole: 20*20mm
Weight: 2.3g
15A BLheli_S 4 In 1 Brushless ESC ( Bottom Level)
Input Voltage: 2-4S (7.4V-16.8V)
Con. Current: 15A
Peak Current: 20A (6s)
Oneshot 125/42 : YES
Dshot 150/300/600: YES
BlheliSuite Configurable: YES
Firmware Version: BLHeli_S/Dshot 150/300/600 16.6
Board Size: 25x24x4.8mm
( 20x20mm Mounting Hole)
( 20x20mm Mounting Hole)
Weight: 2.5g

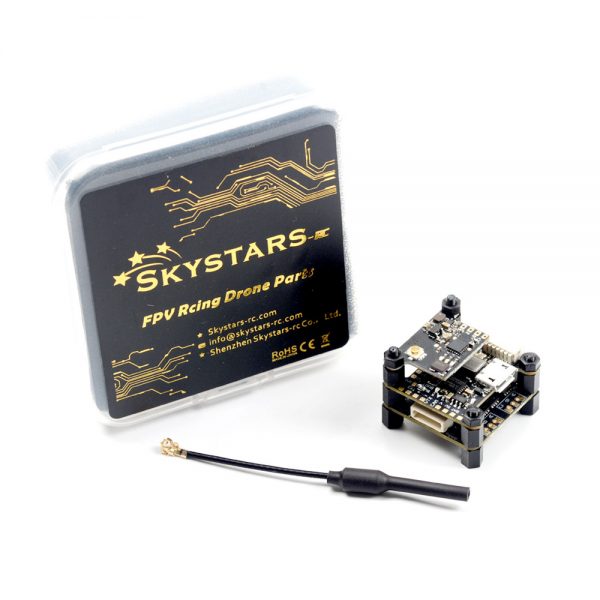

Package Included:
1x F4 Flight Controller Board
1x VTX Board
1x 15A 4 In 1 ESC
1x Bag of screws
1x F4 Flight Controller Board
1x VTX Board
1x 15A 4 In 1 ESC
1x Bag of screws
3x Cable
