Description

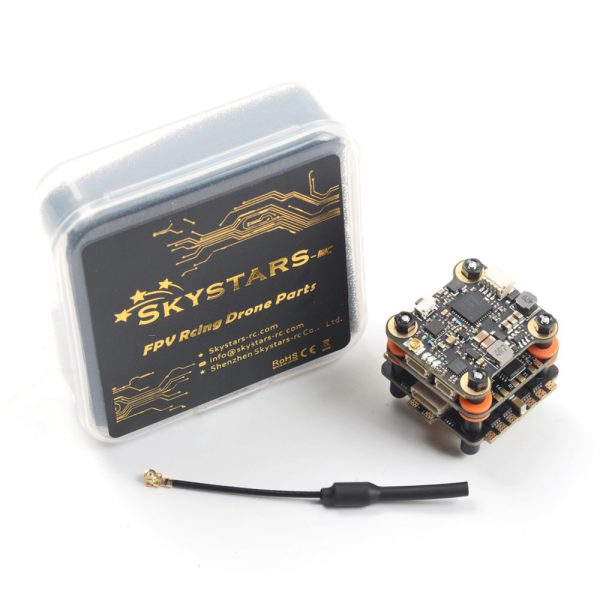

20x20mm Skystars Talon Mini F4 Flytower F4 OSD Flight Controller & 20A BL_S 4in1 ESC & 48CH 25/100/200mW VTX
Specification:
Brand Name: Skystars
Model: Talon Mini F4 Flytower
Item Name: 20x20mm Omnibus F4 FC & 20A BL_S ESC & 48CH 25/100/200mW VTX Flytower
Size:25×25mm
Installation height:20mm
Screws:M2×25mm
Mounting Hole: 20x20mm
Recommended the plate thickness: 2-4mm
Weight: 15.5g

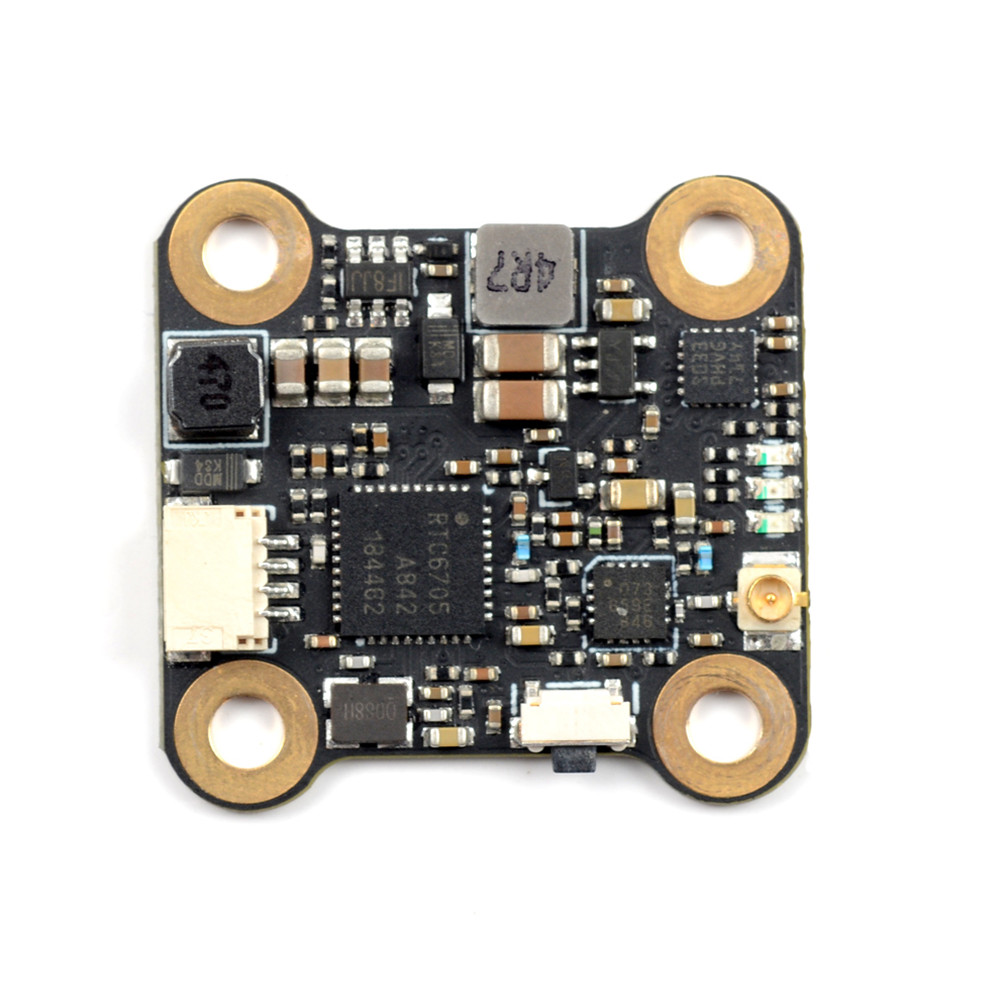

48CH Off/25/100/200mW Switchable VTX (Top Level)
VTX Power: OFF/25/100/200mW
CH: 48CH
VTX Power input: 2-6S (using VTX layer alone)
Video Camera Voltage: 5V
– Support TBS SmartAudio
Frequency Table:
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
| Band A | 5865 | 5845 | 5825 | 5805 | 5875 | 5865 | 5845 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band C |
5705
|
5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band D |
5740
|
5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band E |
5362
|
5400 | 5436 | 5473 | 5510 | 5547 | 5584 | 5620 |
| Band F | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |

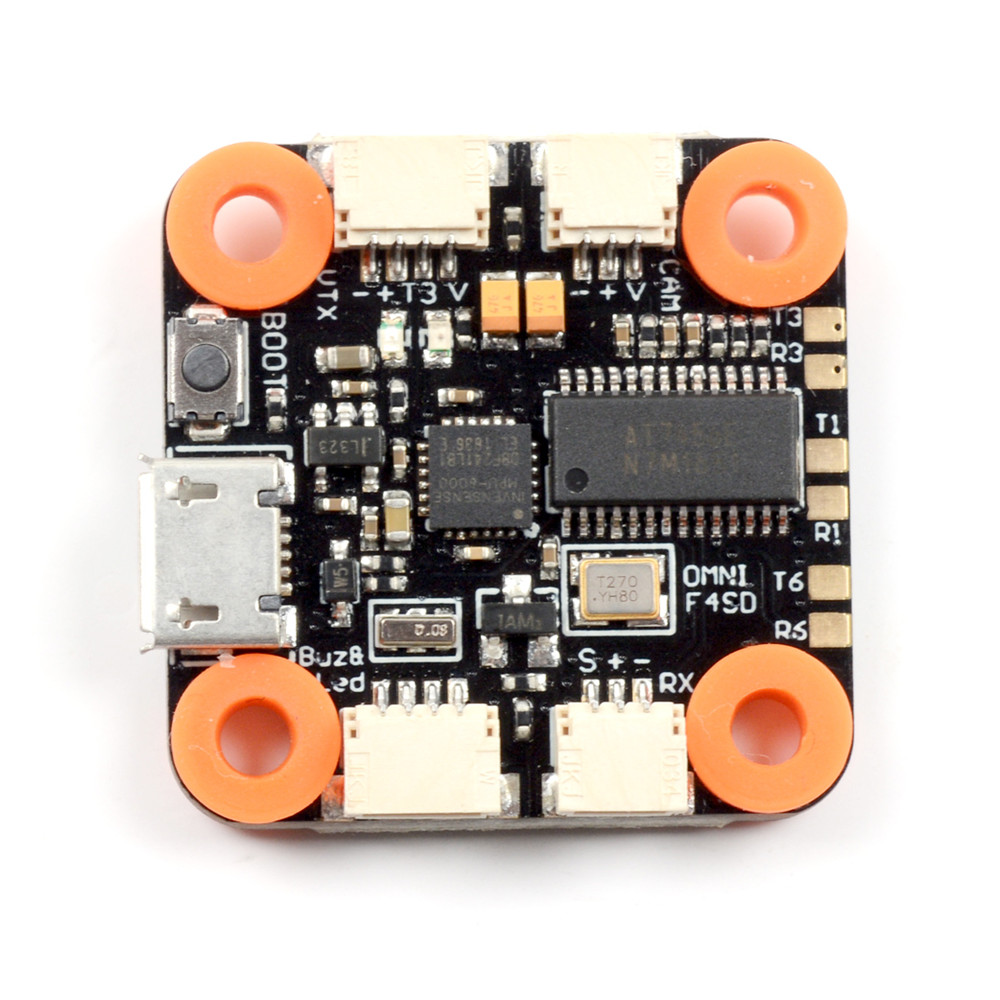

Omnibus F4 Flight Controller ( Middle Level)
Firmware: betaflight 3.5.3 (OMNIBUSF4)
OSD Firmware: Betaflight OSD
Video Camera Voltage: 5V / BAT
Support Voltage monitor, buzzer and RGB LED
Support DSMX, SBUS and PPM Receiver
Board Size: 25×25mm ( 20x20mm Mounting Hole)
Weight: 4.5g

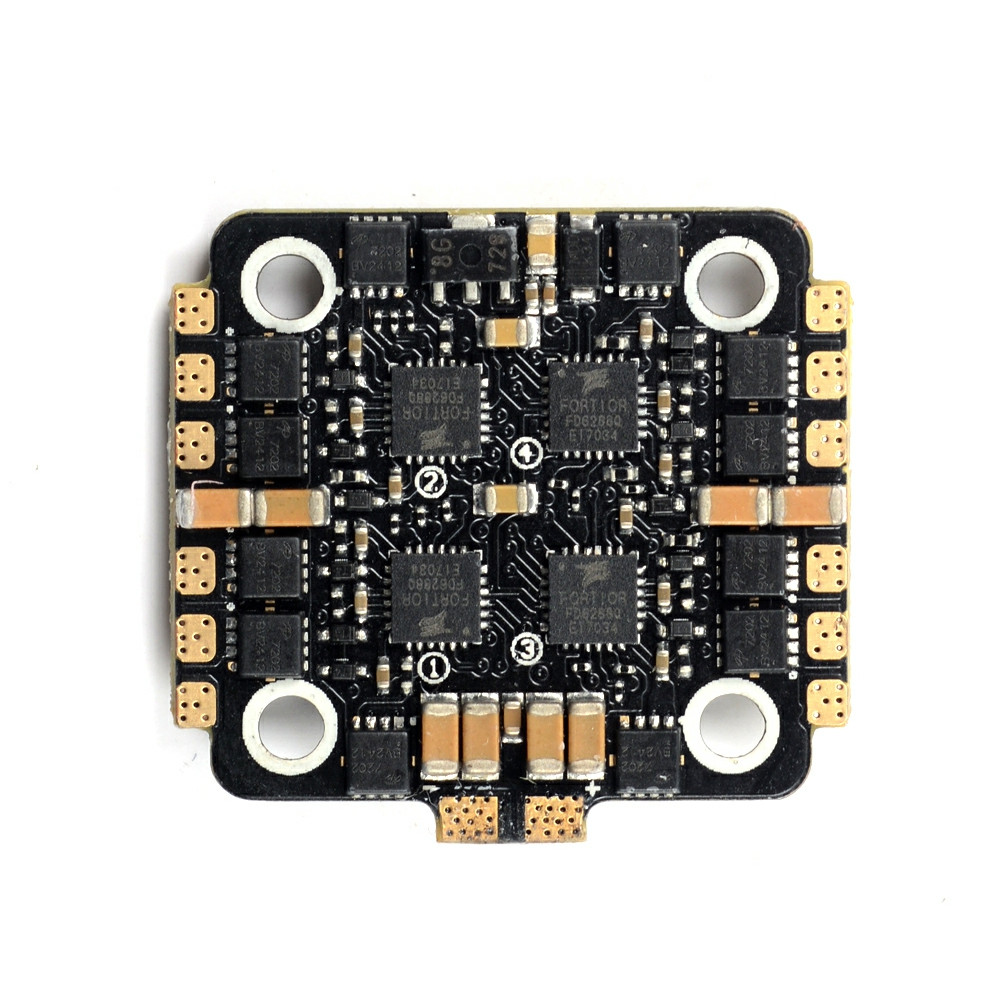

20A BLheli_S 4 In 1 Brushless ESC ( Bottom Level)
Input Voltage: 2-4S (7.4V-16V)
Con. Current: 20A
Peak Current: 30A (6s)
Oneshot 125/42 : YES
Dshot 150/300/600: YES
BlheliSuite Configurable: YES
Firmware Version: BLHeli_S/Dshot 150/300/600 16.6
Board Size: 30×26.5x6mm
( 20x20mm Mounting Hole)
( 20x20mm Mounting Hole)
Weight: 4.6g
Package Included:
1x F4 Flight Controller Board
1x VTX Board
1x 20A 4 In 1 ESC
1x Bag of screws
1x F4 Flight Controller Board
1x VTX Board
1x 20A 4 In 1 ESC
1x Bag of screws
3x Cable
