Description

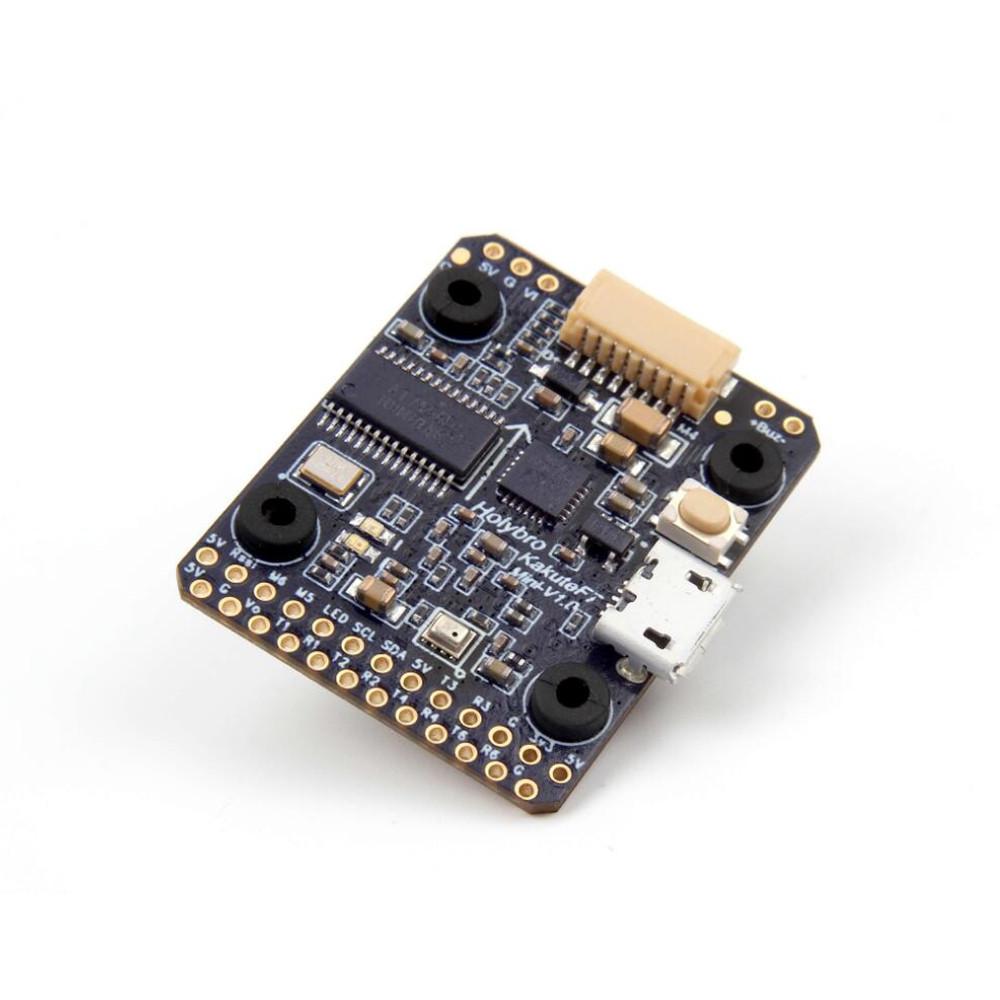

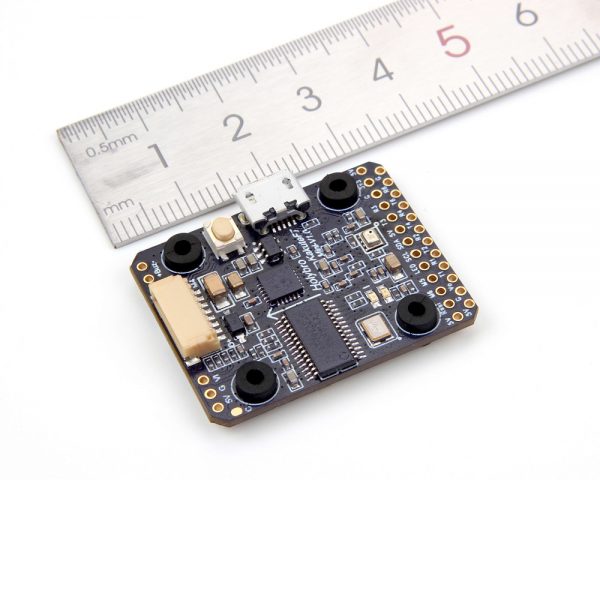

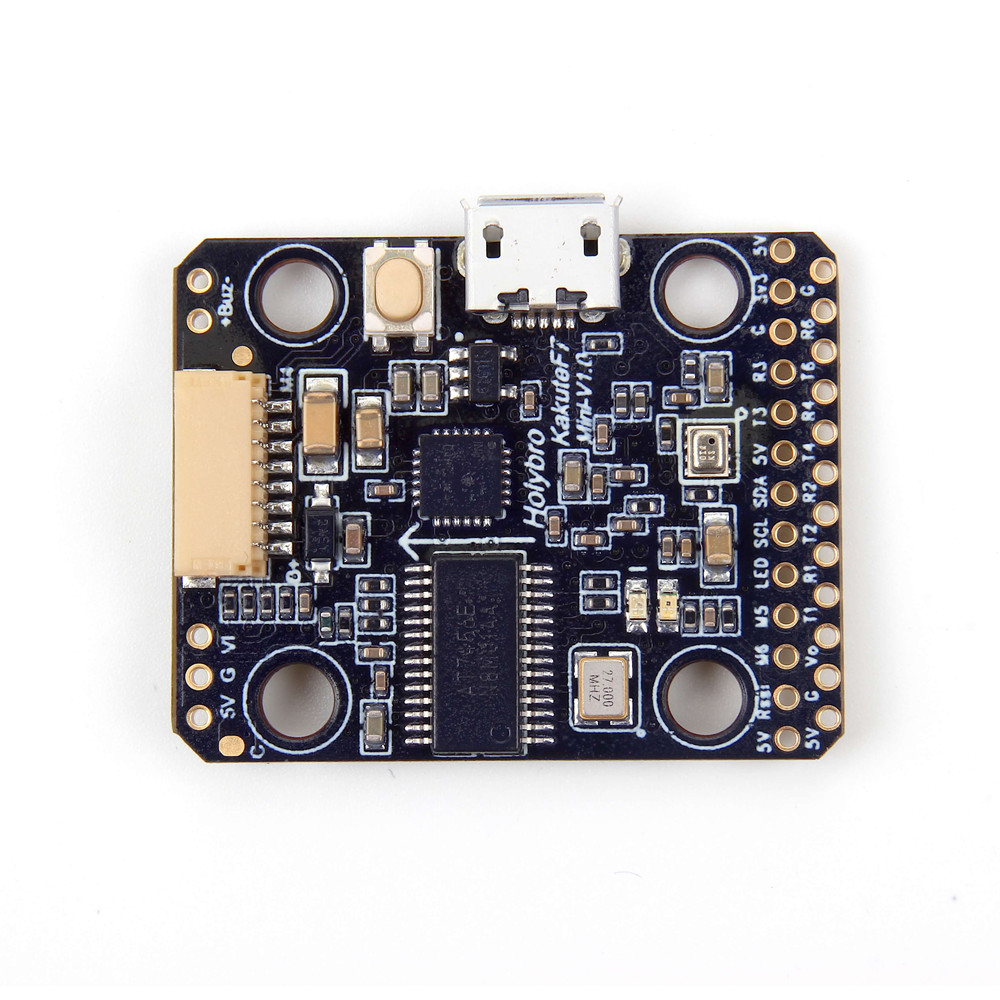

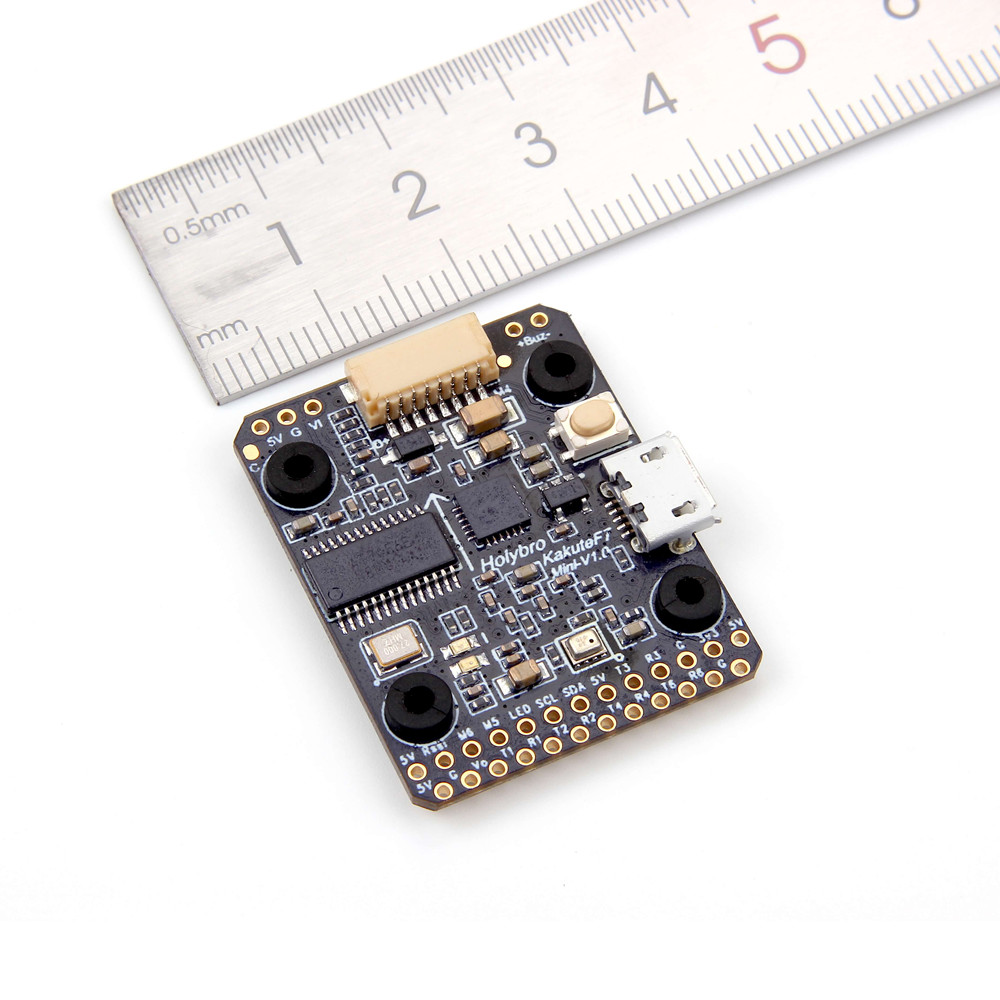

Holybro KAKUTE F7 Mini Flight Controller with Barometer 2-6S for RC Drone FPV Racing
Specification:
Brand Name: Holybro
Model: KAKUTE F7 Mini
Item Name: F7 2-6S Flight Controller with Baro
MCU: STM32F745VGH6 32-bit processor,216MHz, 320Kbytes RAM, 1Mbytes Flash
IMU: ICM20689 (SPI)
Barometer: BMP280
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
5.5 hardware UARTS (UART1,2,3,4,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 1.0A max
3.3V Power Out: 0.2A max
Dimensions: 33x26x6mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 4g
Packag Included:
1x F7 Flight Controller Board
1x M2 Rubber rings
1x JST SH 8pin 30mm cable
1x JST SH 8pin 150mm cable
