Description

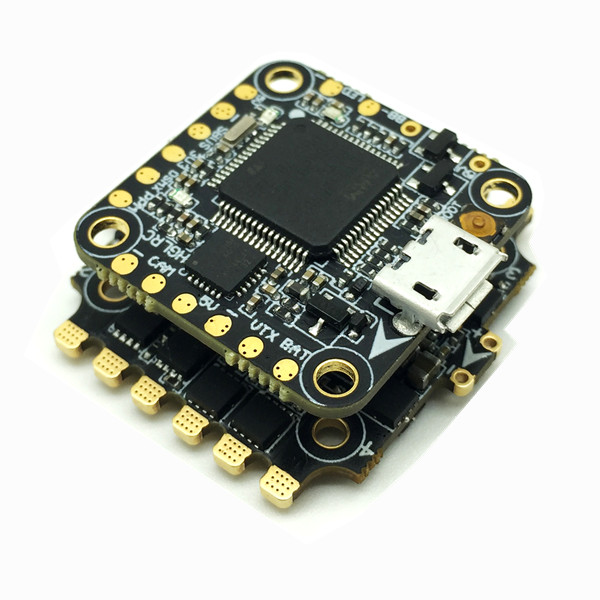

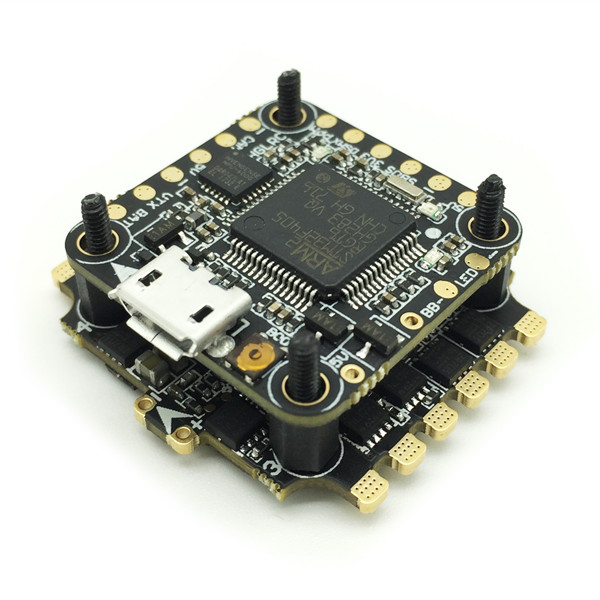

20x20mm HGLRC XJB F438 Flytower Micro F4 Flight Controller AIO OSD 5V BEC & 33A BLheli_S ESC
Specification:
Brand Name: HGLRC
Item Name: F4 FC with 33A 4 In 1 ESC Flytower
Mounting Hole: 20x20mm
Flytower Weight: 8.4g
Application: for 65mm-250mm Frame Kit
Top Level: Micro F4 Flight Controller ( DShot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Weight:3.7g
Support Subs/PPM/DSMX receiver
Bottom Level: 33A 2-4S 4 In 1 ESC
Input Voltage: 2-4S Lipo battery
Constant Current: 33A
Peak Current: 38A
BEC Ouput: NO
Firmware: BLheli_S 16.5
Size: 27x27mm (main board)
32x32mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4.7g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
Package Included:
1x Micro F4 Flight Controller AIO OSD BEC
1x 33A BL_S 4 In 1 Brushless ESC
1x Capacitor
1x Bag of Screws
,
,
,
,
,
,
