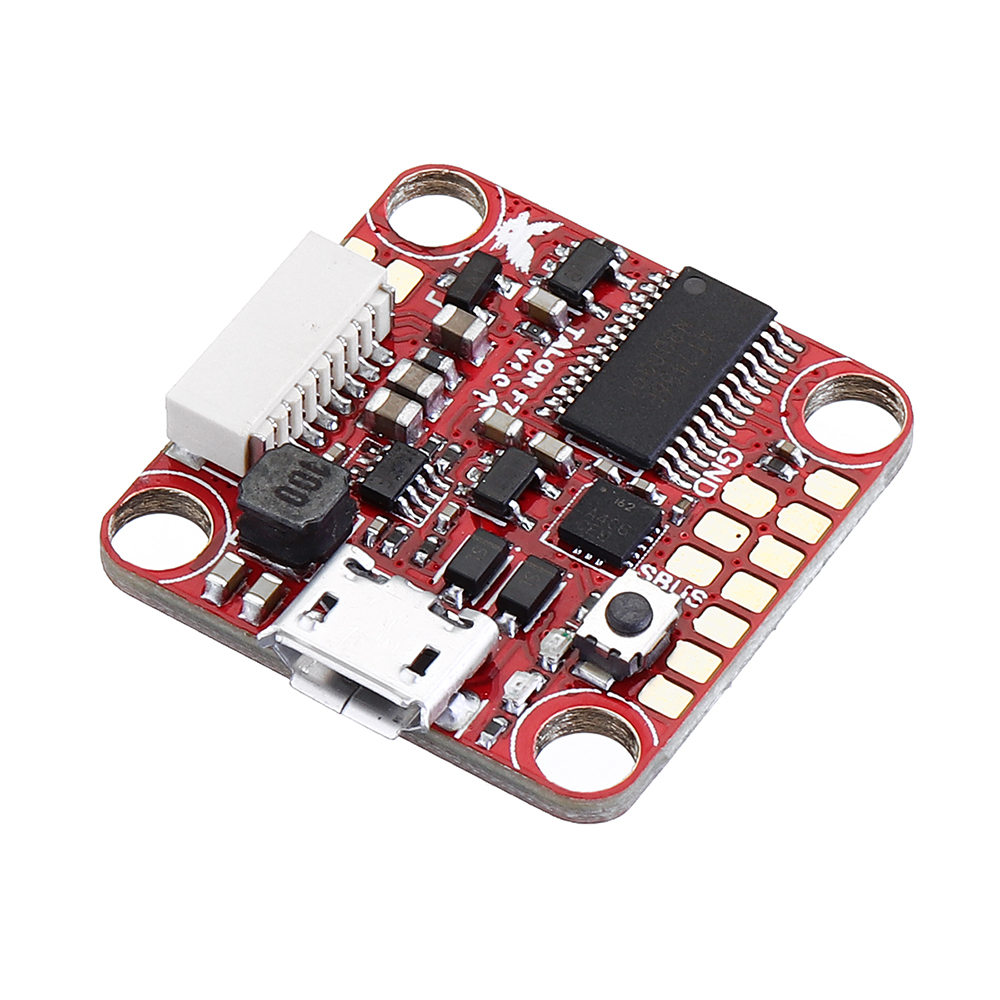

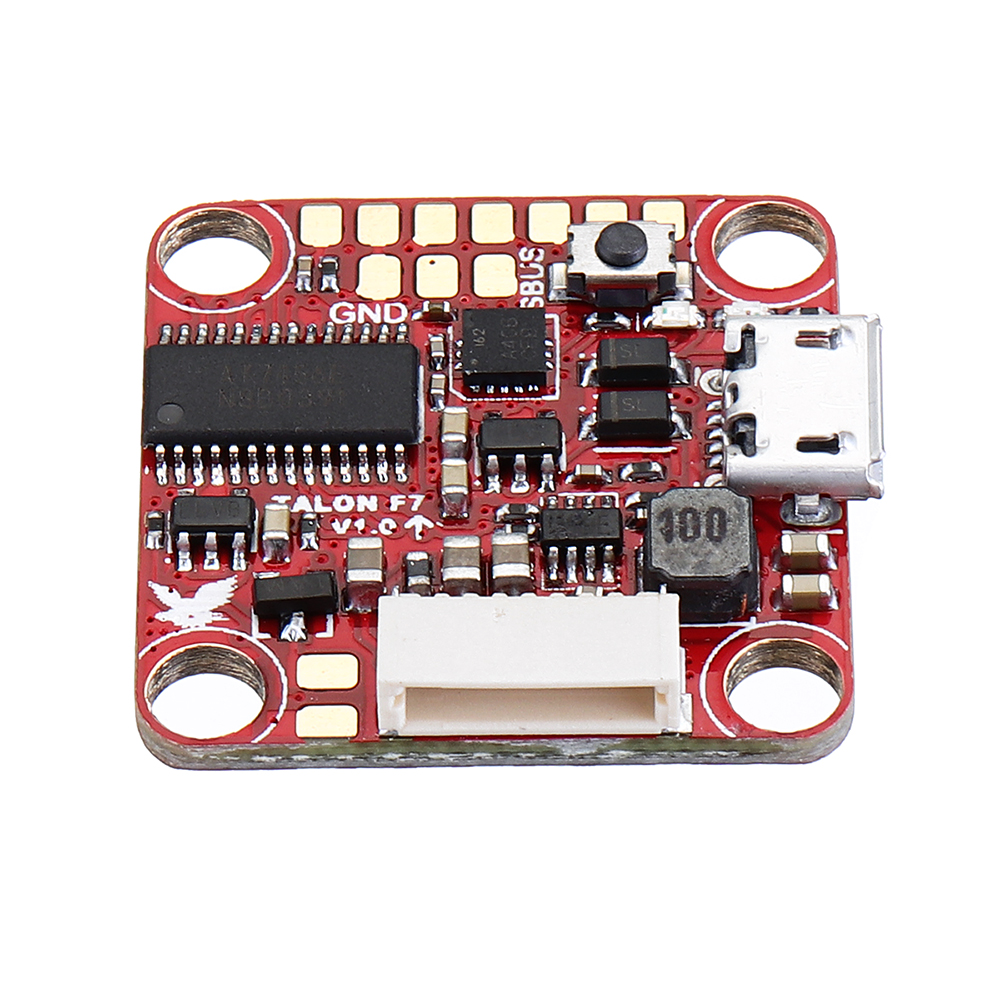

20x20mm Heli-Nation Talon F7 Flight Controller AIO Betaflight OSD 5V BEC for RC Drone FPV Racing
Specification:
Item Name: F7 Flight Controller Integrated with OSD BEC
Model: Talon F7
MCU: STM32F722RET6 216MHz
– 6-Axis ICM20602 32K
– Built in Betaflight OSD
– Up to 8S (36V) direct battery power
– Buzzer pads for external buzzer
– Build in voltage monitoring resistor
– With 5V 2A BEC Ouput
– Dedicated LDO for gyro for cleaner gyro signal
– Dedicated LDO for OSD for cleaner OSD signal
– Led strip shares 5V with 5V/2A BEC
– 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
– Built in camera control pin with resistor and capacitor
– 4 Full UARTS with RX/TX pins
– Logical pin layout for cleanest build possible
– 8 pin 4 IN 1 ESC plug (Direct solder motor ports underneath)
– Remap able LED pad for additional motor output
– TX3 & RX3 can be used for I2C for external compass
– 5V or 3.3V selectable receiver power
– 5V, VBAT selectable VTX and CAM power
UART Setting Example (free configurable)
UART1: Peripherals – TBS Smart Audio OR IRC Tramp
UART2: set Serial RX ( for Crossfire)
UART3: set Serial RX ( for Frsky SBUS )
UART4: Telemetry Output – SmartPort (Frsky)
UART5: Sensor Input – ESC
UART6: Peripherals – Runcam Device

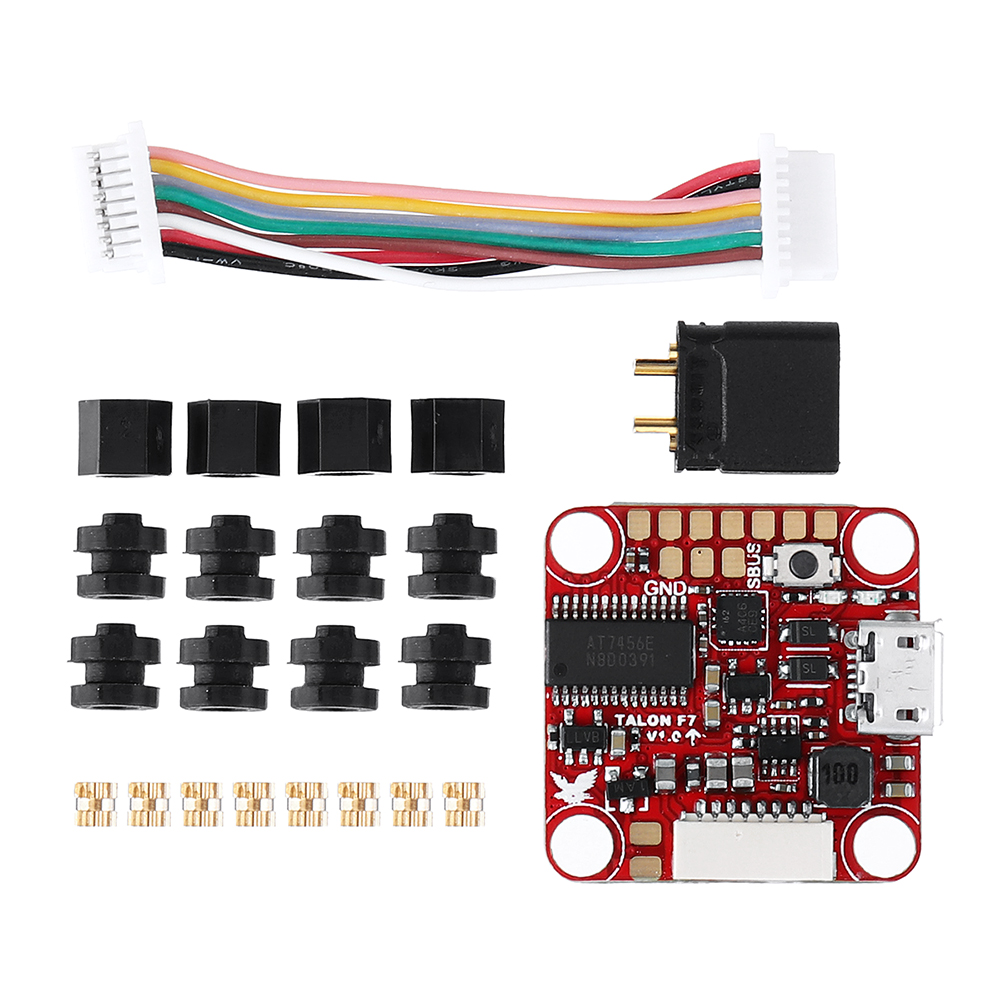

Package Included:
1x CLRacing F7 Flight Controller Board
1x Pin Connector (Aikon compatible)
8x Grommets

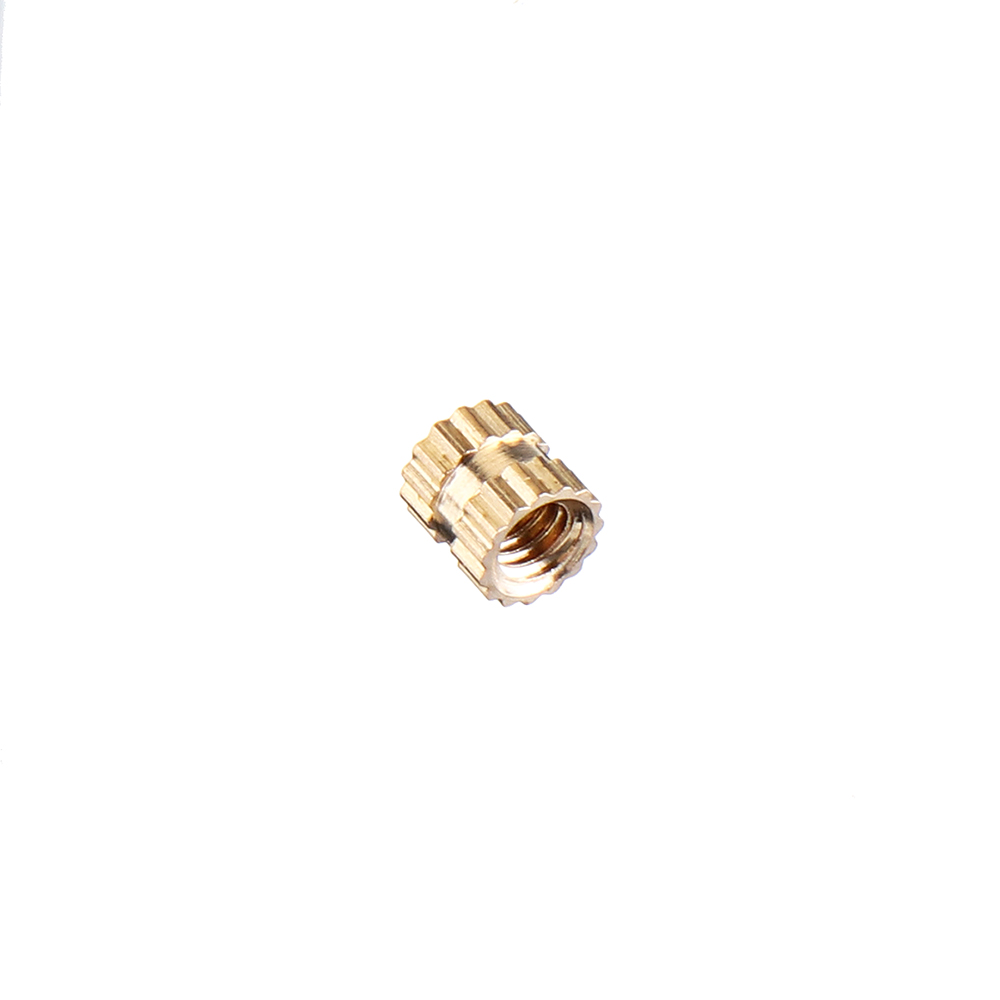

1x bag of M3 to M2 nut adapters

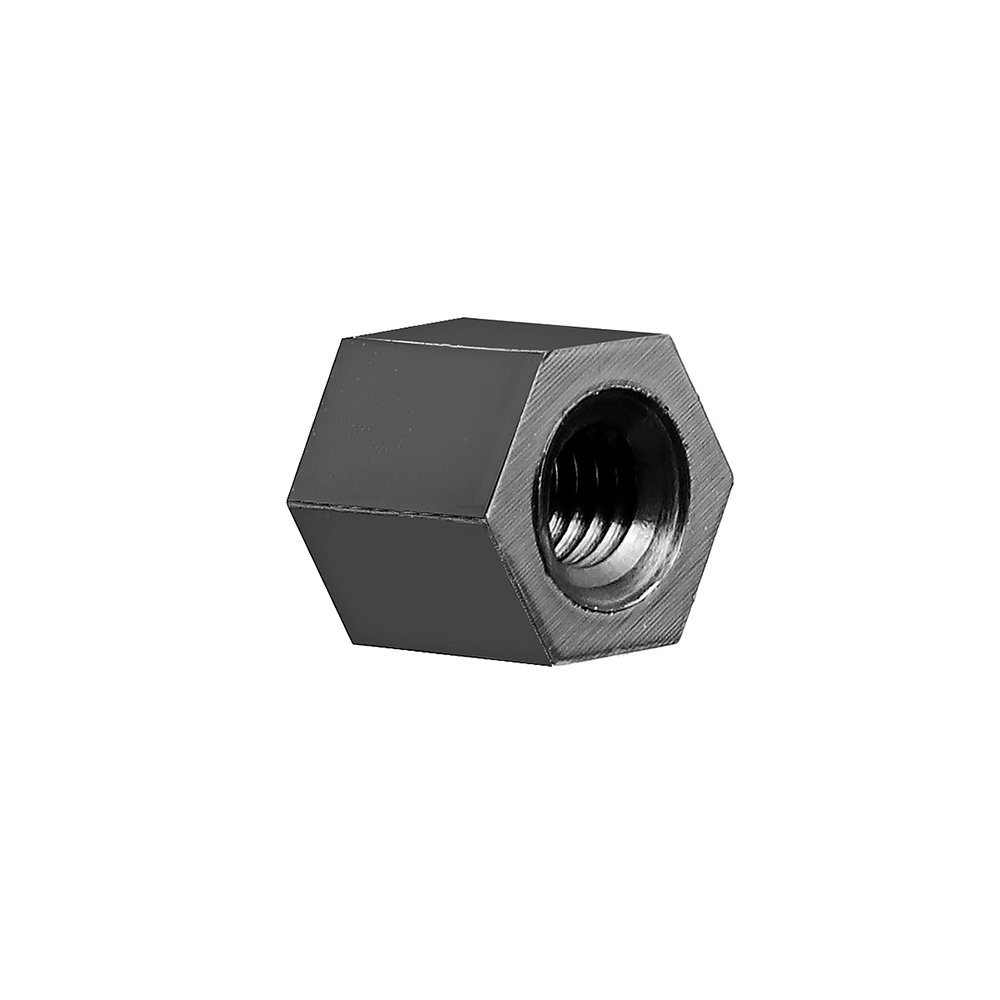

1x bag of M3X5 standoffs
8x Grommets
1x bag of M3 to M2 nut adapters
1x bag of M3X5 standoffs
