Description
20x20mm F7 NXT NANO 2-6S STM32F722 Flight Controller W/ Betaflight OSD 5V 3A BEC for FPV RC Drone
Specification:
Item name: F7 NXT NANO Flight Controller
Board size: 27*27mm
Mounting hole: 20*20mm, M2.5
Weight: 3.5g
Supply voltage: 2-6S
Processor: STM32F722RET6
Sensor: ICM20608 32K
Receiver interface: PPM,SBUS,DSM2/DSMX,IBUS
LED_Strip interface
Buzzer interface
Built-in Betaflight OSD
Built-in 5V 3A BEC
Built-in BLheli suite ESC programming
Built-in voltage detection

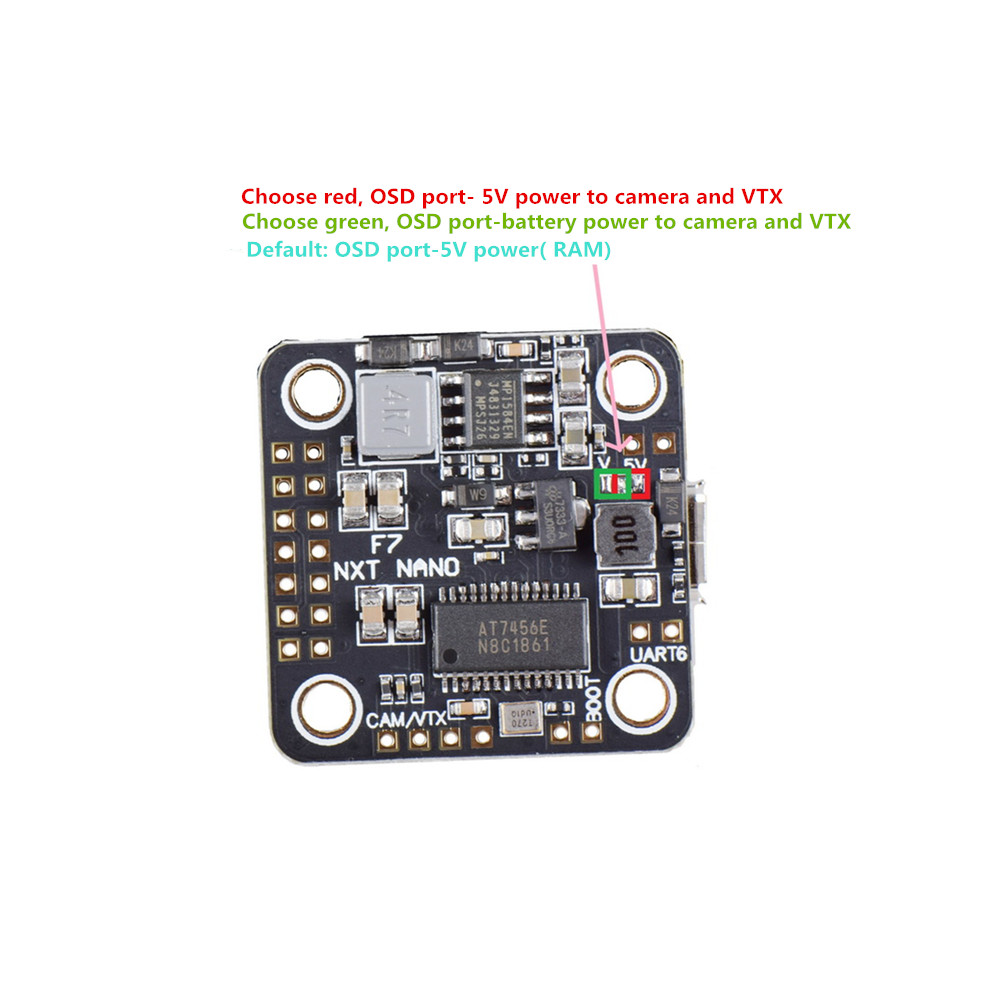

Built-in LC filter, camera and VTX input voltage can be selected from 5V and battery voltage(5V in default)
Support DSHOT ESC
Reserved 4 UARTs (UART1,UART2,UART4,UART6)
Receiver configuration:
-DSM, SBUS, PPM and IBUS receiver input, please configuire RX1 as input interface.
Package included:
1x F7 NXT NANO flight controller
1x 6P*1.0MM cable
