Description

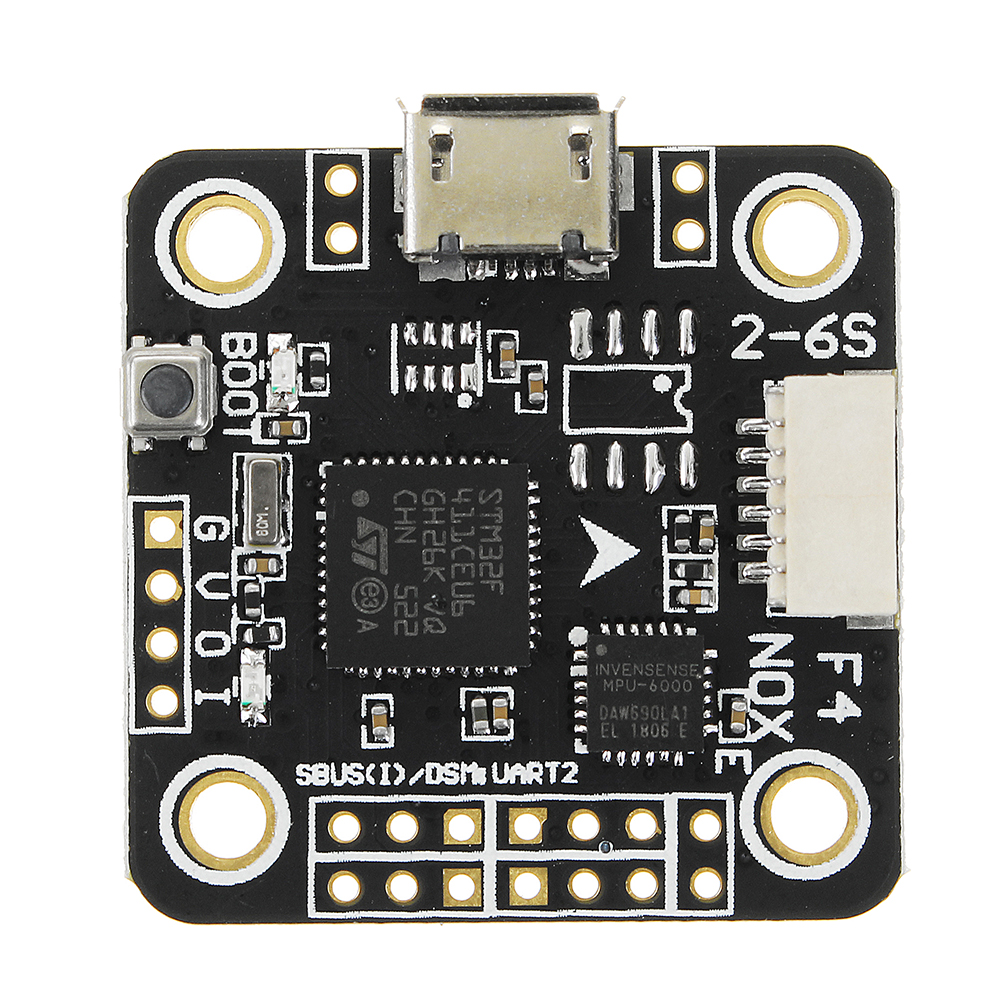

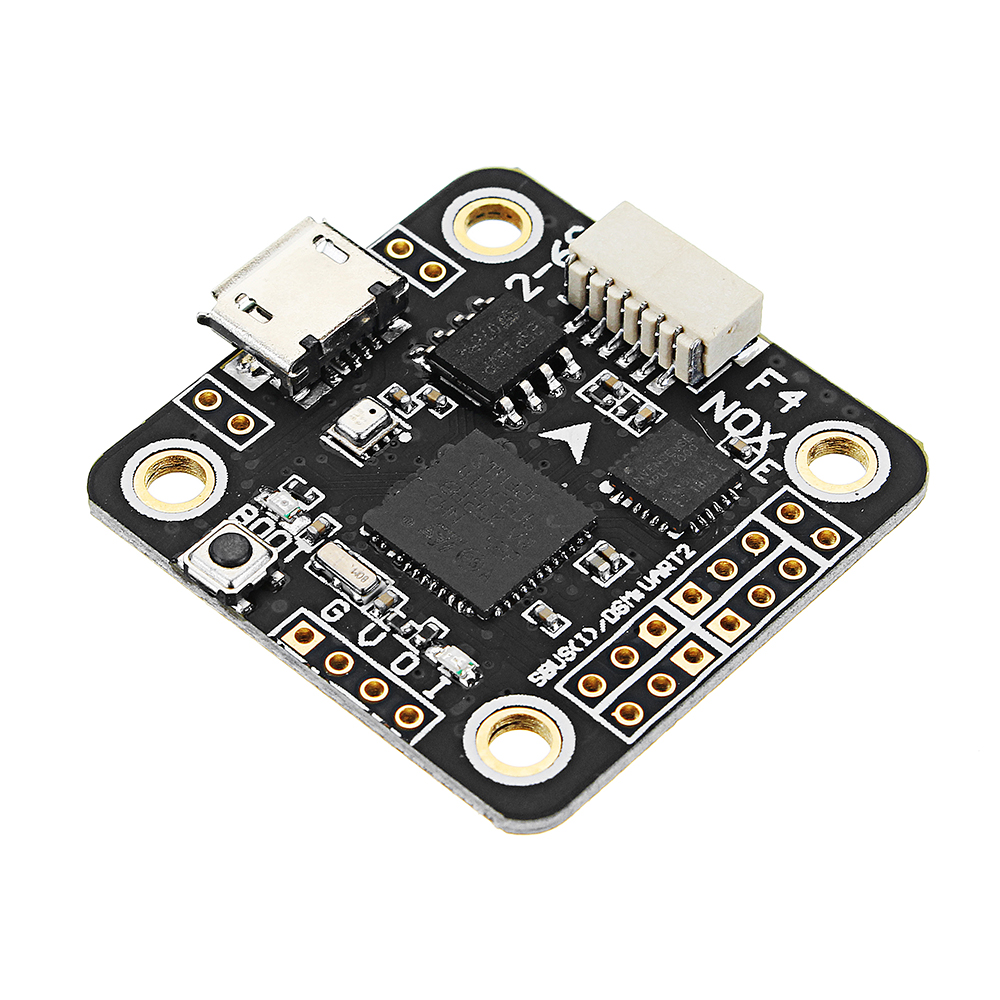

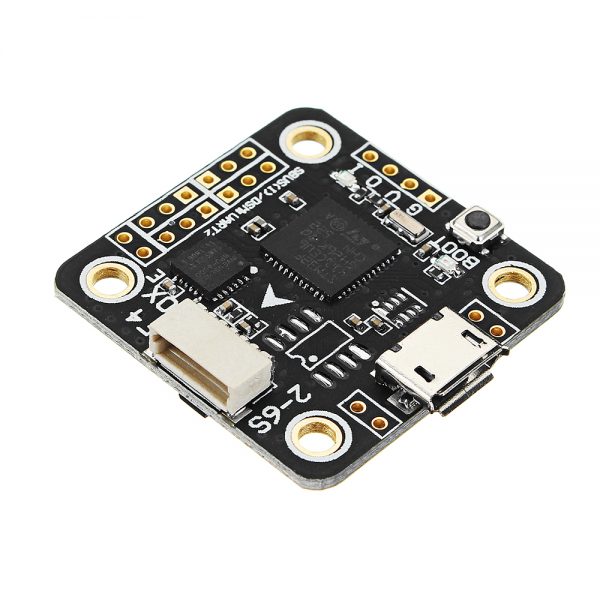

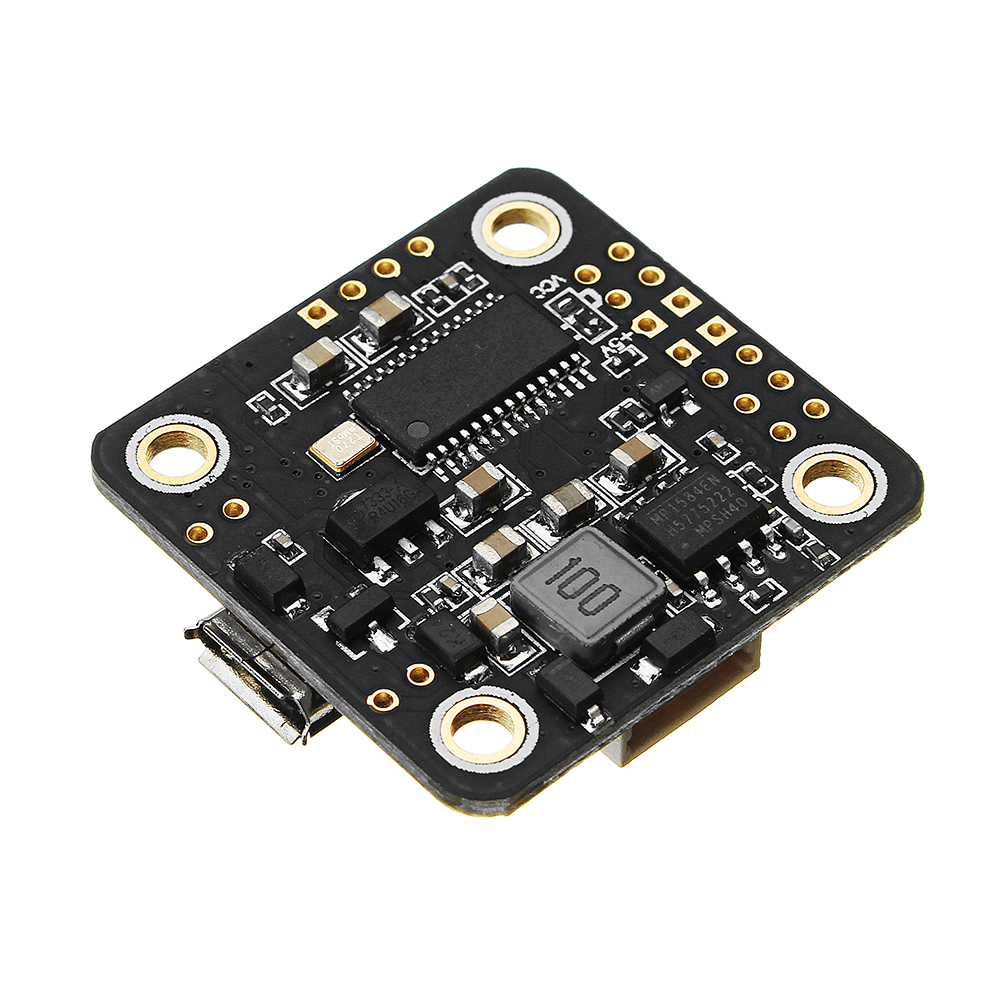

20x20mm Betaflight F4 Noxe MPU6000 Flight Controller AIO OSD 5V BEC Built-in LC Filter
Specification:
Item Name: Betaflight F4 Flight Controller
Model: F4 Nox4
Version: Acro Version / Deluxe Version
Acro Version: Without Barometer and Blackbox
Deluxe Version: With Barometer and Blackbox
CPU: STM32F411C
MPU: MPU6000
Input Voltage: Support 2-4S Lipo Input
Firmware: betaflight_3.3.0_NOX
Built-In Betaflight OSD
Built-in 5V @ 3A BEC
Built-in LC Filter, support DShot, Proshot ESC
Support Spektrum 1024 /2048 , SBUS, IBUS, PPM,
and 3.3V Spektrum Satellite receiver
Size: 27x27mm
Mounting Hole: 20x20mm , M2.5

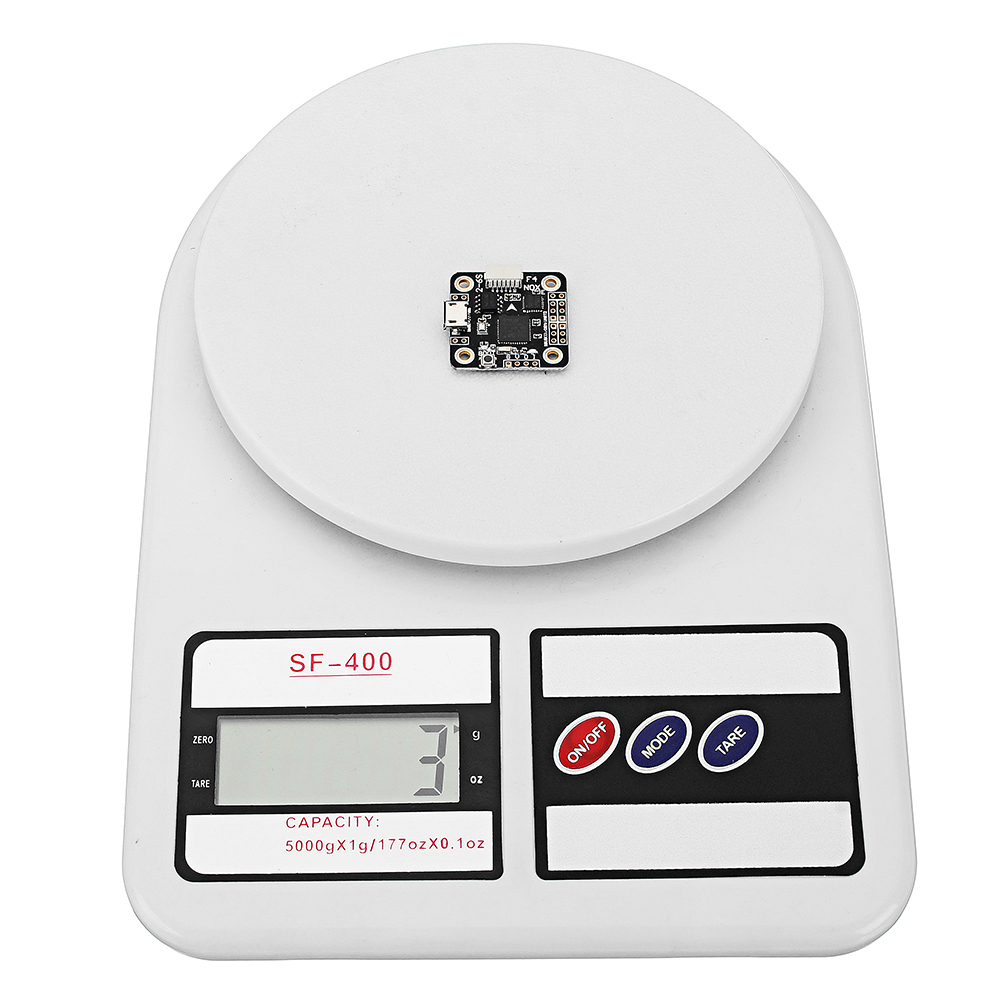

Weight: 3.3g
Application: for less than 150mm frame kit
Receiver Setting:
1. DSM / IBUS/SBUS Receiver, choose UART RX2
2. PPM Receiver, don't need choose UART Port
Package Included:
1x F4 Noxe Flight Controller
1x Cable
