Description

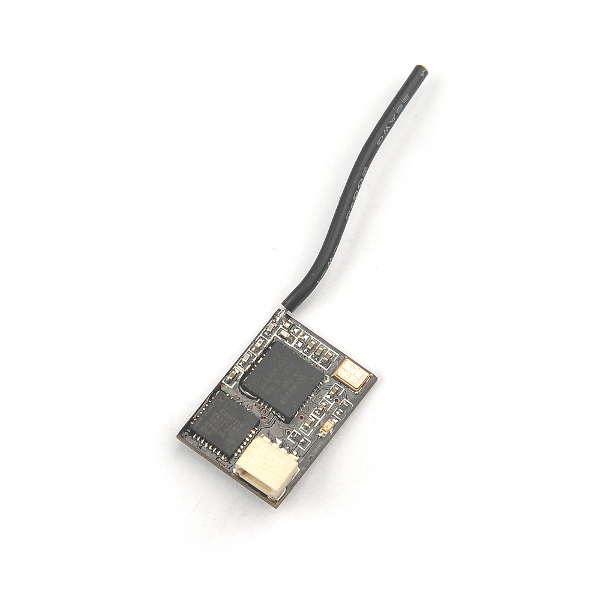

2.4G SP09X Micro DSM2/DSMX 3.3V-5V Satellite Receiver
Specification:
Item Name: 2.4G SP09X micro DSM2/DSMX Satellite receiver
Frequency range: 2.403-2.479Ghz
Input power: 3.3V — 5V
Response time: 22ms / 11ms
Resolution: 1024/2048
Display method: LED
Operating voltage: 3.3V
Working current: 60MA
Size: 18mm*13mm*5mm
Weight: 0.9 g
Antenna length: 30mm
Data format: Serial port
Protocol: DSM2/DSMX
Distance: no ground interference (1 m from the ground ) > 300m
Uses: Micro indoor/outdoor small aircraft./multi rotor
Compatible Transmitters: DSM2 / DSMX series of remote control
Bind procedure With F3 flight controller:
Connect Flight controller to computer and open Cleanflight configurator From CLI tab type: "set spektrum_sat_bind = 9" for DSMX or "set spektrum_sat_bind = 5" for DSM2
Type "save" and after Flight controller reboot remove USB cable (=Power off the board)

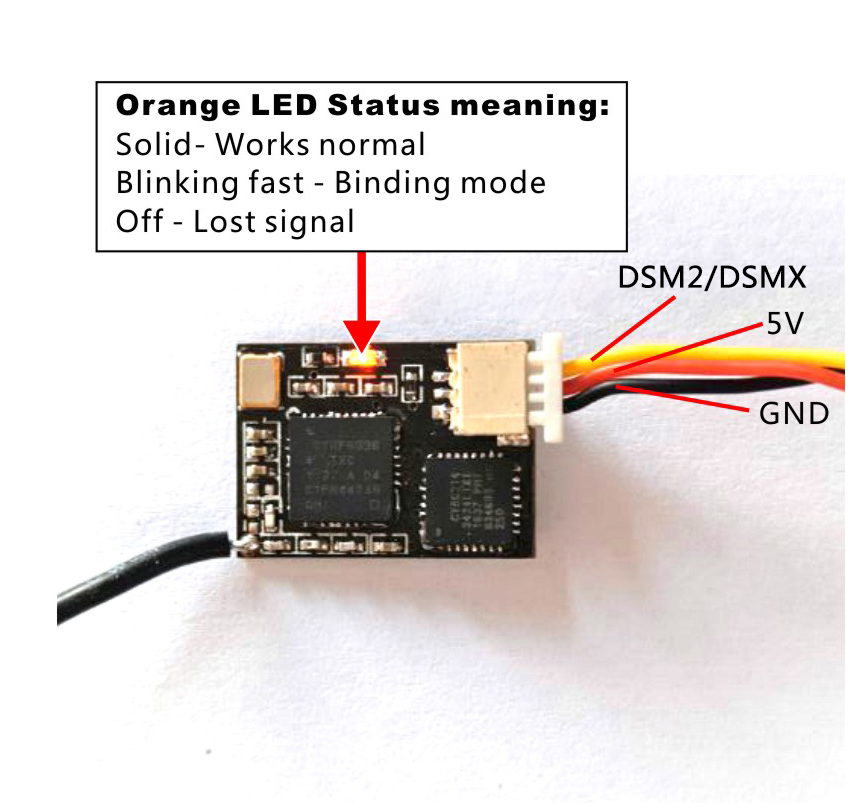

Wait a second and reconnect the USB cable. After cold start satellite led(Orange color LED) should start blinking and transmitter should be turned on while pressing the bind button
After binding satellite led should be solid. Connect Betaflight and use receiver tab to test that satellite is working correctly.
Final step is to go to CLI tab and type "set spektrum_sat_bind = 0" and then type "save". This must be done so that satellite doesn't go back to binding mode when the Flight controller is repowered again.

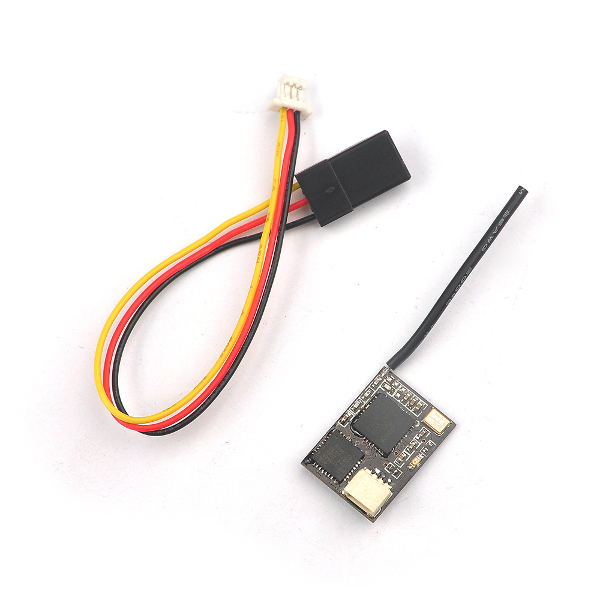

Package Included:
1x Receiver
