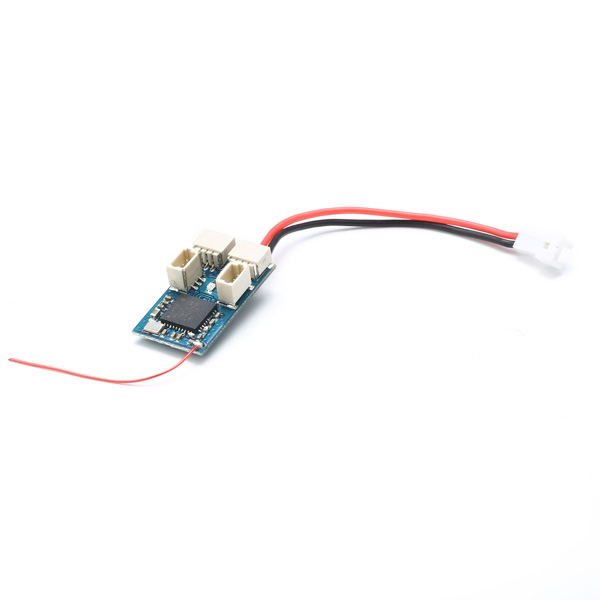

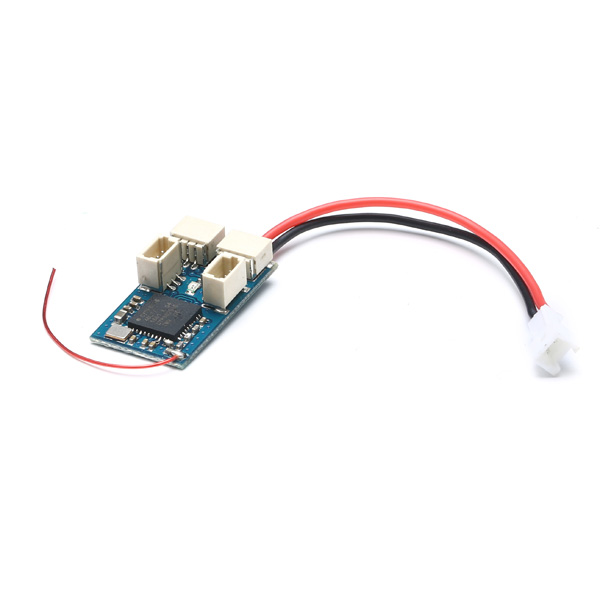

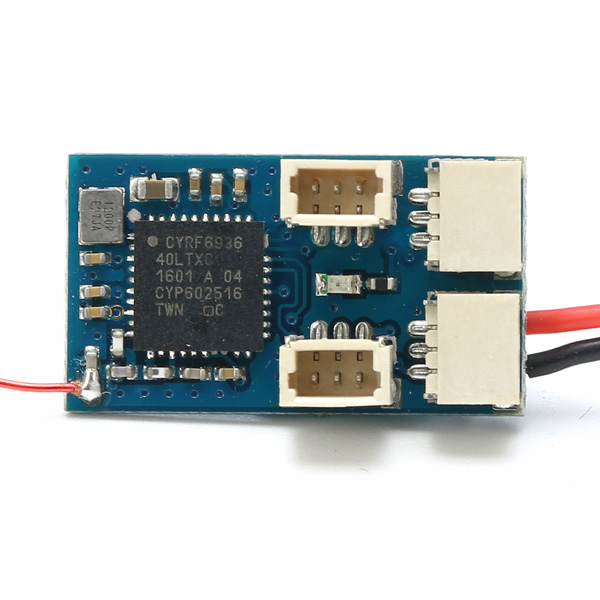

2.4G 4CH Micro Low Voltage DSM2/DSMX Compatible Receiver Built-in Brushed ESC
Description:
Item Name: Receiver
Channel: 4
Input Voltage: 3V – 5.5V
Weight: 1.4g
Dimension: 21.3×11.9×5.8mm
Connector Size: JST 1.0mm
Socket Size: 1.25mm 2P
Recommended Parts for This receiver (Not Included):
Servo: 1.7g Servo with JST 1.0mm Plug, Click Here
Battery: 1S 3.7V 100mAh LiPo Battery with 1.25mm 2P Plug, Click Here
Features:
Compatible with DSM2/DSMX transmitter.
Bulit-in 2A brushed ESC,supported external brushless ESC, no need to program.
The receiver signal can stay stable even if the voltage is 2.5V.
Improve signal interruption problem when micro receiver using a conventional 1S brushless motor.
How To Bind:
1. Insert the bind plug into the channel labeled "BIND" and power up the receiver.
2, set the throttle and control surface failsafe protection (recommended to set the throttle to a minimum, all the control surface is set to the middle position). Press and hold the bind button and turn on the remote control.
3, the frequency of the receiver LED flashes will change from fast to slow. A few seconds after the end of the binding, the receiver's LED will always be on. All failsafe protection settings are successful.
4. Remove the bind plug from the "BIND" channel. Re-power the receiver and all channels are working properly. To test the failsafe protection feature, roll the lever to the corner and turn off the control. The control surface and throttle will return to the original position where the failsafe was set.
Note:
No suitable for conventional wide voltage servos.
Reverse power supply will damage the receiver.
When use 1S battery, please use low voltage micro servo.

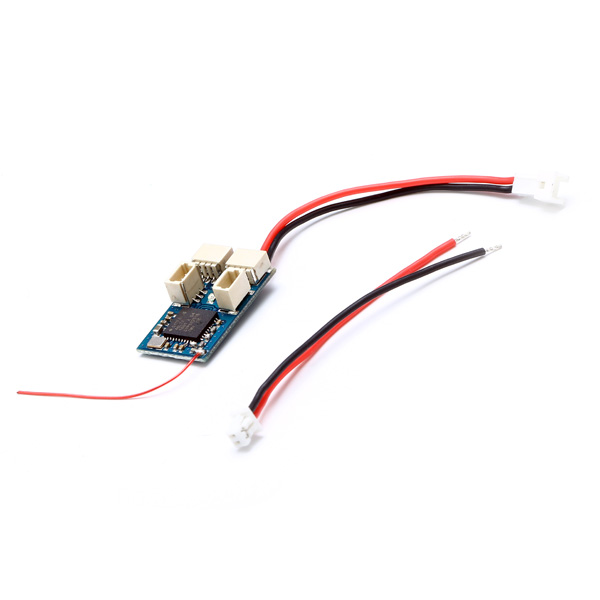

Package Included:
1x receiver
,
,
,
,
,
,
,
,
