Description
Feature:

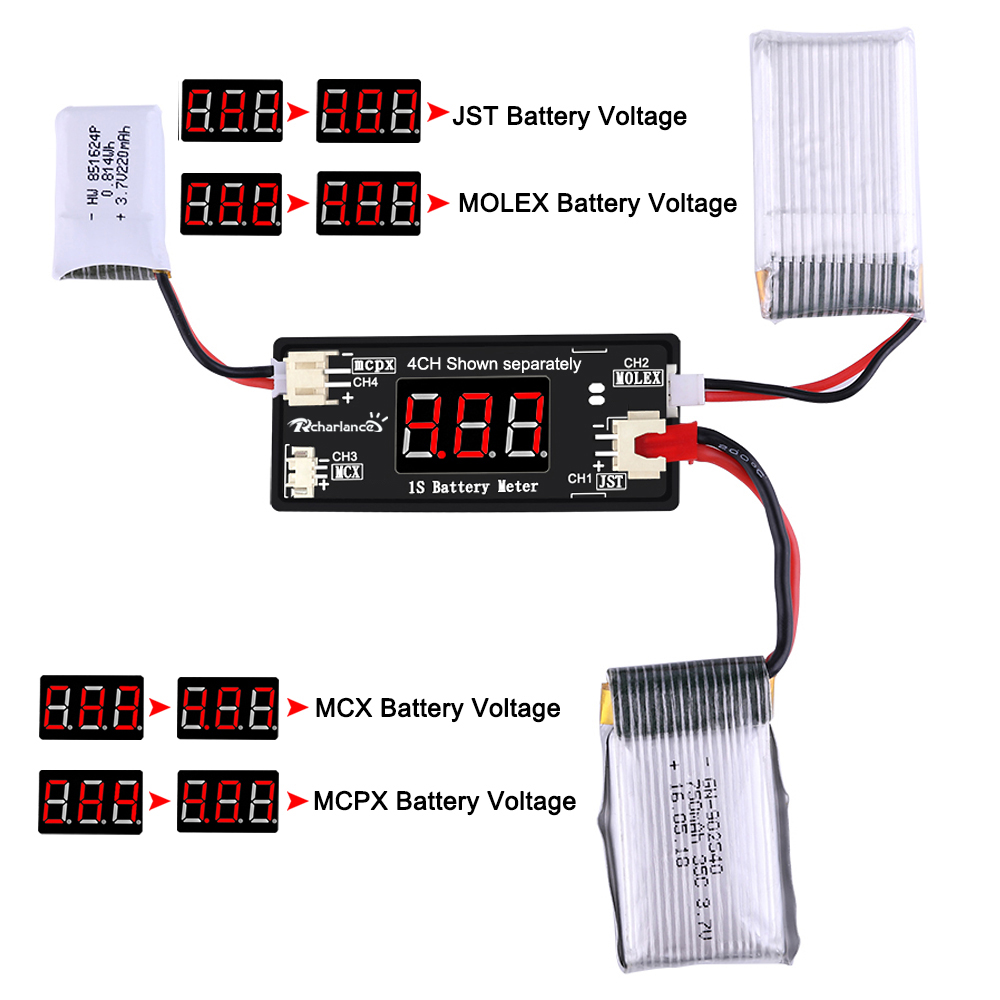

1.Support four standard micro UAV battery interface, plug and check,
2.0.36 inches red digital tube display, display battery voltage, battery voltage detection accuracy is accurate to 10mV
3.Supporting ports JST(2.54mm), MOLEX(2.0mm), mCPX(1.25mm), MCX(1.25mm)
4.Support lithium battery LiFe(3.3/3.65V), LiPo (3.7/4.20V),Li-Hv(3.8/4.35V)
5.Four battery interfaces support battery polarity reverse connection protection, four battery interfaces are supported LiFe,LiPo,LiHv
6.The 4 battery interfaces display the voltage independently, from CH1 to CH4
Specifications:

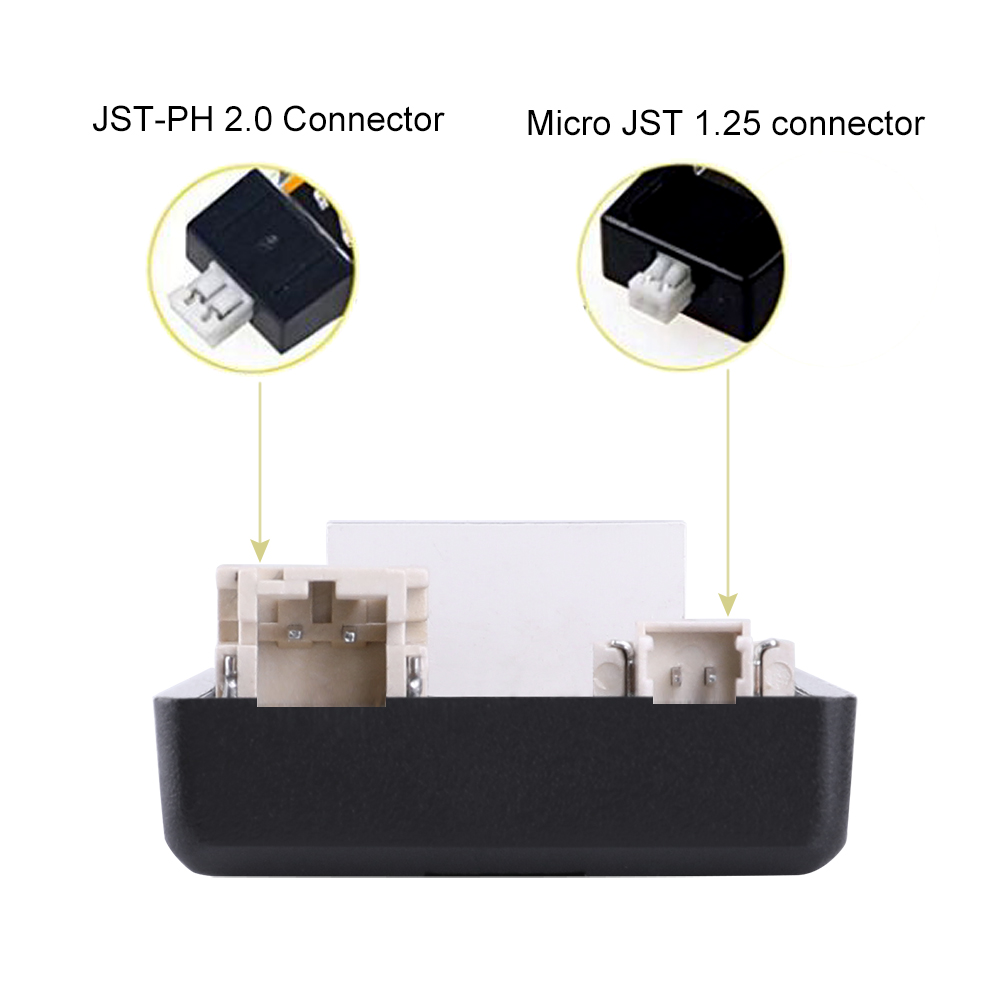

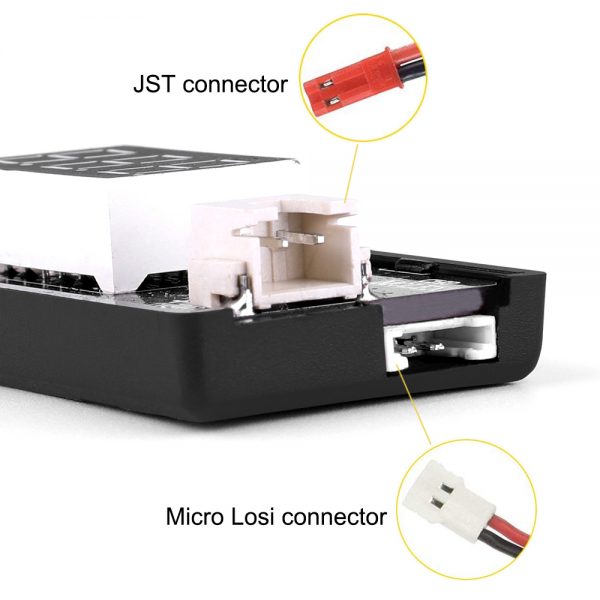

Connector: Micro JST 1.25, PH 2.0 Micro Losi and JST
Voltage: Works with regular and HV battery packs
Detection accuracy of voltage: 3.65V±0.01V ,4.20V±0.01V, 4.35V±0.01V
Battery voltage input range: 2.50~4.35V @1Cell LiFe,LiPo,Li-Hv
Weight: 10g
Dimensions: 73x25x15mm
Working tem: -20~75℃
Storage tem: -25~85℃

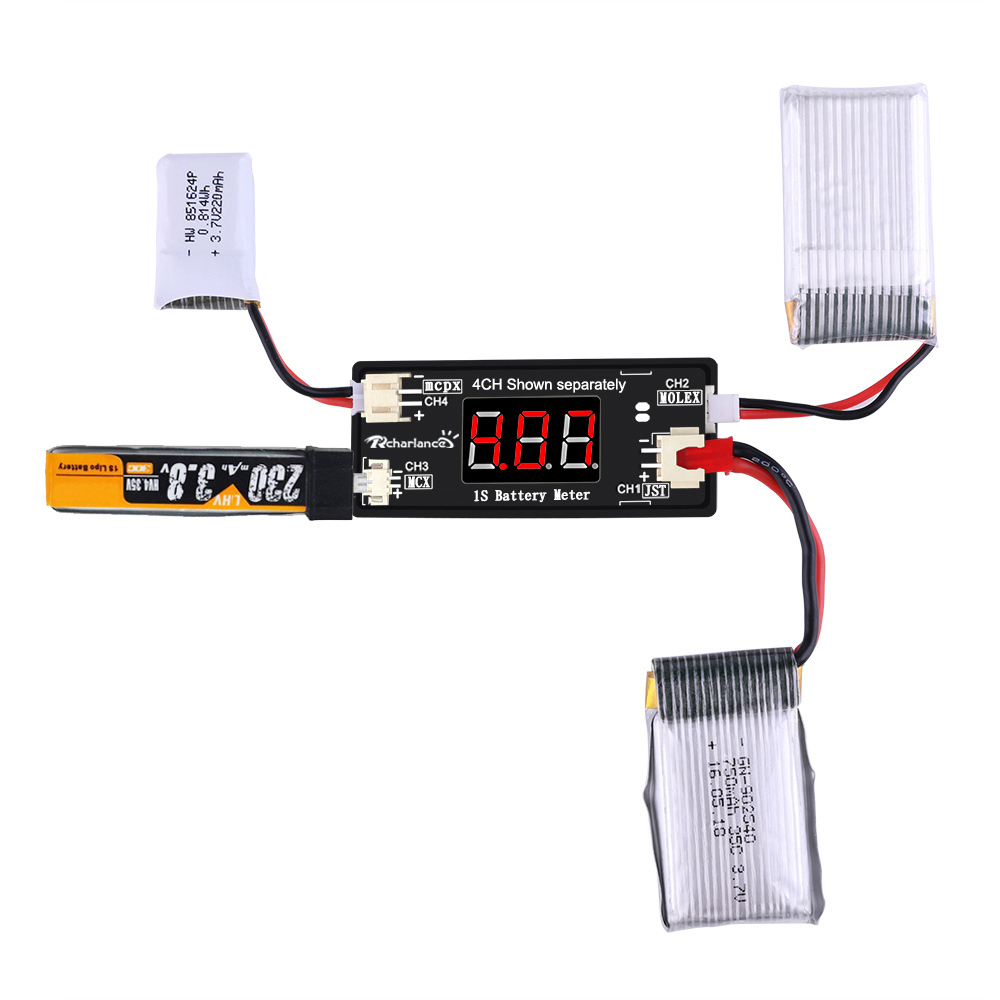

Note: Four batteries can be tested simultaneously
Package Included:
1 X 1S LiPo Battery Voltage Checker
