Description

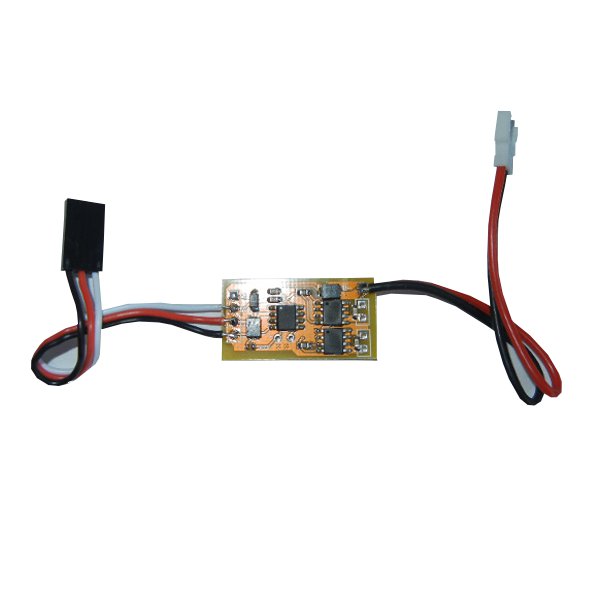

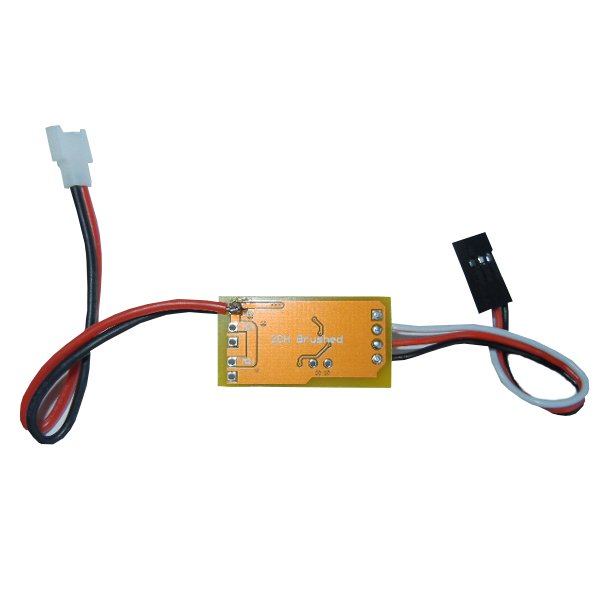

1S Dual Way Unidirectional PPM ESC For 130 N30 8520 720 Coreless Motor RC Airplane
Description:
Item Name: Dual Way Unidirectional PPM ESC
Version(optional): Mixed control mode(PPM signal), Normal mode (PWM signal)
Working Voltage: 3.6-5.5V
Working Current: 4A Unidirectional
Application: Suitable for 130,N30,Coreless 8520,720 motor.
Difference Between Two Versions:
Normal Mode: Receive PWM singal,connect throttle channel, motor dual way synchronous output,suitable for dual motor small RC Airplane.
Mixed Control Mode: Only receive PPM signal, mix control the direction and throttle in PPM signal,suitable for small PPM receiver,usually used on small RC airplane and RC boats that have no rudder and with motor speed difference.
Features:
Motor signal PWM (1000-2000), (1100-1900) automatic adaptation.
Start when throttle PWM signal is less than 1150.
With start prompt,with failsafe function.
Package Included:
1x 1S Dual Way Unidirectional PPM ESC
