16x16mm TeenyF4 Pro 1-2S Flytower F4 OSD FC w/ Buck-Boost Converter & 5A BL_S DShot600 4In1 ESC

$30.37

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

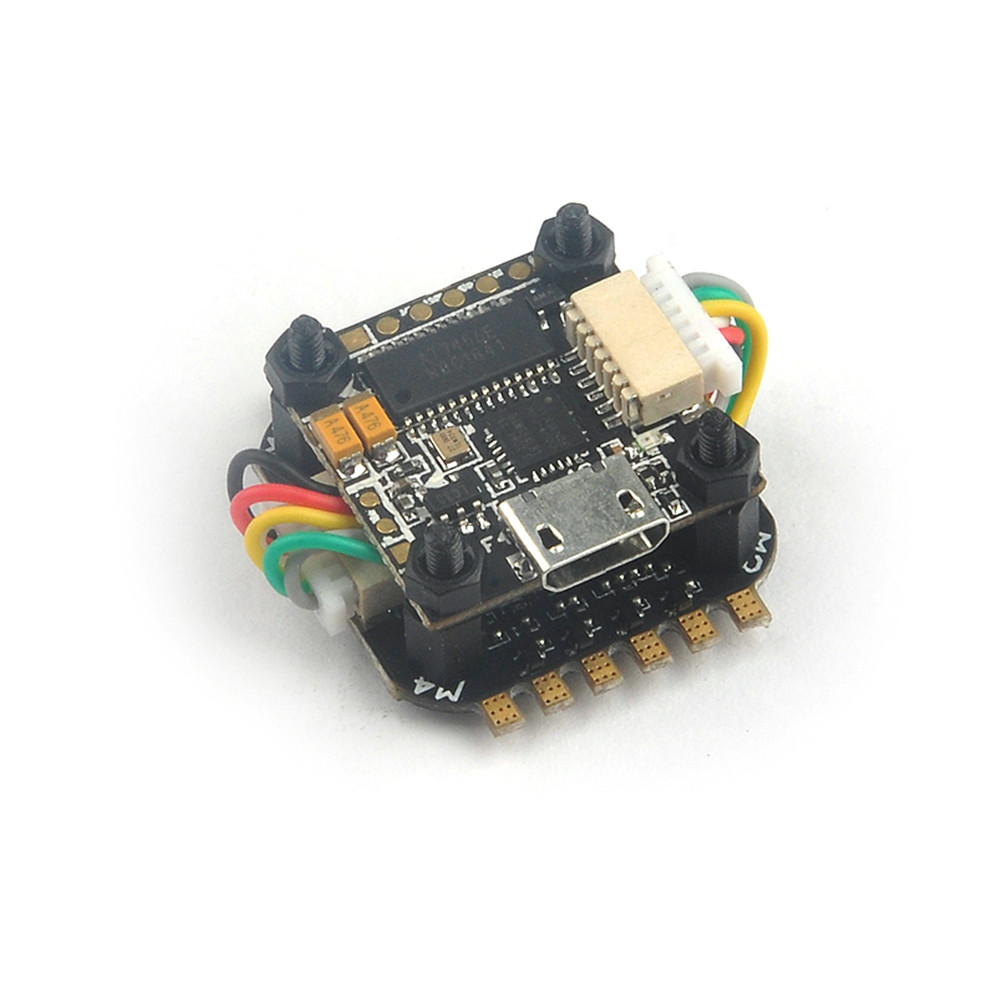

16x16mm TeenyF4 Pro 1-2S Flytower F4 OSD FC w/  Buck-Boost Converter & 5A BL_S DShot600 4In1 ESC

Specification:

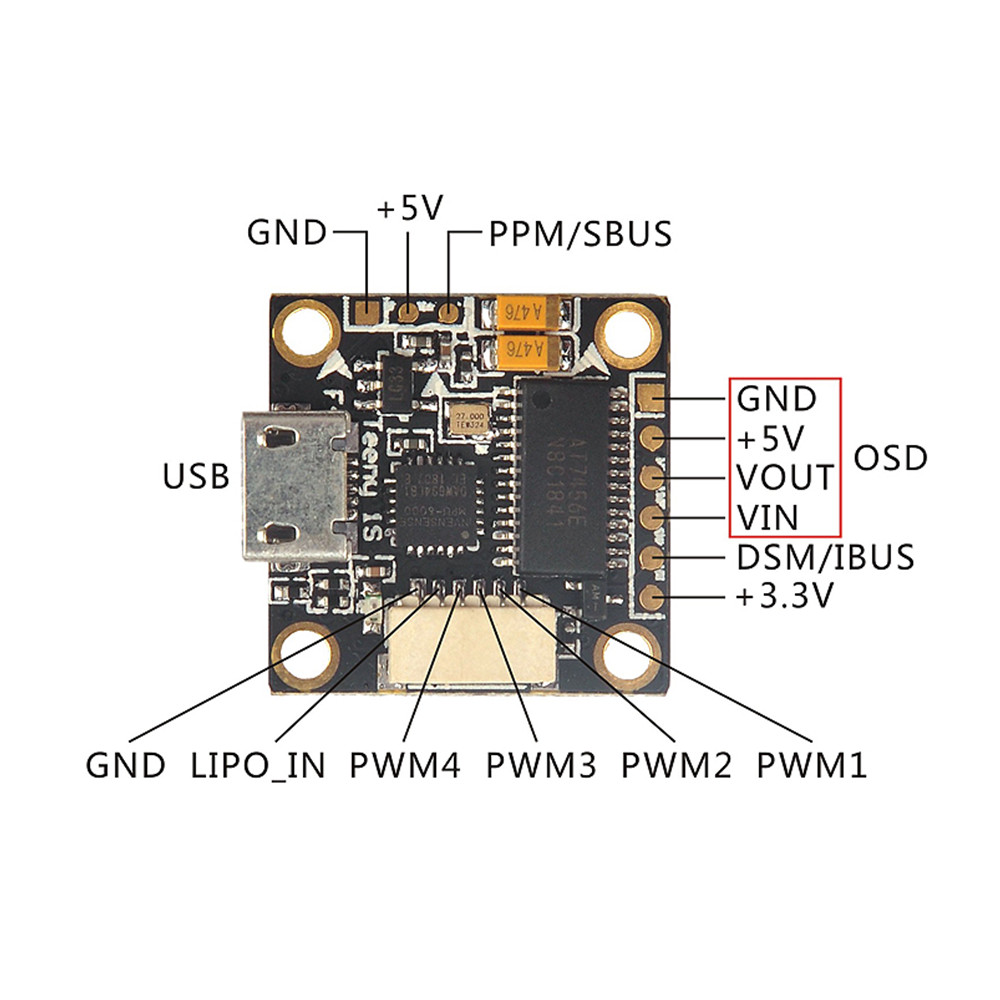

Flight Controller: ( Top)

Item name: TeenyF4 Pro flight controller board
Model: TeenyF4 Pro

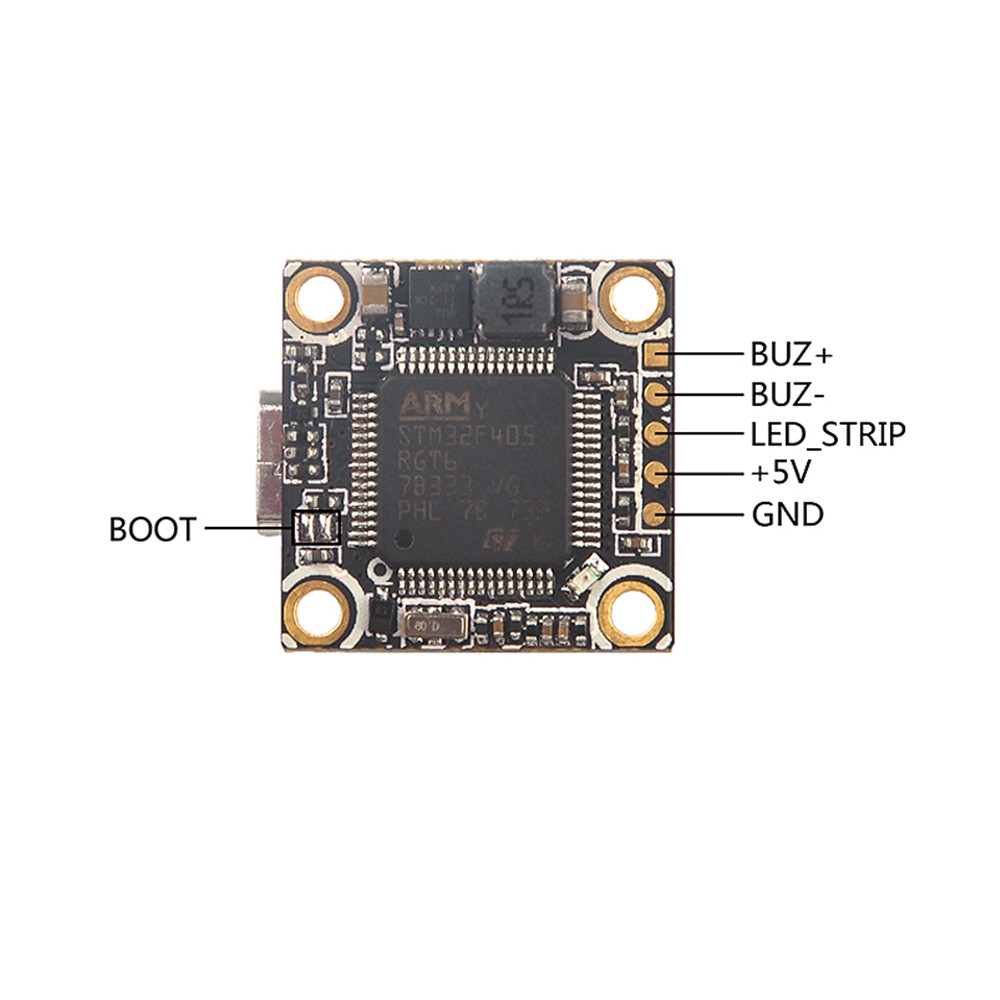

Processor: STM32F405RGT6
Sensor: MPU-6000 ( connected by SPI)
Firmware Version: betaflight_3.2.0_OMNIBUSF4SD
– Built-in betaflgiht OSD
– Built-in Buck-Boost Converter
Input Voltage: 1-2S Lipo
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.

Size: 20*20mm
Mounting hole: 16*16mm
Mount Hole Diameter: 2mm  ( M2 )
Weight: 2.2g
Application: for Micro FPV brushless drone

5A 4 in 1 ESC: ( Bottom )
Item Name: Teenypro 4 In 1 5A BLHeli_S ESC
Mode: Teenypro
Input Voltage: 1-2S Lipo
Con. Current: 5A
Peak Current: 7A (5S)
Firmware: BLHELI_S
Processor: SILABS EFM8BB21F16G
BEC: NO
Size: 23x27mm (includes solder pad)
Mounting Holes: 16x16mm (M2)
Weight: 2.1g
Firmware Target: BLHeli_S  S_H_50_REV16_7
– Support Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM

Features:
– Support programmable LED_strip
– Support BLheli/BLHELI_S suite Pass-through ready
– Support PPM, Oneshot125,Oneshot42,Multishot, Dshot150, Dshot300, Dshot600
– Default Dshot600
– Built-in voltage detection, alarm
– Built-in Betaflight-OSD
– Buzzer solder pin
– LED_STRIP connector

Setting Notice:

– SBUS/IBUS/DSMX receiver please configure RX1 (UART1) as input, and enable Serial_RX
– PPM receiver don’t need to enable Serial_RX
– DSM/DSM2/DSMX receiver power from 3.3V
– SBUS and PPM receiver power from 5V

Package Included:
1x F4 Flight Controller Board
1x 5A 4 In 1 ESC
1x 6P Cable
8x M2*5+5 Nylon column
8x M2 Nuts
8x M2 Screw
