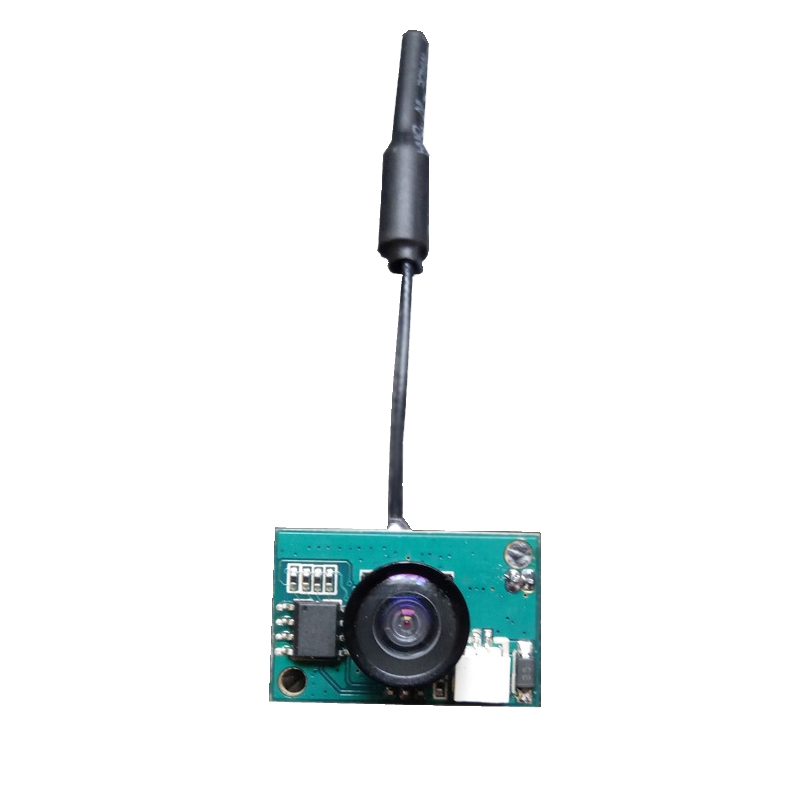

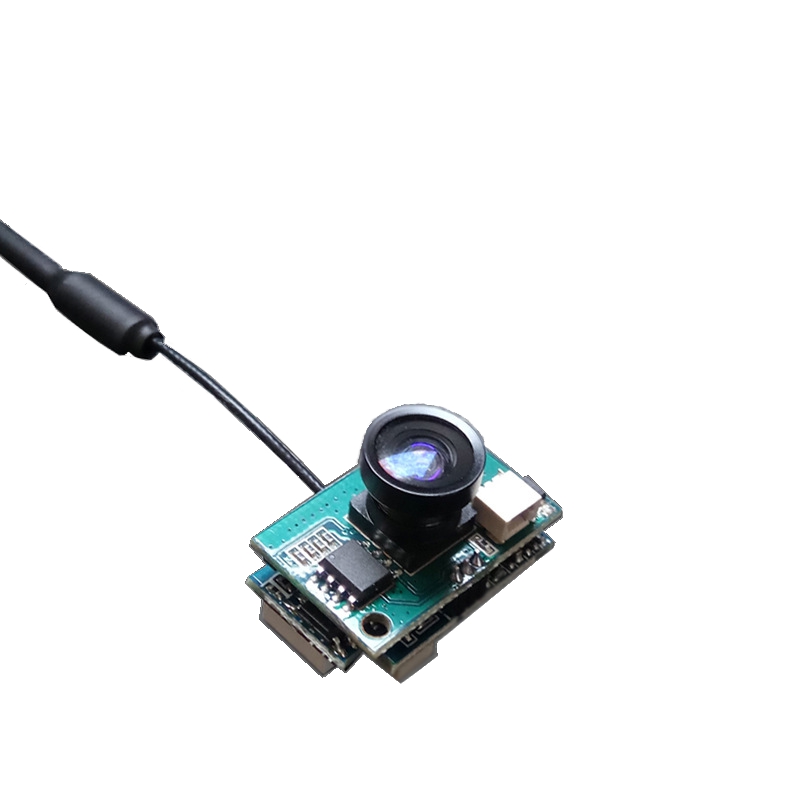

1200TVL 120 Degree 1/4 CMOS 5.8G 48CH 25mW/200mW Switchable AIO Mini FPV Camera For Micro Racer Quad
Description :
Item Name : 5.8G Mini Camera
Size : 15mm*23mm*9.5mm
Weight : 4.8g
Parameter :
Sensor : 1/4'' CMOS 1MP HD Sensor
Resolution :1280TVL HD
FPV : 120°
DFOV : 150°
Format : PAL/NTSC switchable
Effective Pixcel : 1280H*1024V
LUX : 0.001LUX/F1.2
Horizontal Resolution : 1000TVL(B/W 1200TVL)
Contrast : Adjustable
Connector : JST-SH 1.27mm 2P
Connector : JST-SH 1.27mm 2P
Specification :
Frequency : 5.8G
Channel : 48CH(6 bands *8 channels), Bands:A-F,Channel:1-8
Power : 25mW/200mW adjustable
Working Voltage : 5.5V-2.5V
Working Current : 350mA-550mA/5V
Working Temp. : -10℃+50℃ RH85%
Operation :
1. Button : Channel Button/Picture Switch
Display "B2" when it power on. Short press can switch channel;long press for 2s, can switch bands.
Has memory function of channel.
Long press for 5 second, picture upside down
2. Switch 2 : RF Power Level
ON : 25mW
OFF : 200mW
3. Switch 1 : NTSC/PAL
ON : PAL
OFF : NTSC
Package Included :
1 x 5.8G 48CH 1200TVL Camera
