Description

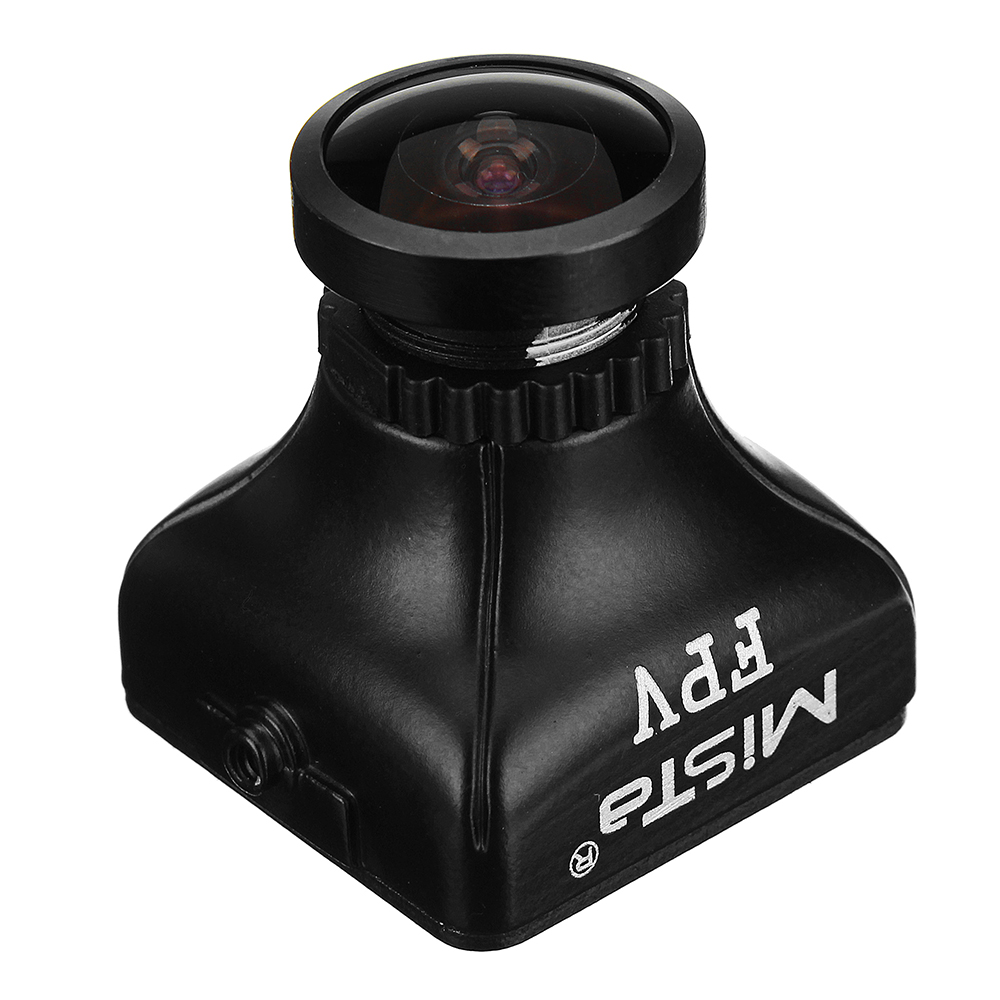

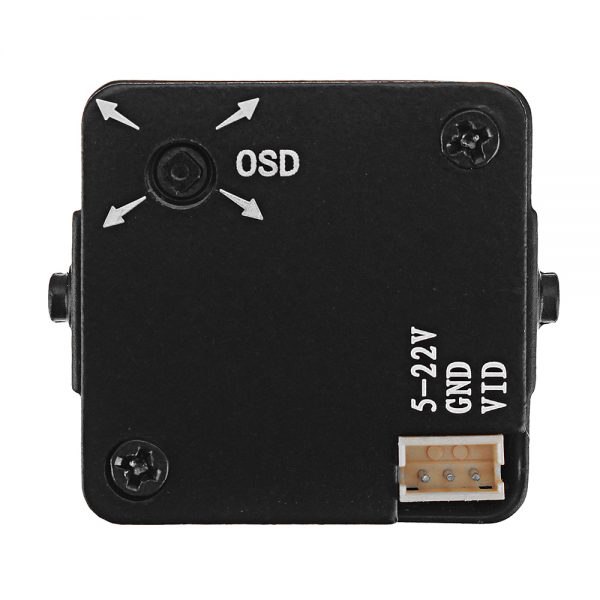

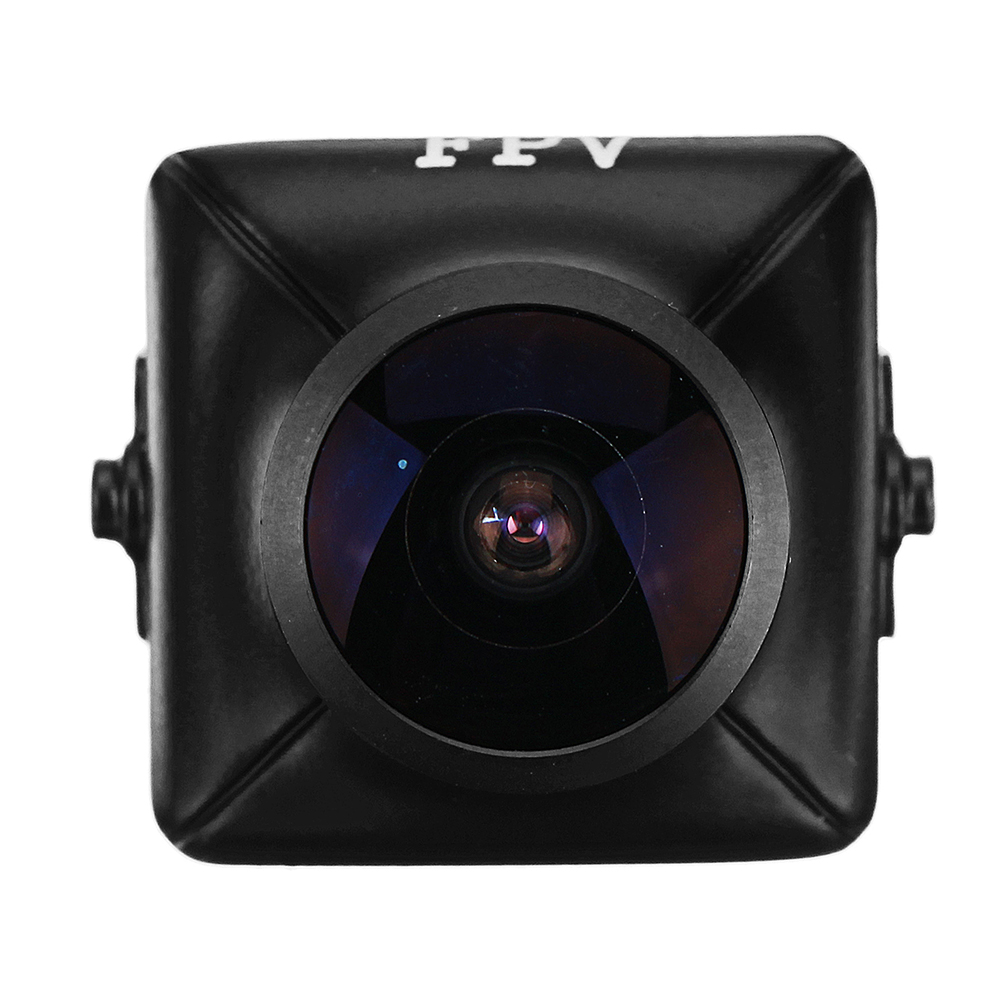

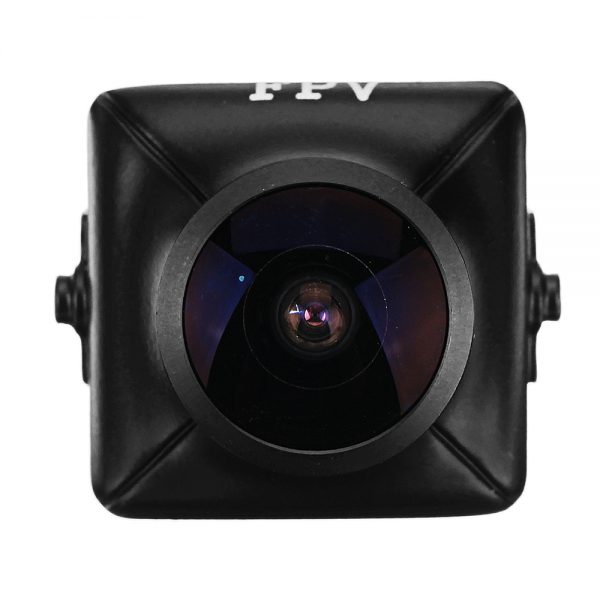

1/2.8 CCD 1000TVL 2.1mm/2.3mm 5MP Mini FPV Camera With OSD Button For RC Drone
Specifications:
Image sensor: 1/2.8 inch super HAD II CCD
Horizontal resolution: 1000TVL
Lens: 2.1MM 2.3MM
Signal system: PAL / NTSC ( OSD internal adjustable)
S/N ratio: more than 60dB ( AGC OFF )
Electronic shutter speed PAL: 1/50 – 100000, NTSC: 1/60 – 100000
Auto gain control ( AGC ): yes
Back light compensation ( BLC ): yes
Min illumination: 0.001 lux at 1.2F
WDR: D-WDR
DNR: 2DNR
Day / Night: Auto / Color / Black and White
Power: DC 4.7 – 24V
Package Included
1 x 1000tvl Mini FPV Camera

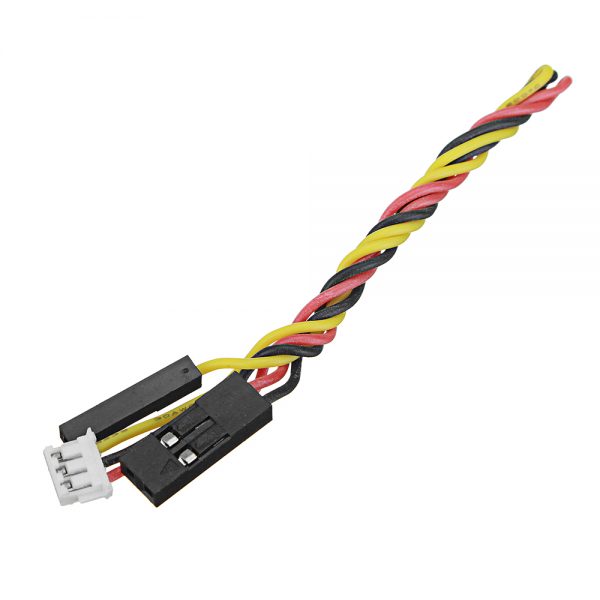

1 x JST-ZH 1.5mm to TJC8 3P Cable
1 x Bracket
1 x Screw Pack
1 x JST-ZH 1.5mm to TJC8 3P Cable
1 x Bracket
1 x Screw Pack
,
,
,
,
,
,
,
