Description

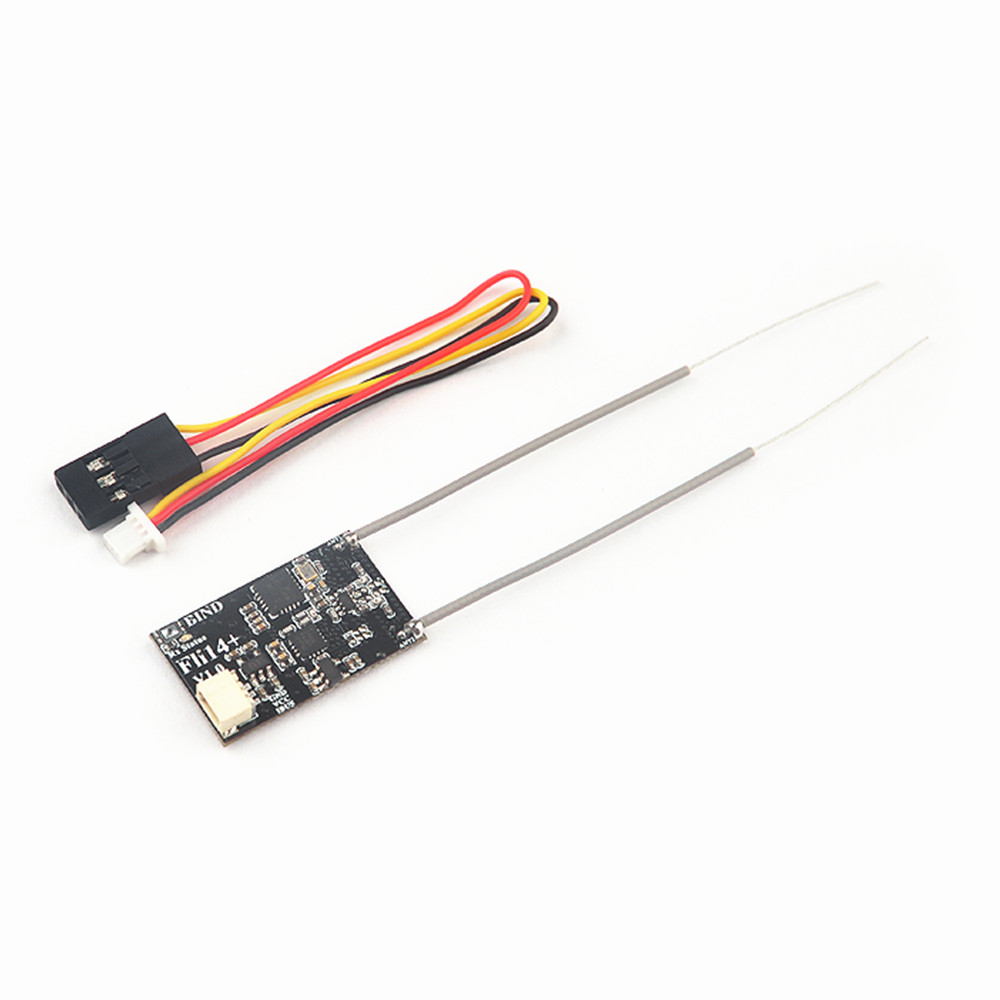

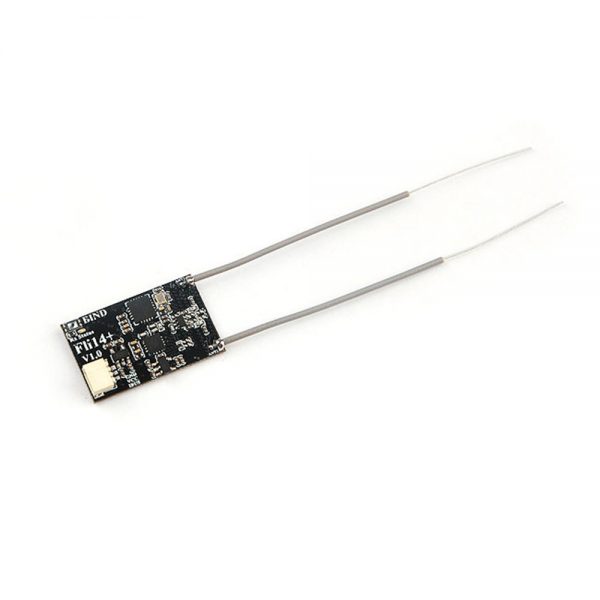

1.7g Fli14+14CH Receiver Compatible Flysky AFHDS-2A w/ RSSI Output for FS-i6 FS-i10 Turnigy I6S Radio Transmitter
Specification:
Model: Fli14+
Item Name: 2.4G 14CH Compatible Flysky AFHDS-2A Receiver
Channel: 14CH
Protocol: AFHDS-2A
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 70mm (Dual Antennas)
Input Voltage: 4-6.5V DC

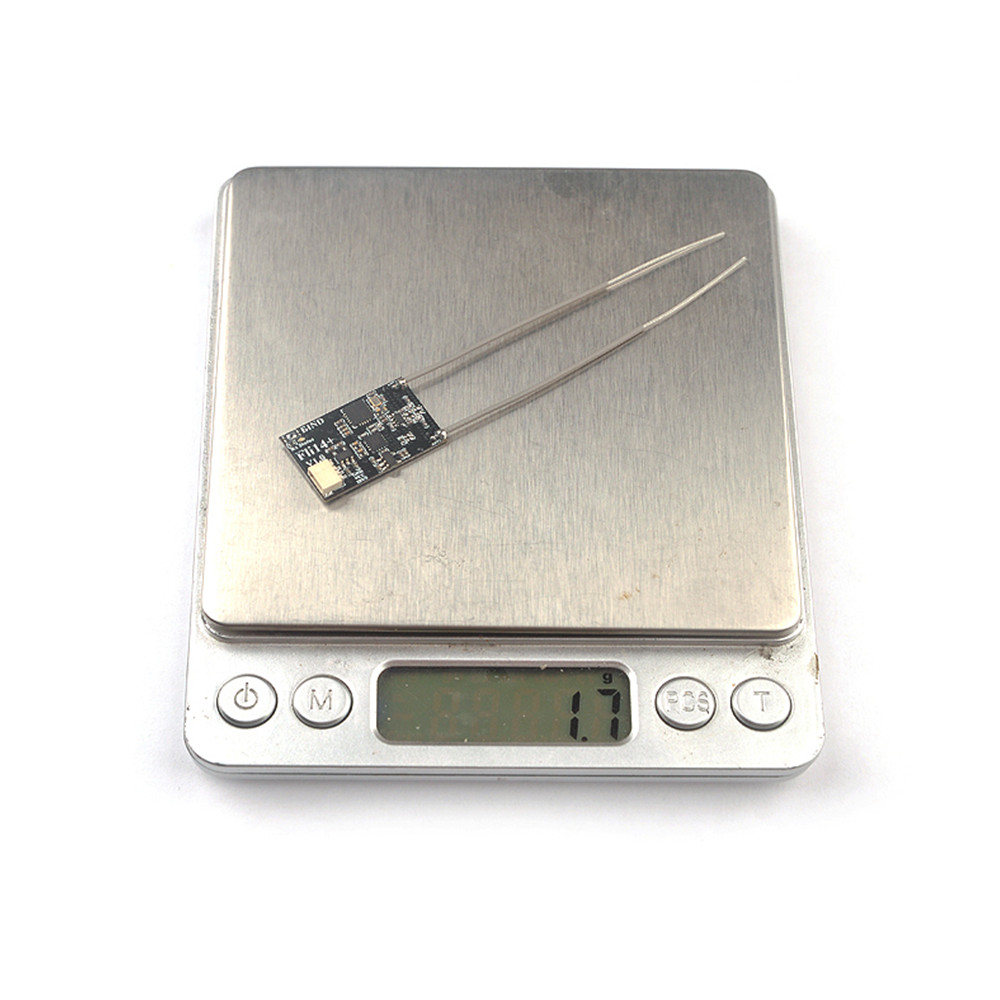

Weight: Only 1.7g

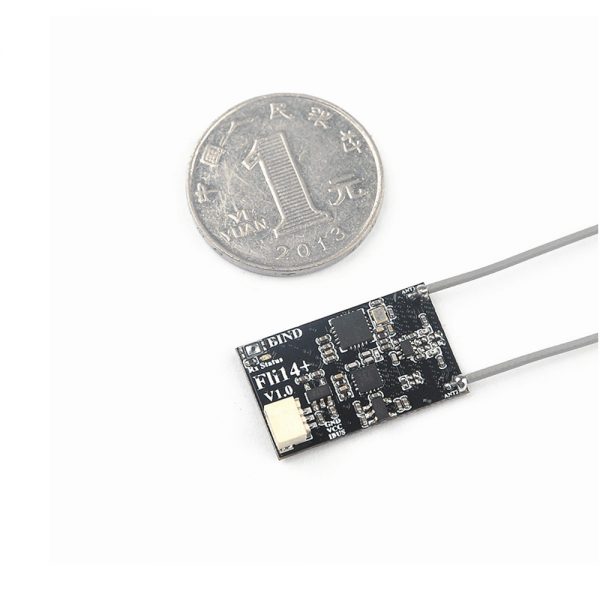

Size: 25x15x5mm
Color: Black
Signal Outpu: IBUS
RSSI Output: Channel14
No ground interference ( Transmitting and receiving 1 m from the ground): more than 500m
Features:
– Customized for Betaflight
– RSSI Display Via OSD without any hack compatible with all Flysky AFHDS-2A protocol transmitter
– Telemetry Output: RSSI & RX Battery
– Support RSSI Via Channel14 (Aux10 in Betaflight)
– Compatible with FS-i4, FS-i6, FS-I6X, FS-i6S, FS-i10, FS-iT4S, Eachine I6,Turnigy I6S,Turnigy Evolution
– Best for Racing Drone
– Compatible with FS-i4, FS-i6, FS-I6X, FS-i6S, FS-i10, FS-iT4S, Eachine I6,Turnigy I6S,Turnigy Evolution
– Best for Racing Drone
Binding procedure:
1. Power for the Fli14+ Receiver while press and holding the bind button
2. The LED will blinking fast , which indicates the receiver is in binding mode
3. Get the Flysky transmitter into binding mode and the LED on the receiver will getting to be solid and this indicates binding successfully
Package Included:
1x Fli14+ Receiver
