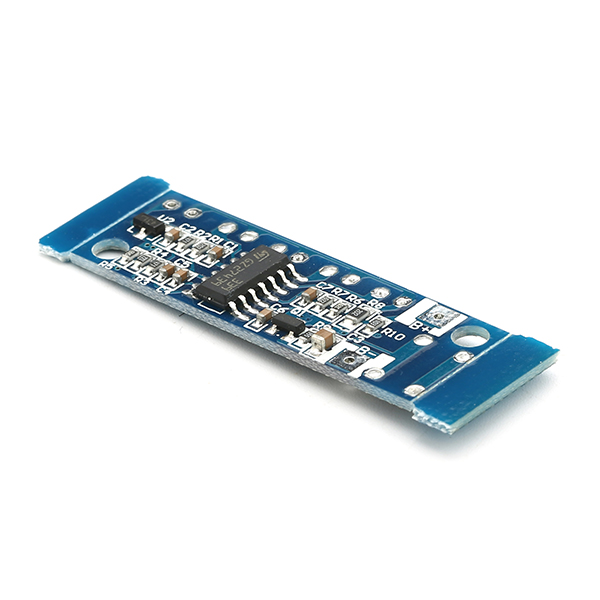

1-5S Lipo Battery Voltage Display Indicator Board
Customer Review:
Post By DannyRC:
Post By moggiex:
Description:
This item is used to test the single cell lipo battery voltage,just need to connect the battery positive / negative electrode to the B+ / B- of the board. The total capacity of the battery is divided into four segments by the 4 LED indicators. Touch the button,the corresponding battery indicator is lit,and goes off after 3 seconds.
Specification:
Item Name: Lipo Battery Voltage Display
Dimension: 40×13.5×3.5mm
Usage: Used to test the 1/2/3/4/5S lipo battery.
Model Type: (Optional)
1S: Can test 3.6V-4.2V lipo battery voltage
2S: 7.4V-8.4V lipo battery voltage
3S; 11.1V-12.6V lipo battery voltage
4S: 14.8V-16.8V lipo battery voltage
5S: 18V-21V lipo battery voltage
How To Distinguish Between 1S – 5S:
The difference lies in the resistance of the R1 resistor:
1S – 510
2S – 201
Package Included:
1x Lipo battery voltage test board
,
,
,
,
