Description
Specification:
Transmission frequency: 1.280GHz 1.300GHz 1.320GHz 1.340GHz
Transmission power: 2W
Operating voltage/current: 12V/720MA
Image signal: NTSC/PAL, 1Vp-p (2KOnm)
Transmitter size: 7.3X4.3X1.1cm (not include connector);
Transmitter weight: 80g (not include connector)

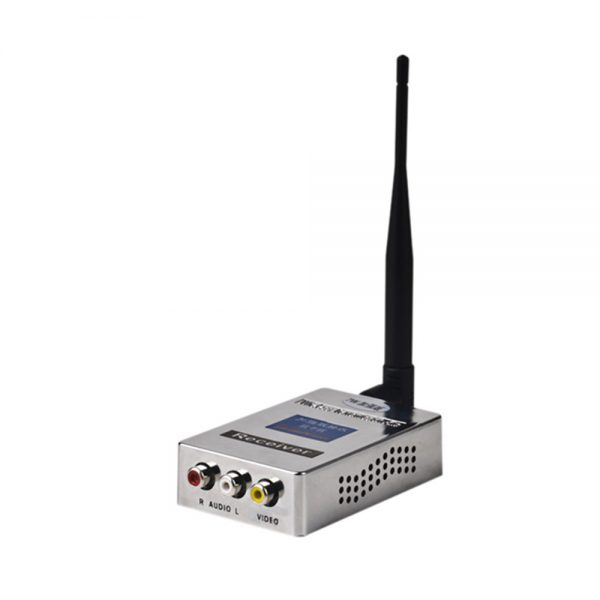

Receiver size: 10.6X6X2.6cm (including antenna connector and socket connector)
Supporting antenna: 5 dBi Length: 17cm
Weight: 500g
Features:
1. wireless transmission: no need to set up communication cable
2. image, audio synchronization transmission, color black and white compatible
3. small size, light weight, easy to carry, easy to install
4. rapid and timely response, real-time transmission and receiving
5. the use of frequency modulation, anti-interference ability, good image quality
6. high integration, stable and reliable work, transmission distance
7. Large power margin and small current consumption

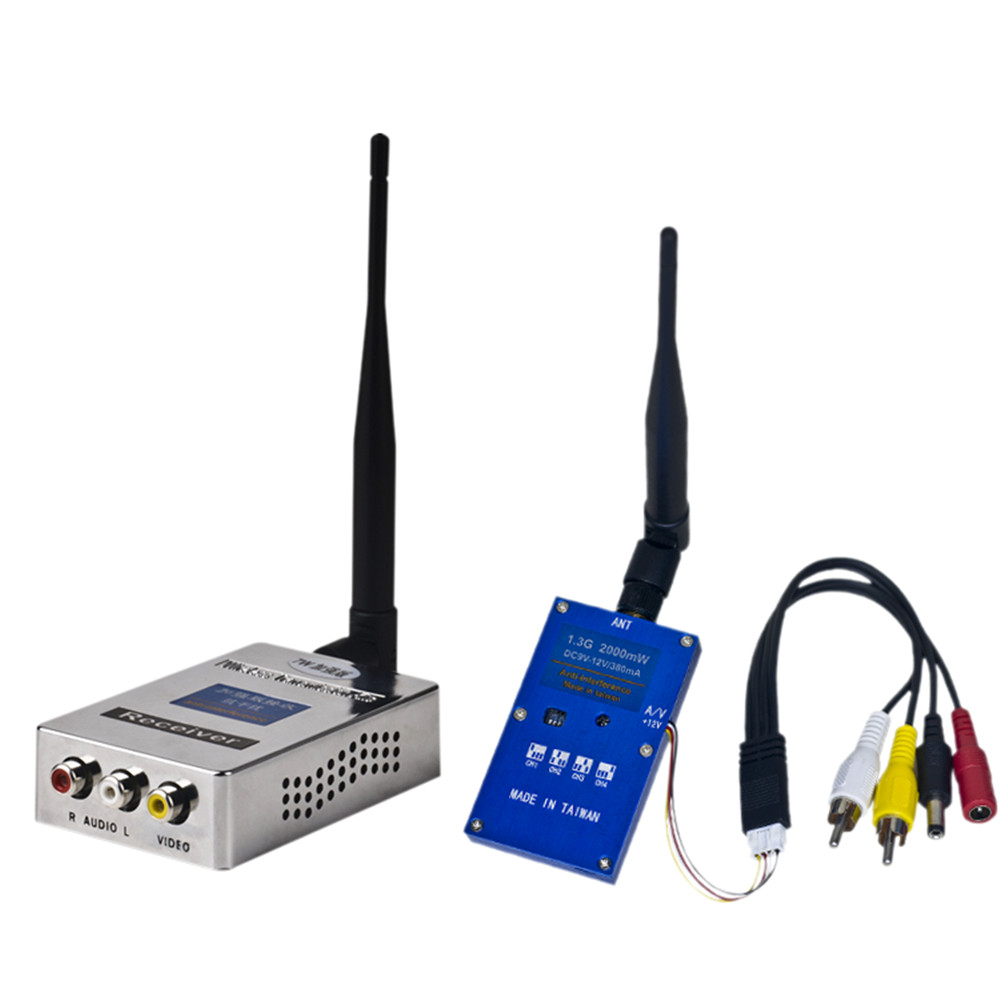

Packaeg included:
1 x Transmitter
1 x Receiver
2 x Antenna
1 x AV cable
2 x Power supply
1 x Manual
