Description
0.8g Full Speed DSMX Nano V2 2.4G DSMX DSM2 Compatible Mini Receiver for FPV RC Drone
Specification:
Brand name: full speed
Item Name: DSMX Nano V2
Voltage: 5V

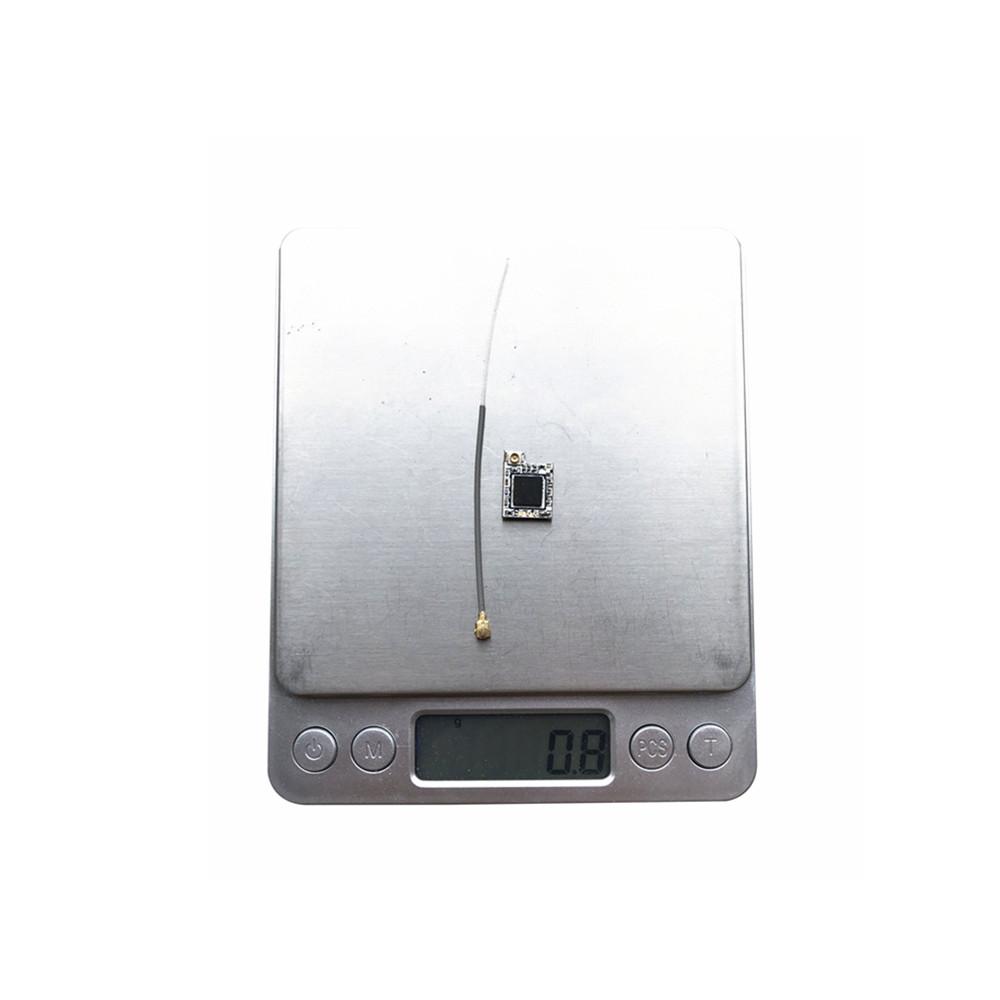

Product weight: 0.8g
Signal system: DSMX( Support DSM2)automatic retrieval
Channel: 7CH
Satelite output
Band: 2.4GHz
Distance: 300M+
Product size: 14.5 x 10.5 x 2.5mm
Binding (DSMX):
1. Connet the receiver to FC and run the BF.
2. Type: set spektrum_sat_bind=9 in CLI and save.
3. Disconnect the power. The light on the receiver will flash quickly which means
it's binding. Set spektrum_sat_bind=0 and save
4. Turn on the radio and select bind mode. Wait a moment.It
means bind successfully if the light on receiver keeps brighting.
5. After binding. Type: set spektrum_sat_bind=0 and save.
Package included:
1x full speed DSMX nano V2 receiver
